Chapter 11 Writing Data in Oracle
11-8 Revision March, 2014

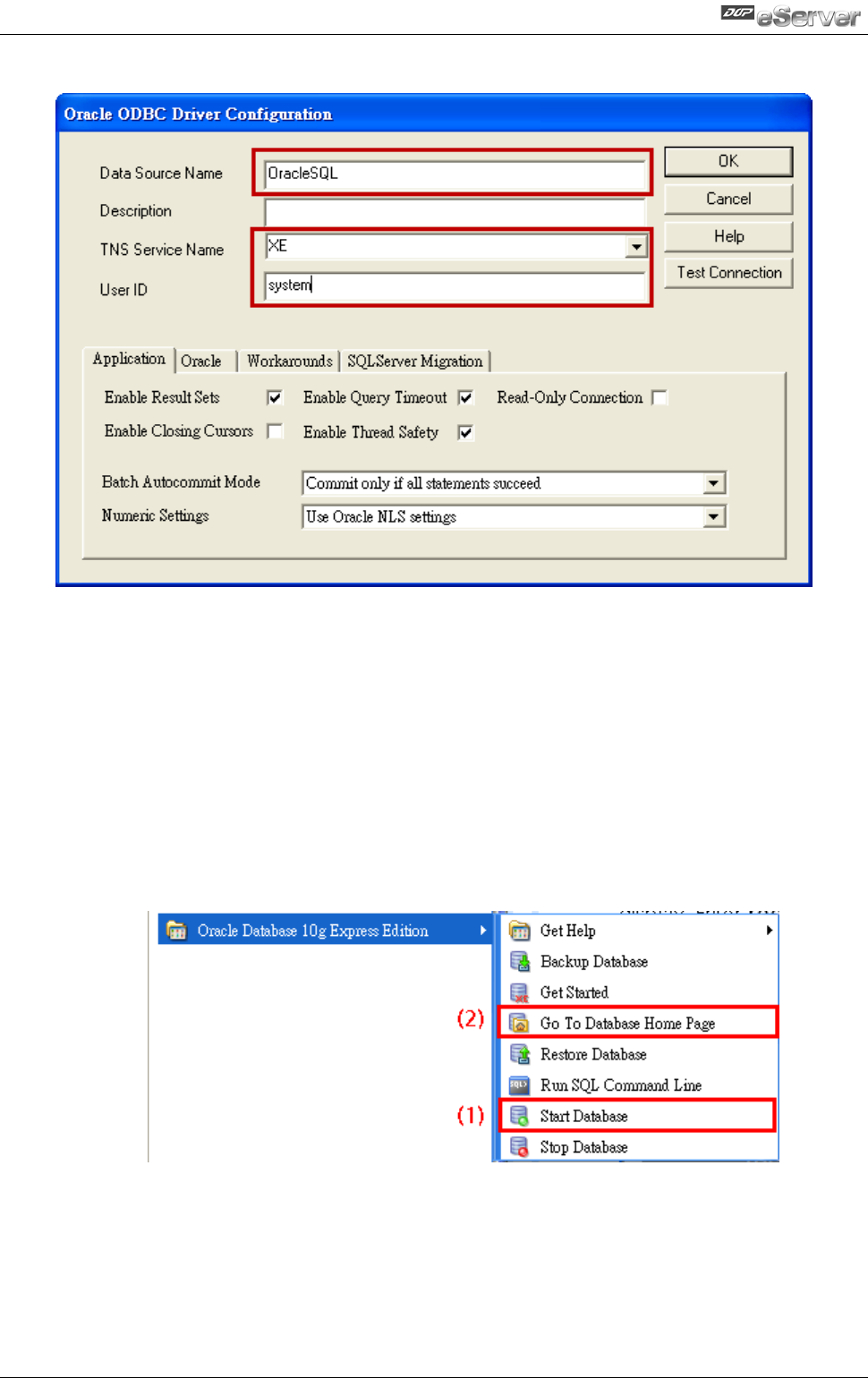

Now complete Oracle ODBC Driver Configuration as mentioned in the below dialog.
Data Source Name: Enter ODBC data source name or enter the name of the data
source you want to access.
Description: Enter some text to identify the connection.
TNS Service Name: Must select XE in the TNS Service Name drop down list.
User ID: Enter user name system to use for this connection. This User ID is also the
Username of Oracle database (see the figure below).
3. Create Database and Table
(1) Start Database (see the figure below)
(2) Go to Database homepage.
