12.1.2 Register Setting
This step is used to set the register addresses of the database. There are two modes,
Import and Export available for selection. After selecting the desired mode, choose Fixed
or Variance from the drop-down list and complete the settings.

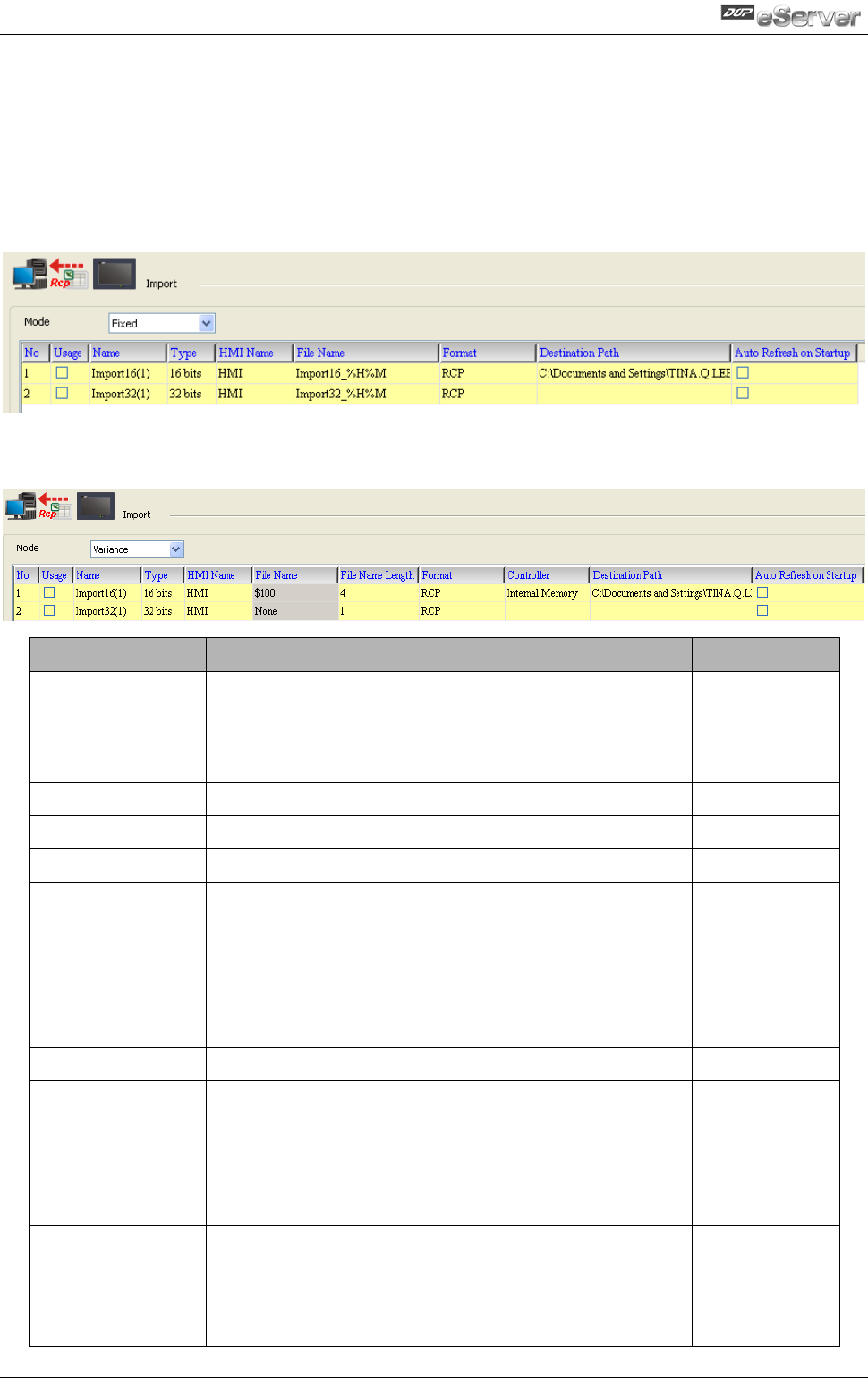

Import - Fixed
Import - Variance
Setting Item
Description
Remark
No.
Excel Sheet index which the sampling data will be
written.
Unchangeable
Usage
If the users want to select 16-bit recipe, enable
this option by checking the check box.
Name
Recipe display name
Type
Recipe Bit type
Unchangeable
HMI Name
Name of connecting HMI
Unchangeable
File Name
1. When Fixed is selected:
It is the file name of the imported file which
could be changed and user-defined.
2. When Variance is selected:
It is the register address of a certain trigger
element.
Note: The register only could be set to Word.
Format
Provide user could save recipe as RCP and CSV file.
File Name
Length
Number of characters by referring the user-
defined file name.
Controller
Connecting controller
Unchangeable
Destination Path
Destination location where the imported file is
located.
Auto Refresh on
Startup
Auto Refresh on Startup function for user could
select when execute recipe at first. No matter what
the condition set to Trigger or Const, if check auto
refresh on start up function then eServer will
execute Import or Export recipe at first time.
