Chapter 13 Recipe Access Example
Revision March, 2014 13-5

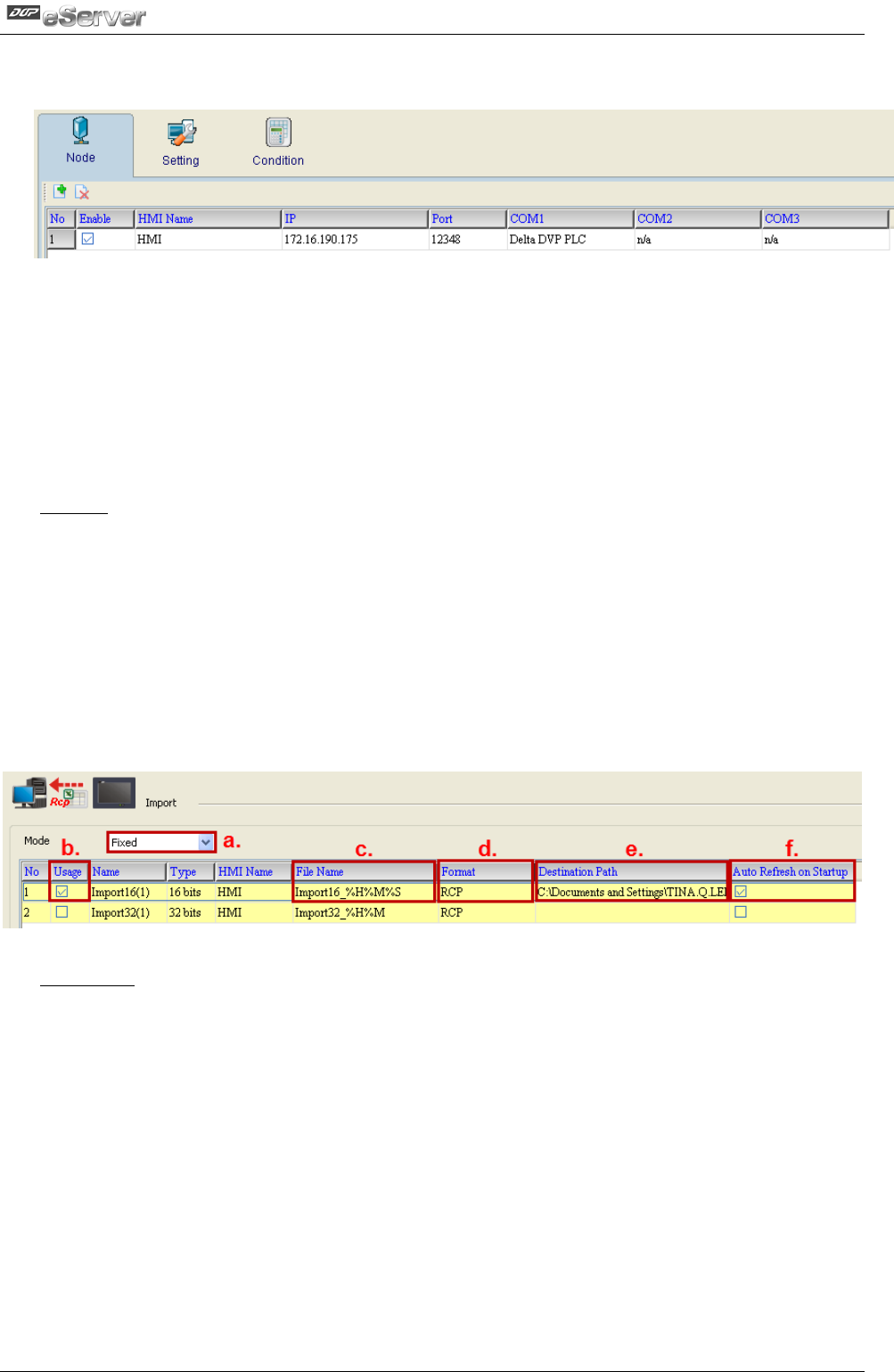

Input correct password then eServer will get HMI data like HMI Name, IP address as below.
13.1.3 Setting and Condition - Import
When the node is set correctly, click Setting and complete the settings next. There are
two modes, Import and Export available for selection. Each mode provides two options,
Fixed or Variance from the drop-down list for use.
Import – Fixed
Setting
a. Select Fixed.
:
b. Check the check box to use 16-bit recipe as the example.
c. User-define the File Name as Import16_%H%M%S.
d. Select Format to RCP.
e. Set Destination Path (destination location) where the imported file is located.
f. Enable Auto Refresh on Startup
Condition
As for the method of sampling condition, select Const (execute sampling repeatedly in
a certain span of time).
:
a. Select Const.
b. Set Polling Cycle (sampling cycle) to 5s (default setting value).
