Chapter 13 Recipe Access Example
13-10 Revision March, 2014

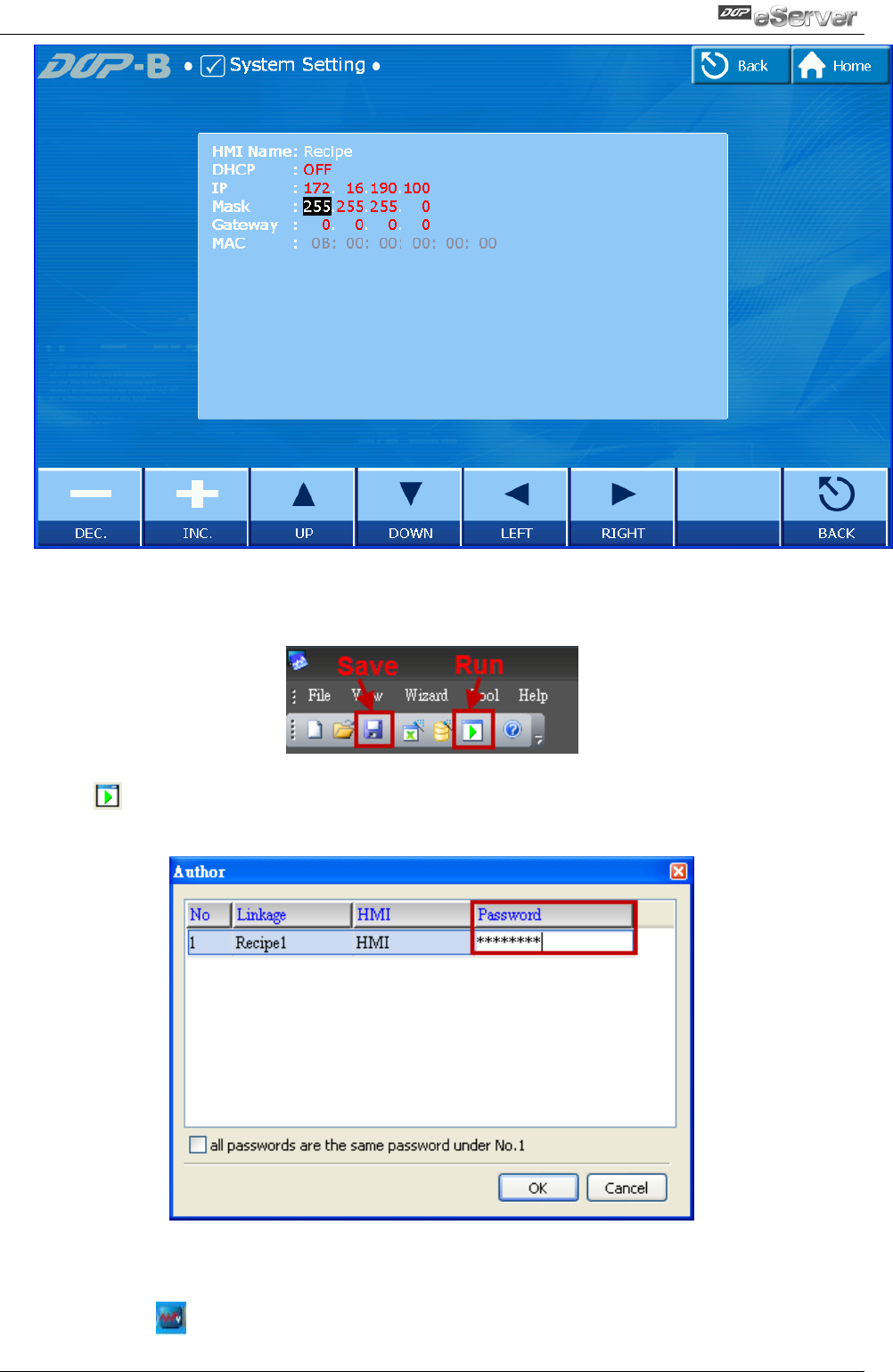

After networking settings are set correctly and successfully, return to eServer, save the
file first and then run the recipe data. Please see the figure below:
Press icon. The following dialog box will pop-up and ask the users to enter the
password.
Please enter 12345678 in the filed of the password at the first time (12345678 is the
default setting value and the users can change it freely). After the correct password is
entered, the
icon will display on the tool bar at the left-bottom corner.
