Chapter 13 Recipe Access Example
13-12 Revision March, 2014

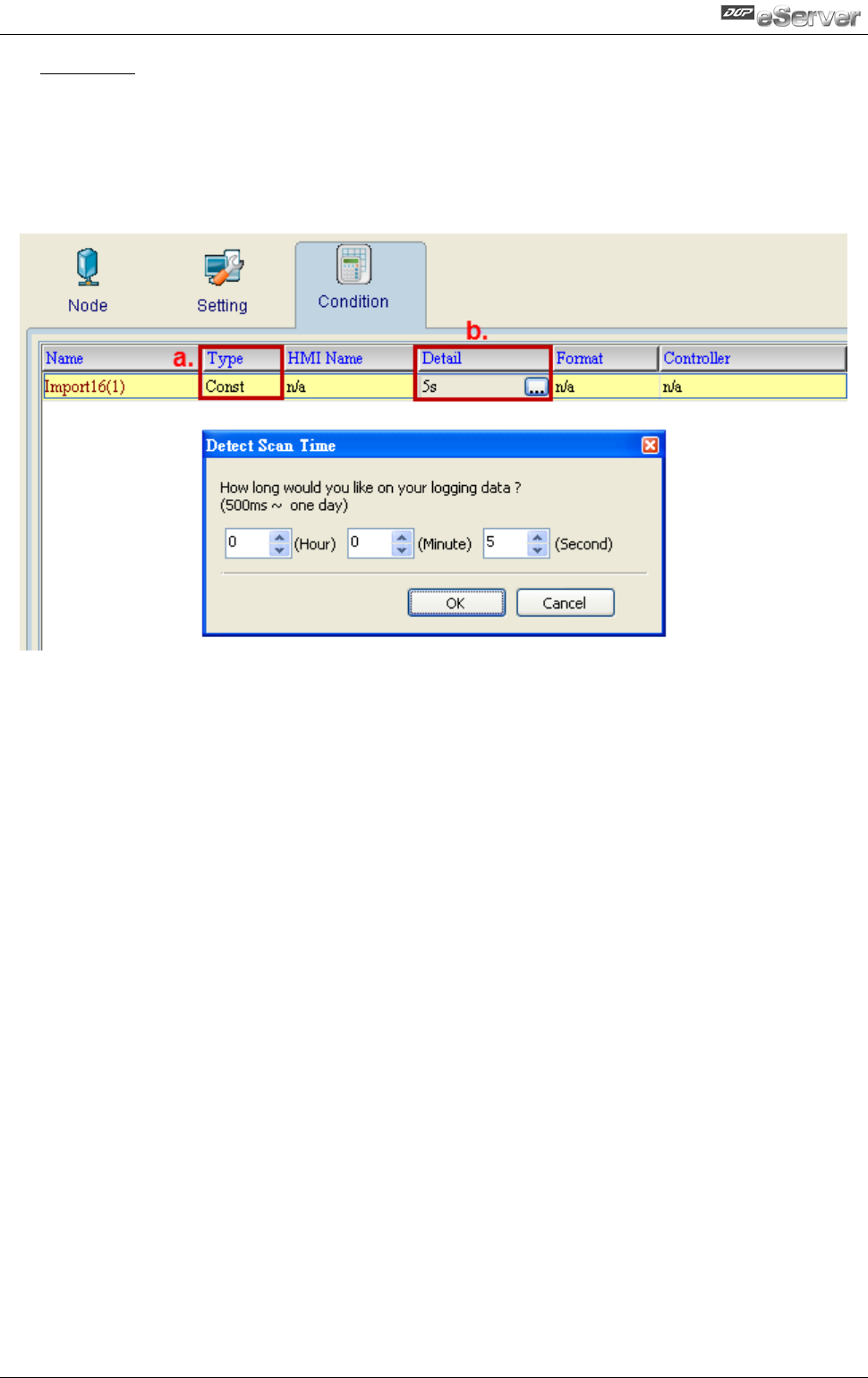

Condition
As for the method of sampling condition, select Const (execute sampling repeatedly in
a certain span of time).
:
a. Select Const.
b. Set Polling Cycle (sampling cycle) to 5s (default setting value).
After completing all the settings, please make sure that the IP address numbers of subnet
masks of the PC (172.16.190.1) and HMI (172.16.190.100) are the same; otherwise, HMI
may not be displayed in the list when finding node.
