Chapter 13 Recipe Access Example
Revision March, 2014 13-19
13.1.4 Setting and Condition - Export

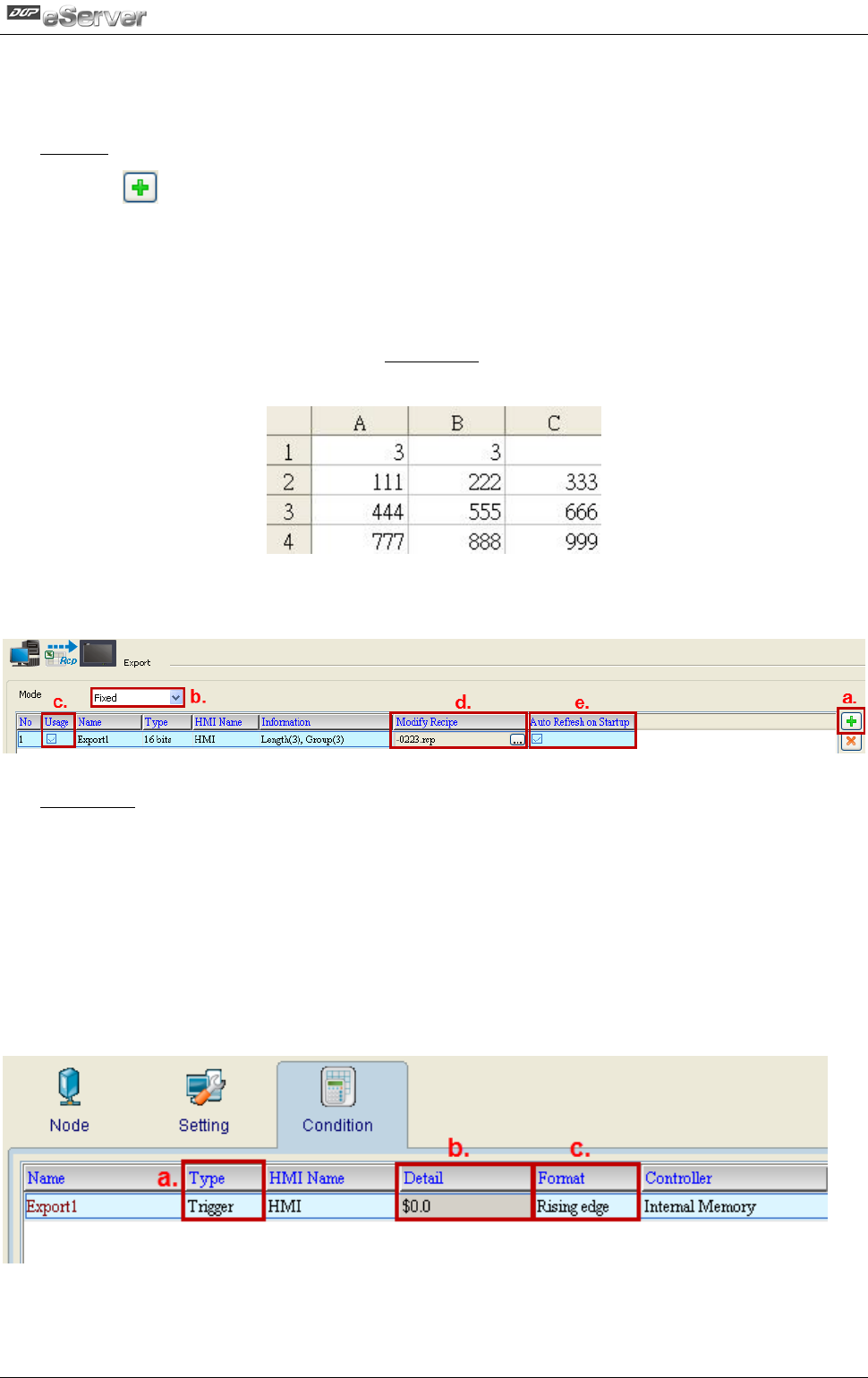

Export – Fixed
Setting
a. Press
:
to add file name as -0223.rcp of export file.
b. Select Fixed.
c. Check the check box to use 16-bit recipe as the example.
d. Set Destination Path (destination location) where the imported file is located.
Please note: the value of the selected
-0223.rcp file (item d.) is the downloading value
when the element is triggered on HMI.
e. Enable Auto Refresh on Startup.
Condition
As for the method of sampling condition, select Trigger (Execute sampling when the
trigger conditions are satisfied).
:
a. Select Trigger.
b. Set Address to the register address of the trigger element. (In this case the trigger
element is a maintained button element and its address is set to $0.0)
c. Select Format as Rising edge.
