Chapter 13 Recipe Access Example
13-28 Revision March, 2014
Condition

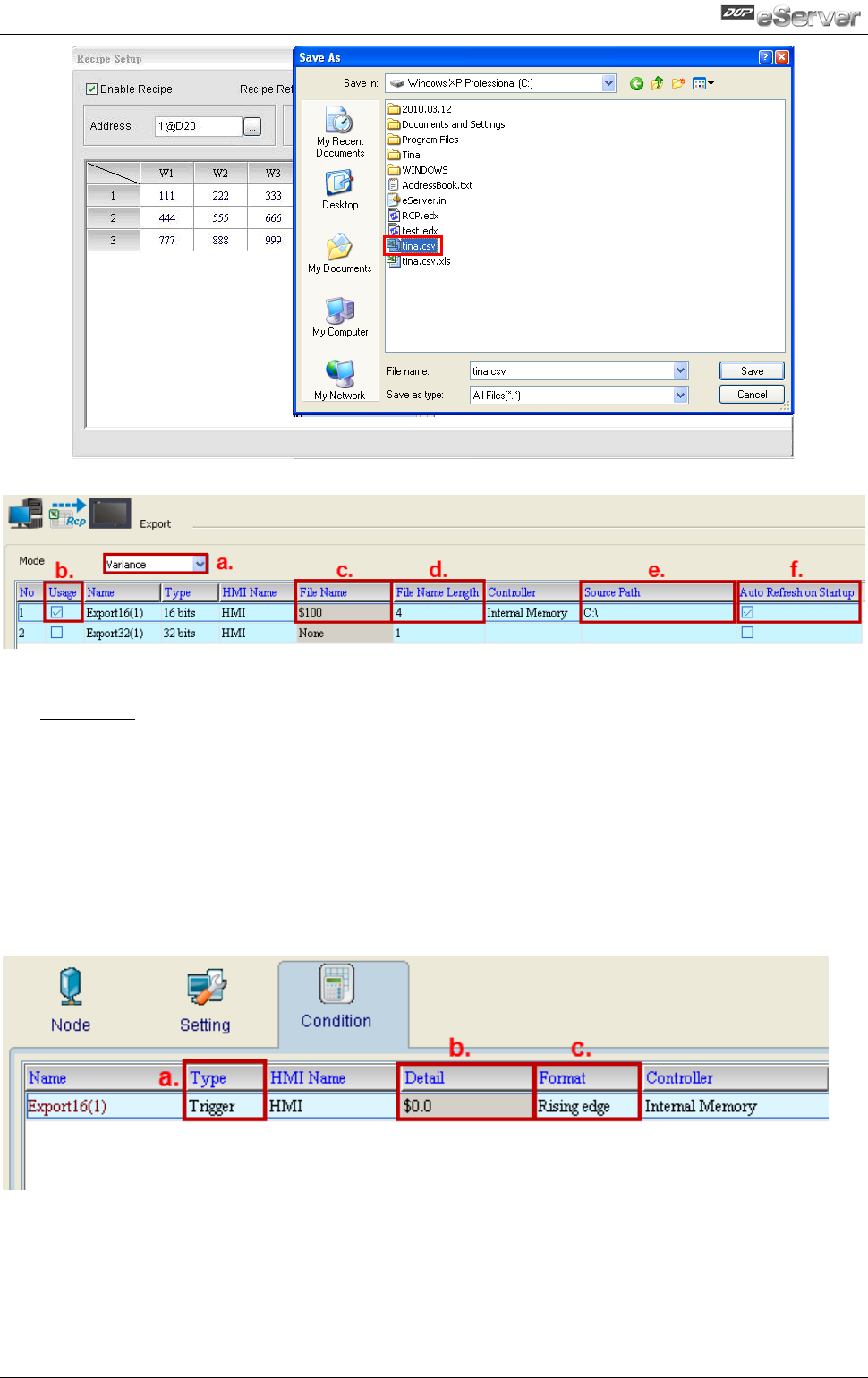

As for the method of sampling condition, select Trigger (Execute sampling when the
trigger conditions are satisfied).
:
a. Select Trigger.
b. Set Address to the register address of the trigger element. (In this case the trigger
element is a maintained button element and its address is set to $0.0)
c. Select Format as Rising edge.
After completing all the settings, please make sure that the IP address numbers of subnet
masks of the PC (172.16.190.1) and HMI (172.16.190.100) are the same; otherwise, HMI
may not be displayed in the list when finding node.
