Chapter 4 Excel Sampling Setting
4-6 Revision March, 2014

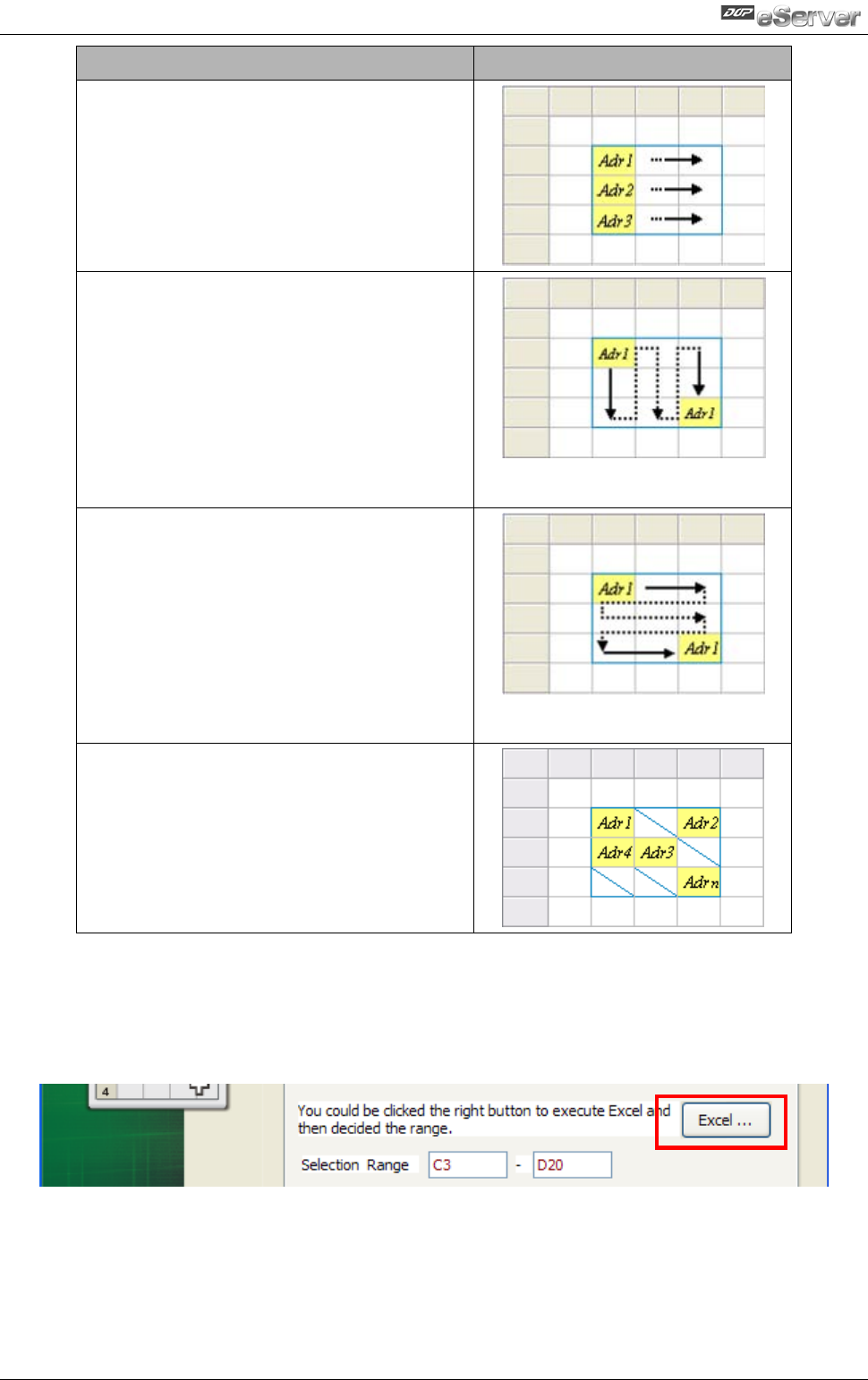

Sampling Direction
Diagram
Multi-Horizontal:
When this option is selected, multiple
numbers of different register data could
be logged into each horizontal row in the
selecting area simultaneously.
Single-Vertical:
When this option is selected, only one
number of register data could be logged
into one cell for one time. The sampling
operation is in vertical direction. The
sampling operation of the second
vertical column will not start unless the
sampling operation of the first vertical
column is done. Please refer to the right
diagram.
Single-Horizontal:
When this option is selected, only one
number of register data could be logged
into one cell for one time. The sampling
operation is in horizontal direction. The
sampling operation of the second
horizontal row will not start unless the
sampling operation of the first
horizontal row is done. Please refer to
the right diagram.
Anywhere:
When this option is selected, the register
data could be logged into any desired
cell.
2. Selection Range
Press Excel button and the system will open the editing Excel template sheet
immediately.
