Chapter 4 Excel Sampling Setting
Revision March, 2014 4-7

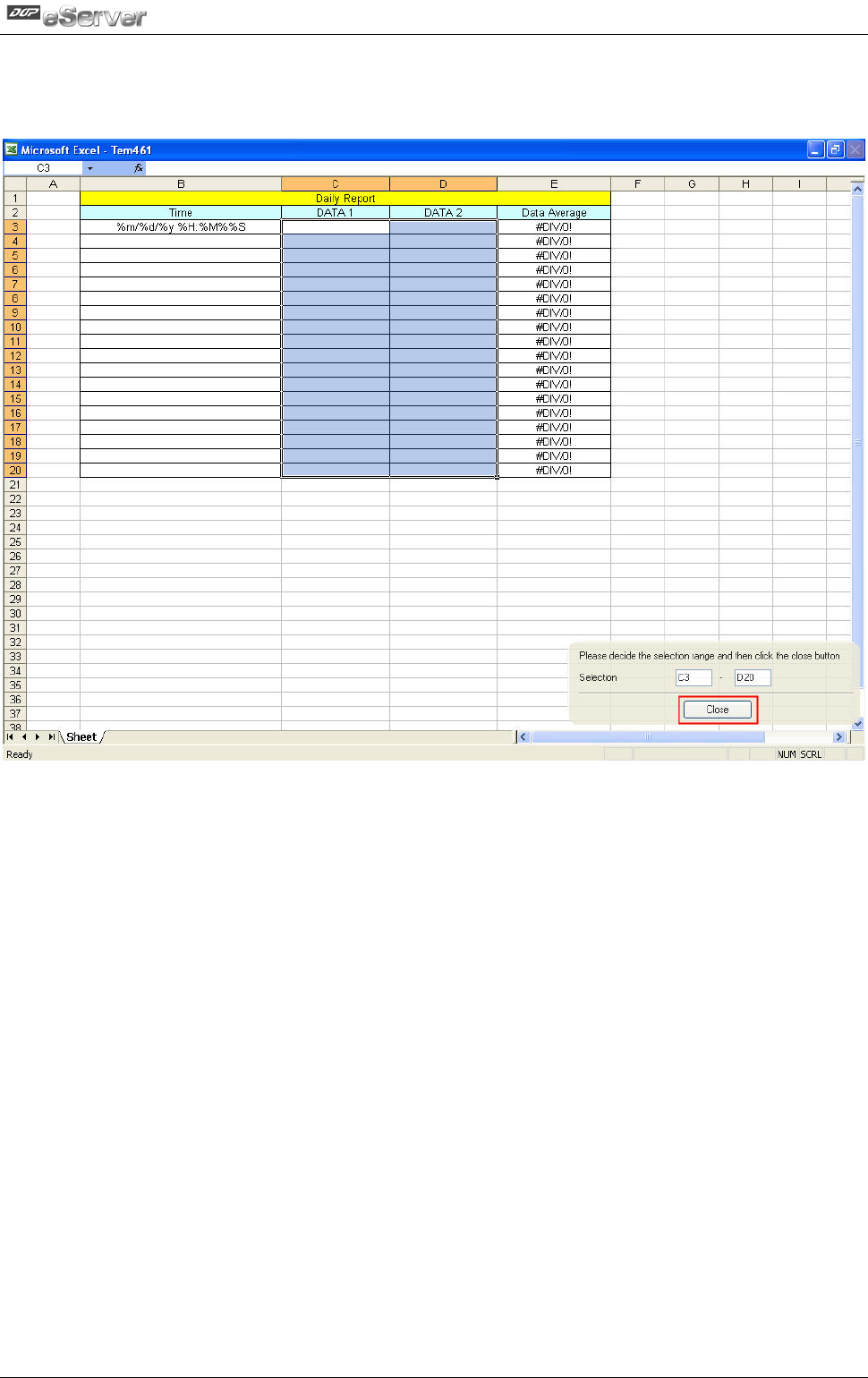

In Excel template sheet, use the mouse to decide the selection range. After the desired
range is selected, press Close button to finish.
3. Stamp Time and Date
When this option is selected, the sampling time and date will be written as well
automatically when the sampling data is recorded. The written position will be
different depending on the setting sampling direction. Generally, the written position
will be at the previous column or row before the selection range. However, if the
following three conditions occur, the function of Stamp Time and Date will be disabled.
a. When the sampling direction is vertical and the selection range includes column
A (the first column).
b. When the sampling direction is horizontal and the selection range includes row
1 (the first row).
c. When the sampling direction is anywhere.
