Chapter 6 ODBC Sampling Setting
Revision March, 2014 6-9
Polling Cycle (Sampling Cycle): It is used to determine how long the sampling process
is repeated. The time unit is ms.

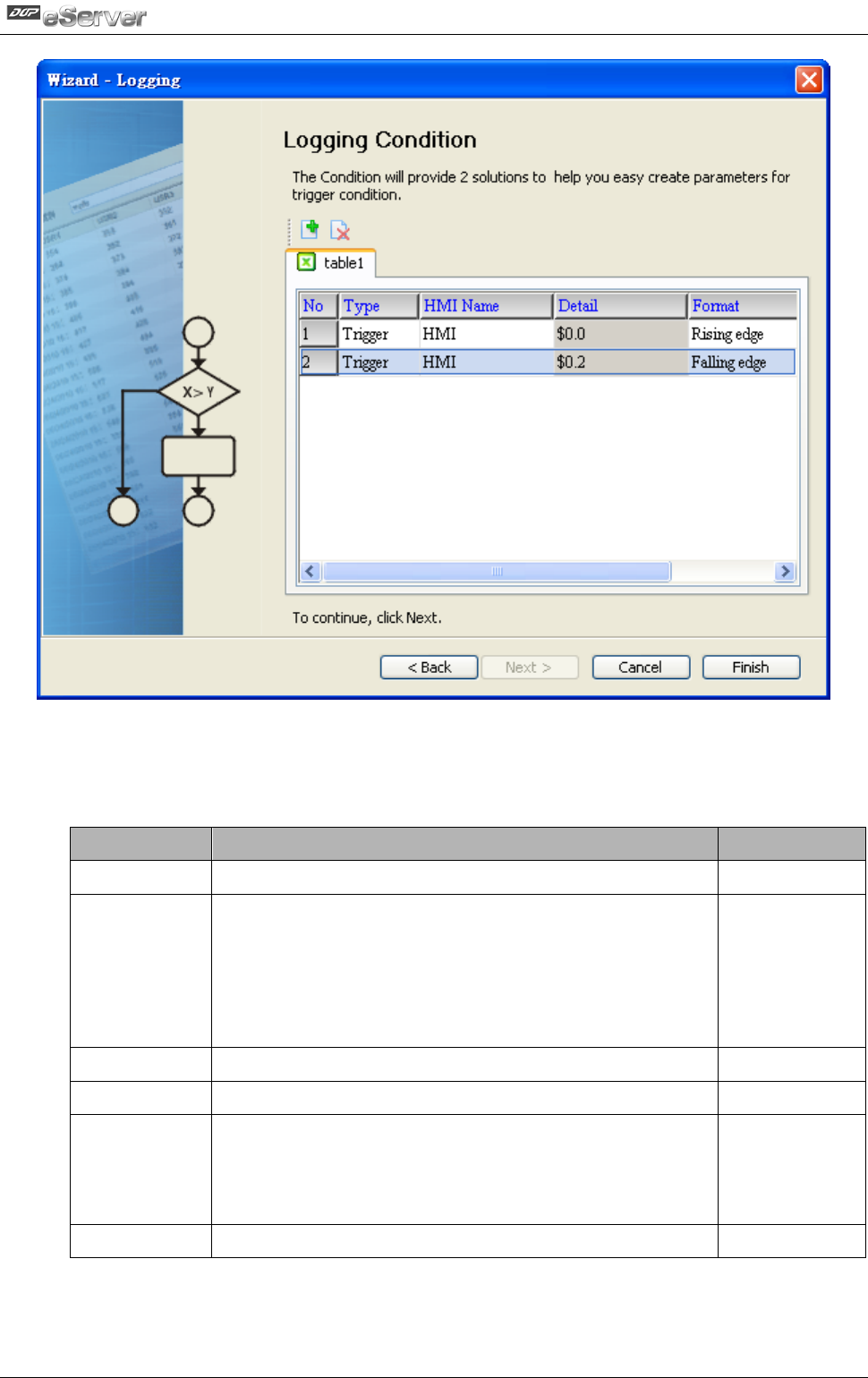

Logging Condition:
Setting Item
Description
Remark
No.
Condition number
Unchangeable
Type
Sampling type. There are two kinds of options for
selection: Const and Trigger.
Const: Execute sampling repeatedly in a certain span
of time.
Trigger: Execute sampling when the trigger
conditions are satisfied.
HMI Name
Name of connecting HMI
Detail
Register Address
Format
1. When the register address is set to Bit, the
selectable options are:
A. Rising edge: Triggered by rising-edge
B.
Falling edge Triggered by falling-edge
Controller
Connecting controller
Unchangeable
