Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 2-89
Fig. 2.8.40
32 bits Recipe Example

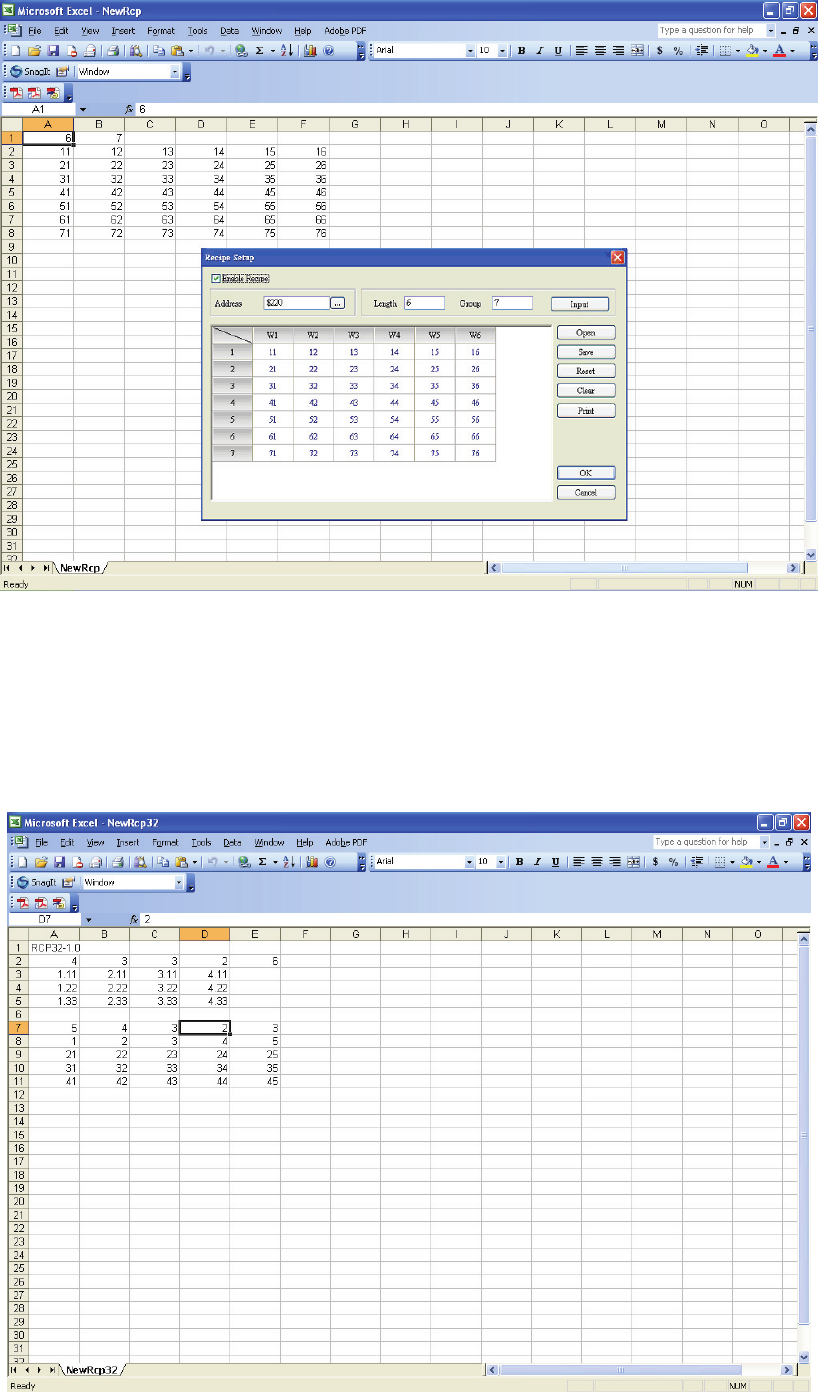

The layout of its csv file is shown as Fig. 2.8.41 below. The first row shows RCP32-1.0. This is the
version of this 32 bits recipe and the user should not change it.
Fig. 2.8.41
