Revision Apr. 30th, 2007, 2007PDD23000002 2-1
Chapter 2 Creating and Editing Screens
2.1 ScrEdit (Screen Editor) Setup
In this chapter, it will introduce general functions of Screen Editor with Windows. The user can use it to
design what he wants. Detail information for each function will be discussed in following chapters.
Minimum System Requirement
Below are the system requirements to comply with the operation environment of ScrEdit:
Item System Requirement
CPU Pentium III, 500MHz or greater is recommended
Memory 256MB and above is recommended
Hard Disk Capacity: 400MB and above
Monitor
Support resolution: 800
×
600 or higher full-color display.
Printer Printer compatible with Windows® 2000 & Windows® XP
Operation System Windows® 2000 & Windows® XP
Software installation
The user can download the Screen Editor, the program editor of Delta HMI product via the link below:
http://www.delta.com.tw/product/em/hmi/hmi_software.asp
.
To start the Delta HMI ScrEdit setup, please refer to the following steps:

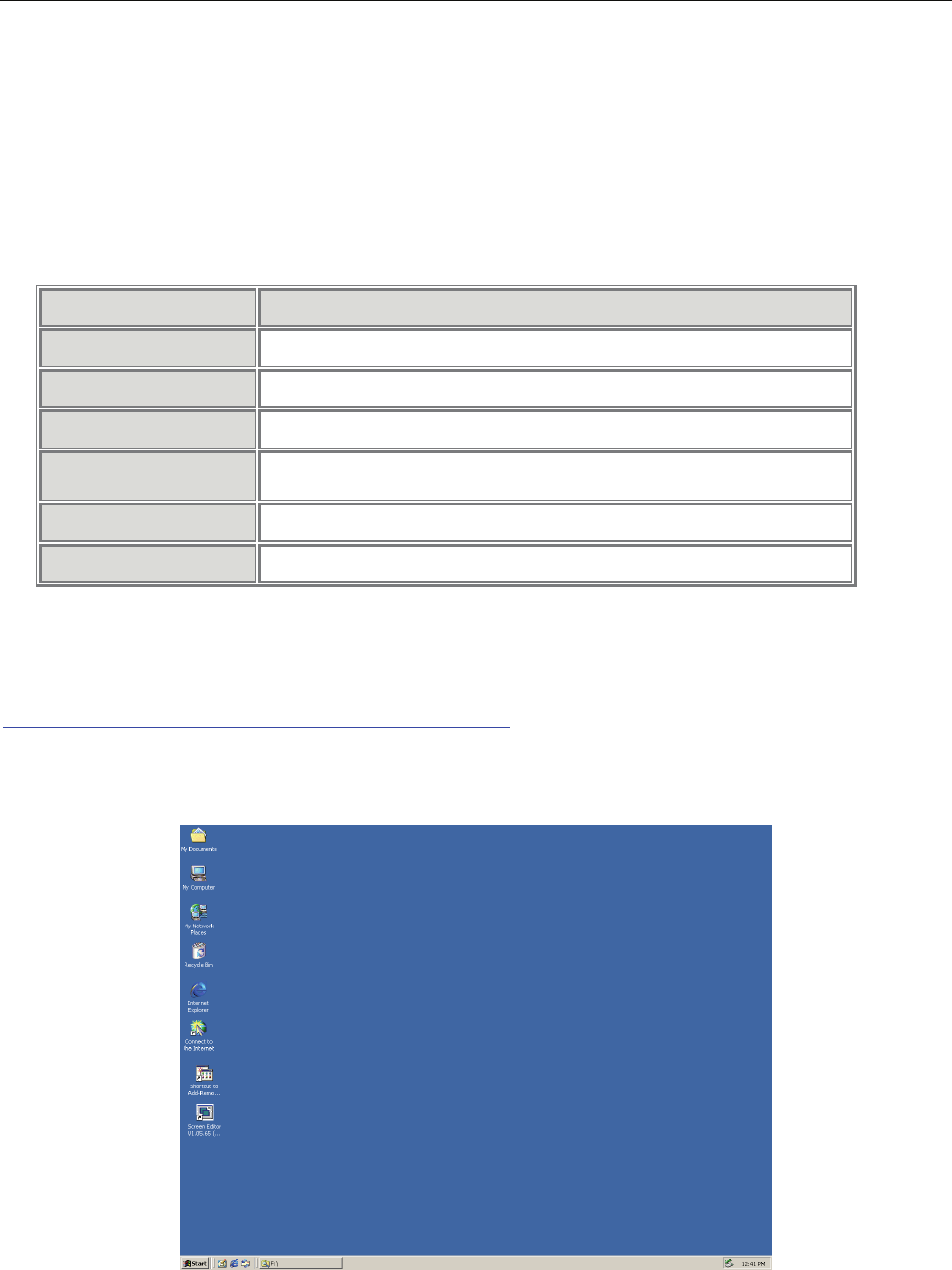

1. Step 1: Please start-up your computer to Win2000/WinXP system (Fig. 2.1.1).
Fig. 2.1.1 Open Microsoft Windows
