Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 2-109

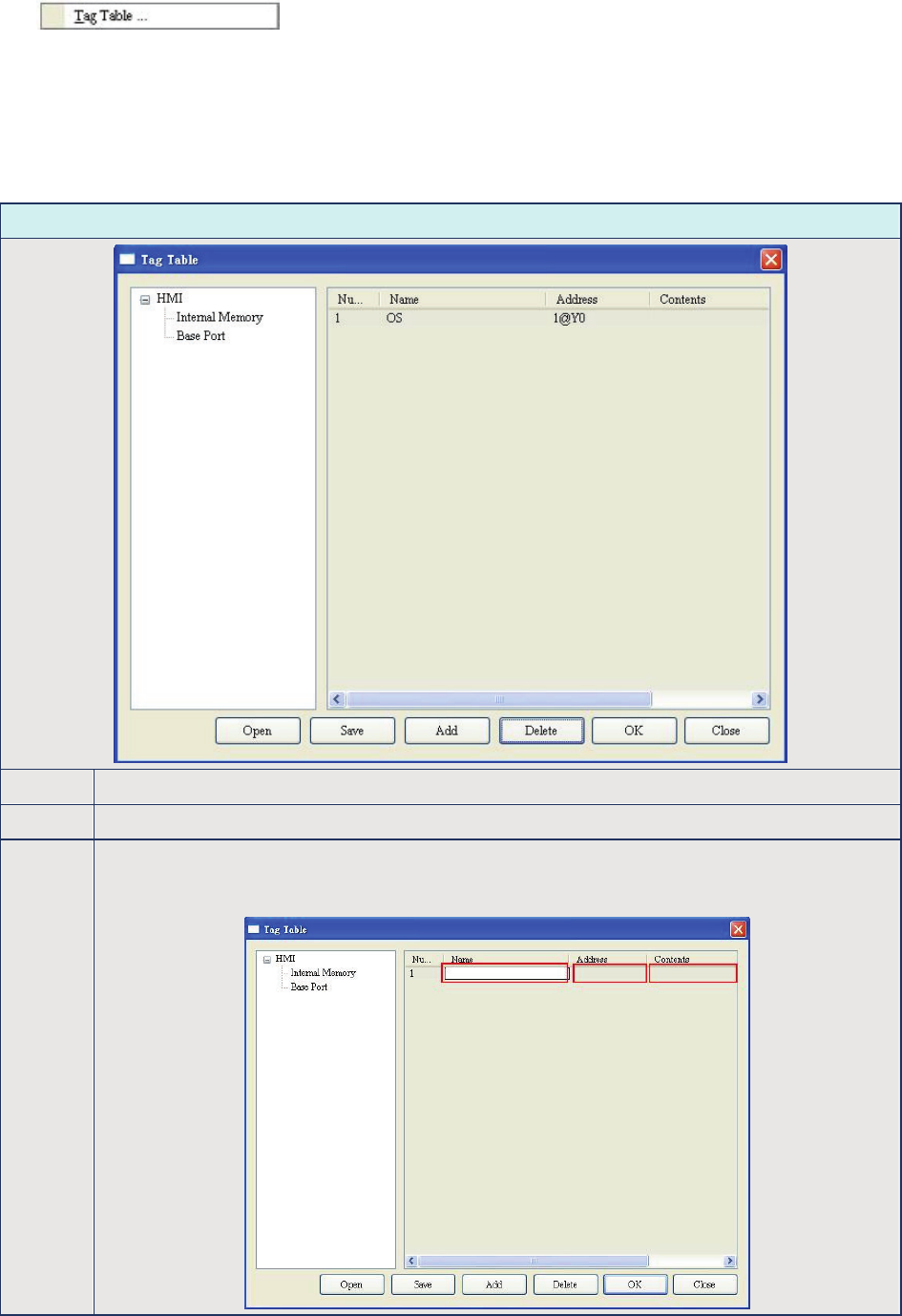

Tag Table
It is used to replace the specific address with the user-defined words or characters. For example, if the
user wants to replace PLC address 1@Y0 with the word “OS”, just define it in Tag Table option in
advance.
Table 2.9.8 Tag Table Settings
Tag Table Dialog Box
Open Open a Tag File and import it into HMI.
Save Save the settings or changes made in Tag Table dialog box as a Tag File.
Add Please select the Tag type first, Internal Memory and Base Port (If the user has three or above
communication ports, the user will see Link2, Link3 …and vise versa). Then, press Add button
to add and define Tag data.
