Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
2-114 Revision Apr. 30th, 2007, 2007PDD23000002
Step2:

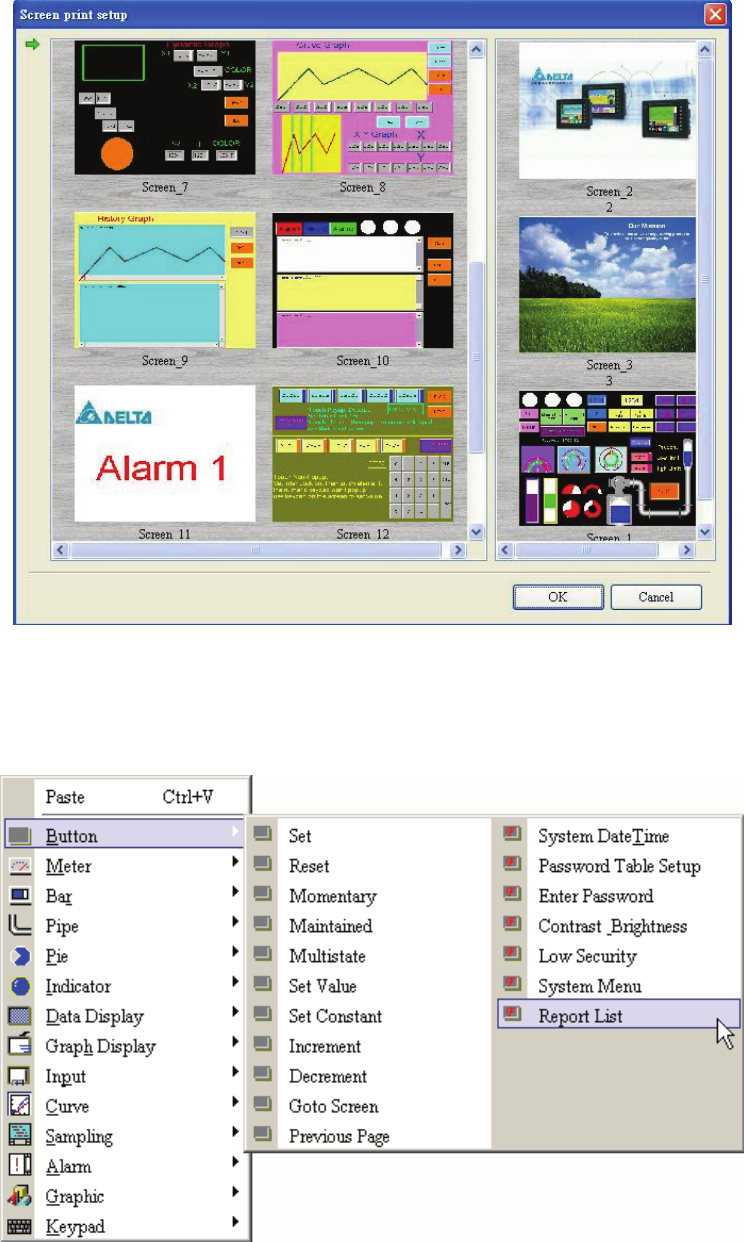

Right clicking the mouse or use a function key to create a “Report List” button on a “General View Screen”.
Then, use this “Report List” button to enable the print function.
Step 3:
Set the properties of the “Report List” option. The Report Device can be SMC, USB flash drive, and Printer.
Please note that if the user selects SMC or USB flash drive, the data will be sent to the SMC or USB flash
drive only and it will not be printed out.
