Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
2-126 Revision Apr. 30th, 2007, 2007PDD23000002
2.11 Menu Bar and Toolbar (Help)
Help

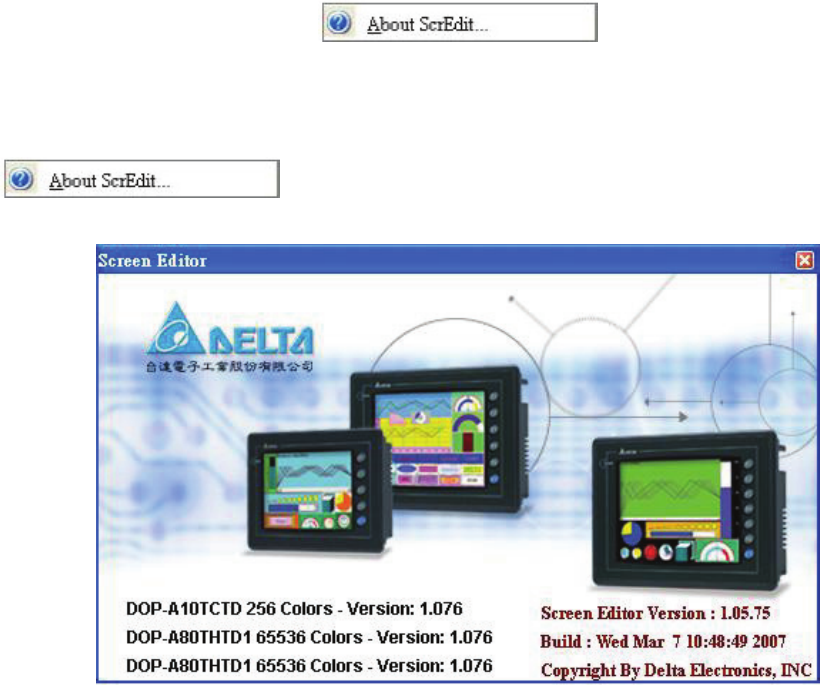

Fig. 2.11.1 Help option
About ScrEdit
Display the version information of Screen Editor and the firmware information of HMI.
Fig. 2.11.2 Screen Editor Version
