Chapter 3 Element Function|ScrEdit Software User Manual
3-60 Revision Apr. 30th, 2007, 2007PDD23000002
3.12 Sampling Element

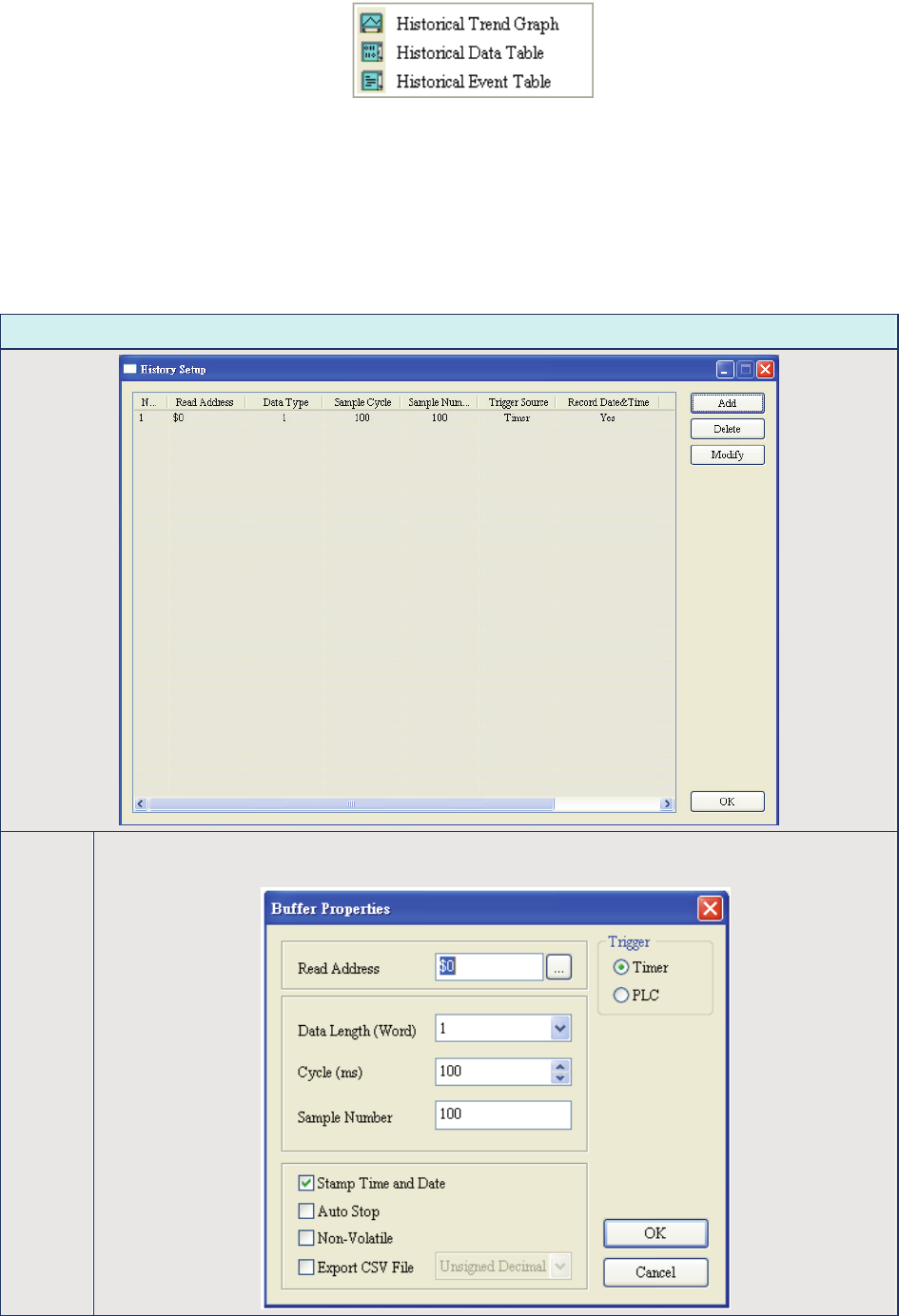

Fig. 3.12.1 Sampling element options
The sampling element is designed to display the history data by history graph or table and can be updated
immediately for the user to use and read more easily. Sampling elements should be used with History Setup.
The user can click ”Option” > “History Setup” (Choosing History Setup command from menu bar) to execute
this function.
Table 3.12.1 History Setup Dialog Box
History Setup Dialog Box
Add Pressing Add button can add a history data. After the Add button is pressed, the following
Buffer Properties dialog box will display.
