Chapter 3 Element Function|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 3-69
Property Description of Alarm History Table Element
Time Format Provide HH:MM:SS, HH:MM two kinds of formats.
Date Format Provide MM/DD/YY, DD/MM/YY and DD.MM.YY three kinds of formats.

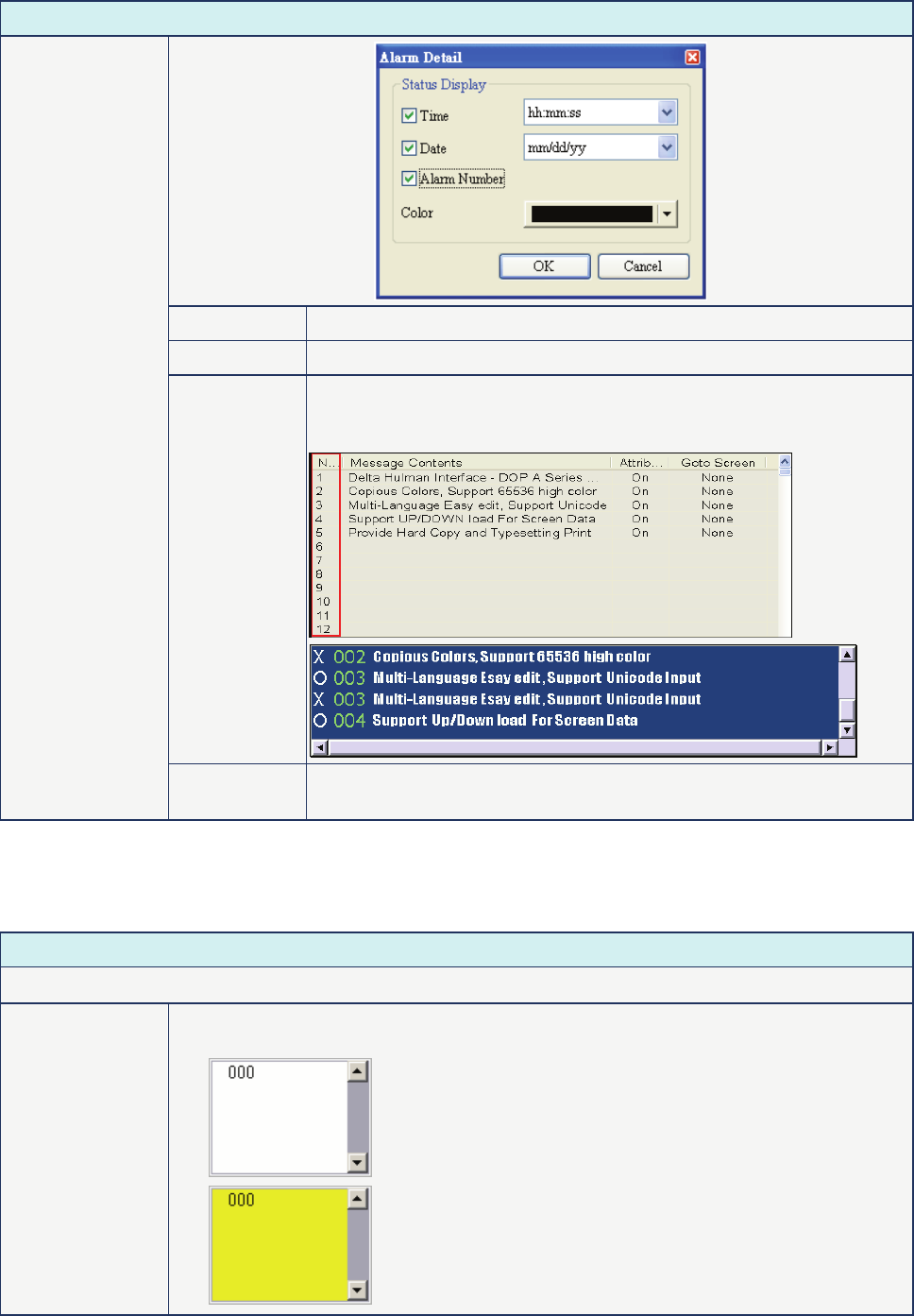

Alarm Number If this option is selected, when the alarm occurs, the alarm number that
is designated in Alarm Setup dialog box will also be shown in front of
the alarm message. Please refer to the figures below:
Detail
Color When time or date format is selected, the user can use this option to
designate the display color.
Active Alarm List
Table 3.13.3 Property Description of Active Alarm List Element
Property Description of Active Alarm List Element
HMI will only display the current alarm message by using Active Alarm List element on the screen.
Background The background color of the following two elements is set to white and yellow
respectively.
The background color is set to white.
The background color is set to yellow.
