Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
2-16 Revision Apr. 30th, 2007, 2007PDD23000002

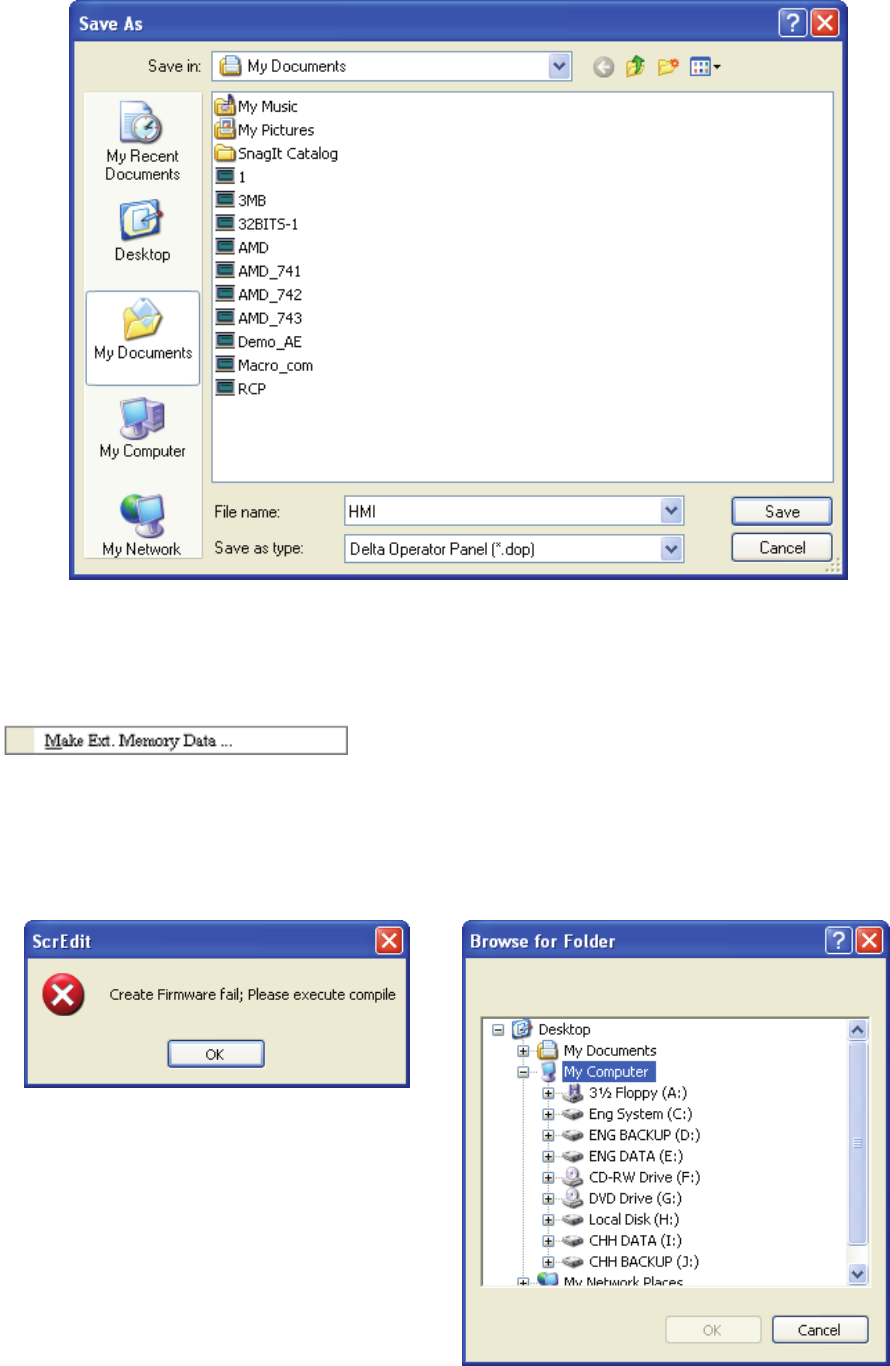

Fig. 2.3.7 Save as dialog box (Dialog box that let user input project name to save as.)
Make Ext. Memory Data
Before using this command, ensure to compile the editing screen data. If not execute the compilation
first, the ScrEdit cannot make screen data and an error message dialog box will show up (Fig. 2.3.8).
Please execute the compilation first and then clicking File > Make Ext. Memory Data to copy the
compiled HMI program into SM card (Fig. 2.3.9) or a USB flash drive. If the SM card or USB flash drive
with compiled HMI program stored inside is inserted into HMI, HMI will startup by reading the data of
SM card or USB flash drive directly.
Fig. 2.3.8 Error message dialog box when
making Ext. Memory Data
Fig. 2.3.9 Make Ext. Memory Data Dialog Box
