Chapter 7 Example Explanation|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 7-3

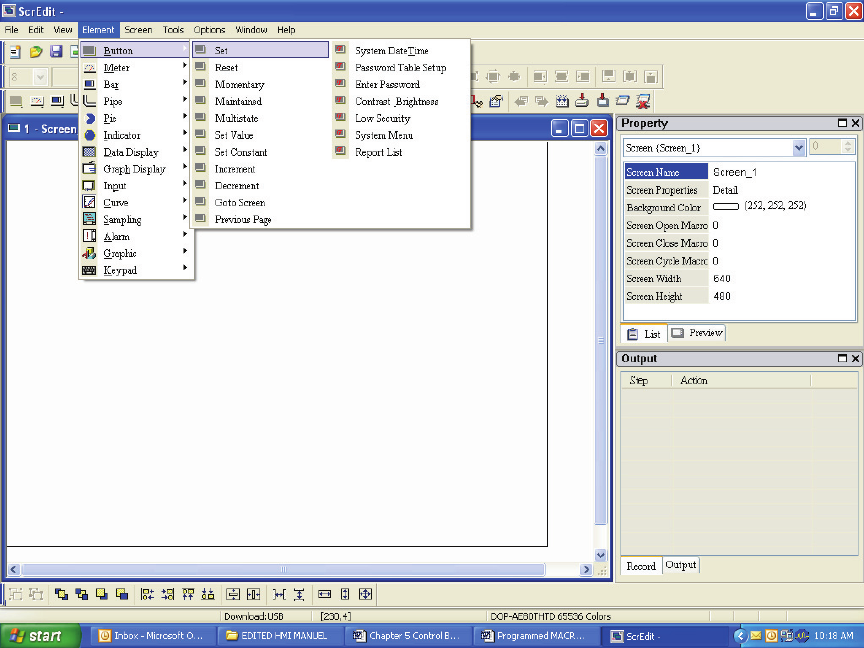

• Select the Element drop down. Select Button, Select SET
The Screen will look like this. See Fig. 7.3
Fig. 7.3
• After that the cursor will be a +
• Left click and drag the mouse in the Screen area.
The screen will look like this after the user makes the square. See Fig. 7.4
