Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
2-18 Revision Apr. 30th, 2007, 2007PDD23000002

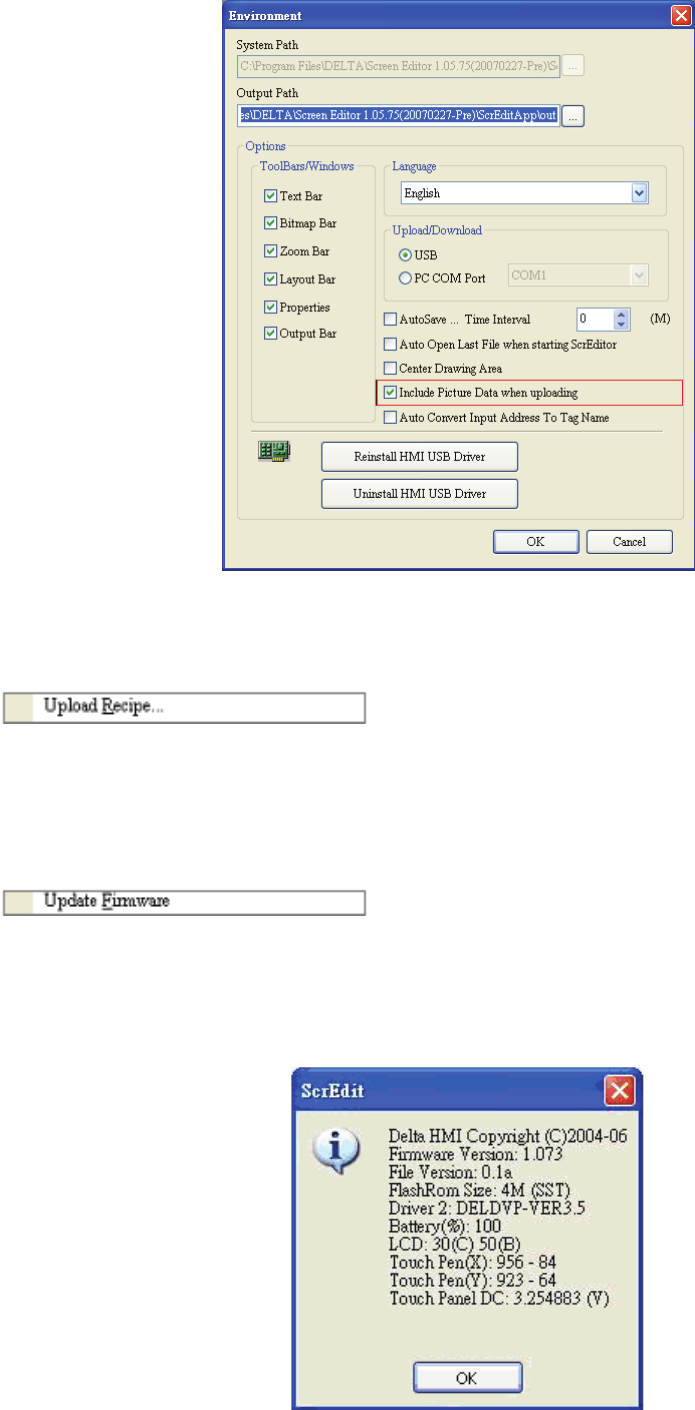

Fig. 2.3.12 Environment dialog box
Upload Recipe
This function is similar to upload function but it can only upload recipe. Before uploading, it also needs
to enter password (the password is the highest priority saved in HMI, which is set by clicking Options >
Configuration > Standard > Security).
Update Firmware
This option is for upgrading HMI firmware or adding function for HMI (Fig. 2.3.13). Keeping HMI
firmware version to be the most updated version can optimize HMI operation. Ensure that the software
version of ScrEdit matches the firmware version. The user can get the firmware information by clicking
Tools > Get Firmware Information. Regarding the software version of ScrEdit, the user can find it by
clicking Help > About ScrEdit (Fig. 2.3.14).
Fig. 2.3.13 Choosing Update Firmware command from menu bar
