Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
2-20 Revision Apr. 30th, 2007, 2007PDD23000002

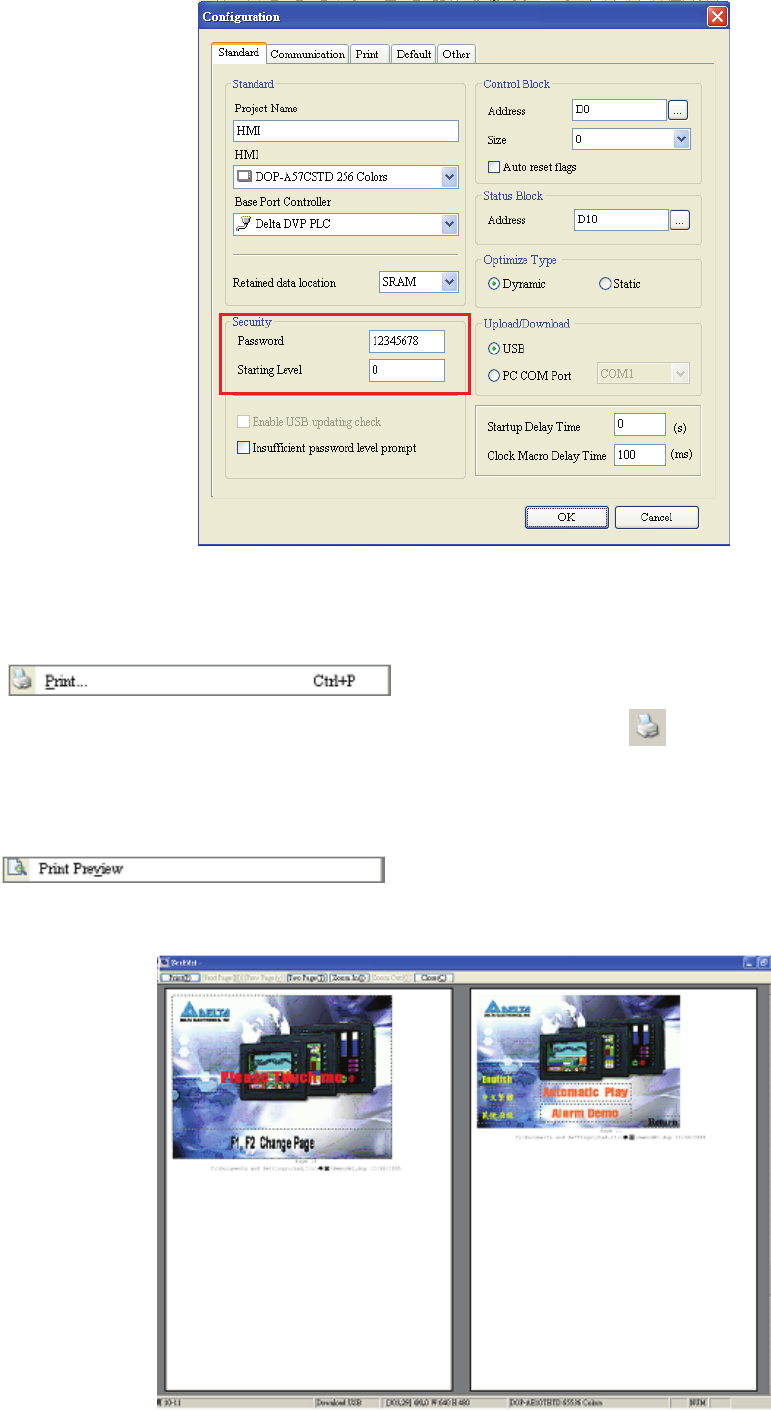

Fig. 2.3.17 Password settings - Security
Print
Print current screen by choosing File > Print, or clicking the Print icon
from toolbar (Fig. 2.3.28), or
using keyboard shortcuts by pressing Ctrl + P.
Print Preview
Select this function by clicking File > Print Preview. Using this function can preview the full page after
printing (Fig. 2.3.18).
Fig. 2.3.18 Print Preview screen
