Appendix B USB Flash Drive Function|ScrEdit Software User Manual
B-8 Revision Apr. 30th, 2007, 2007PDD23000002
After screen data encryption is completed, the user can touch
to
copy the data.

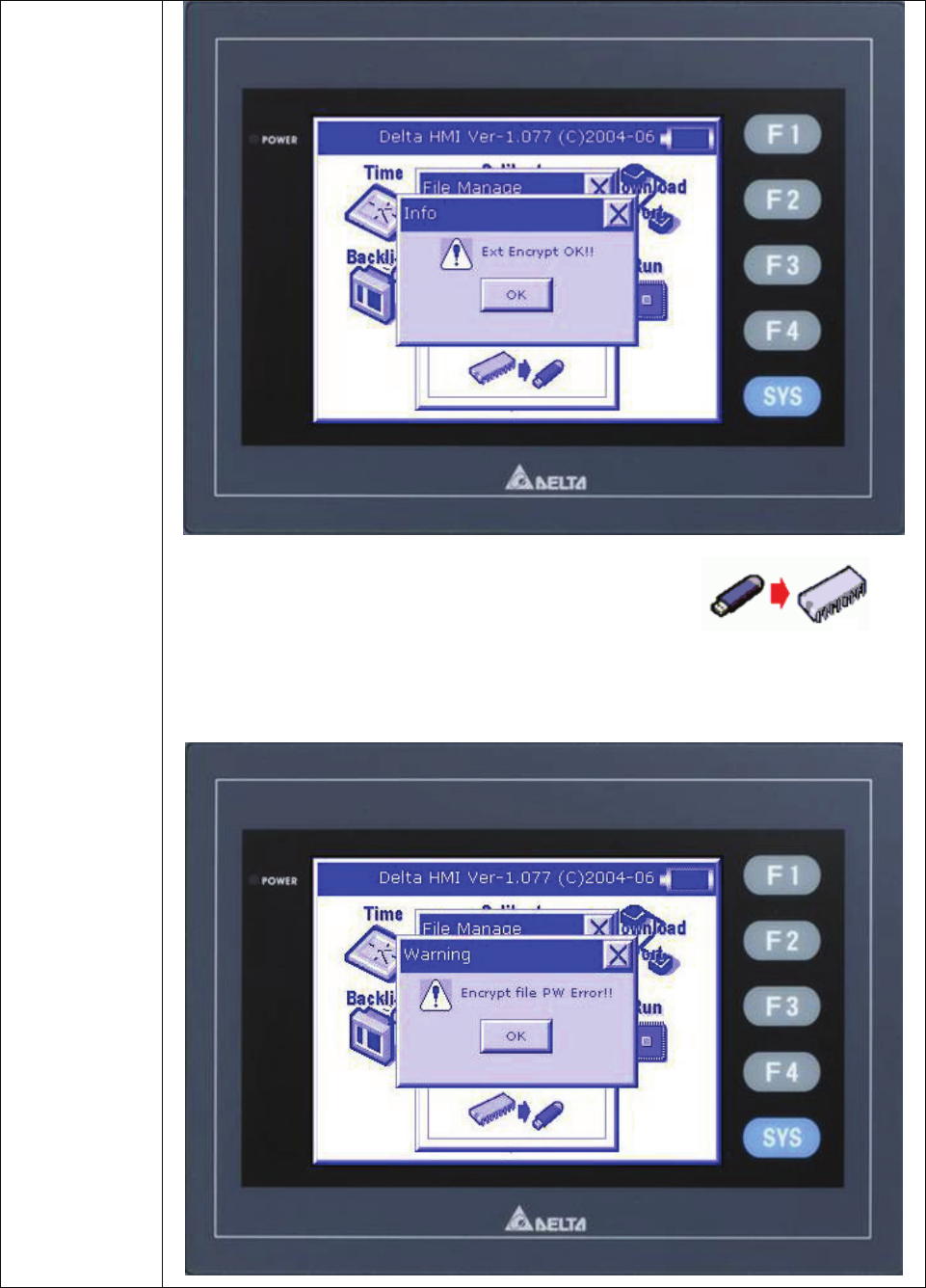

If the password is incorrect, the following warning dialog box will display to remind the
user and the screen data cannot be encrypted.
