Appendix C Main Menu Operation of HMI System
Pressing SYS (system) key on HMI panel for three seconds can enter into the main menu of HMI system
(Fig. C.1). The user can change some settings and execute some function by touching the icons here.

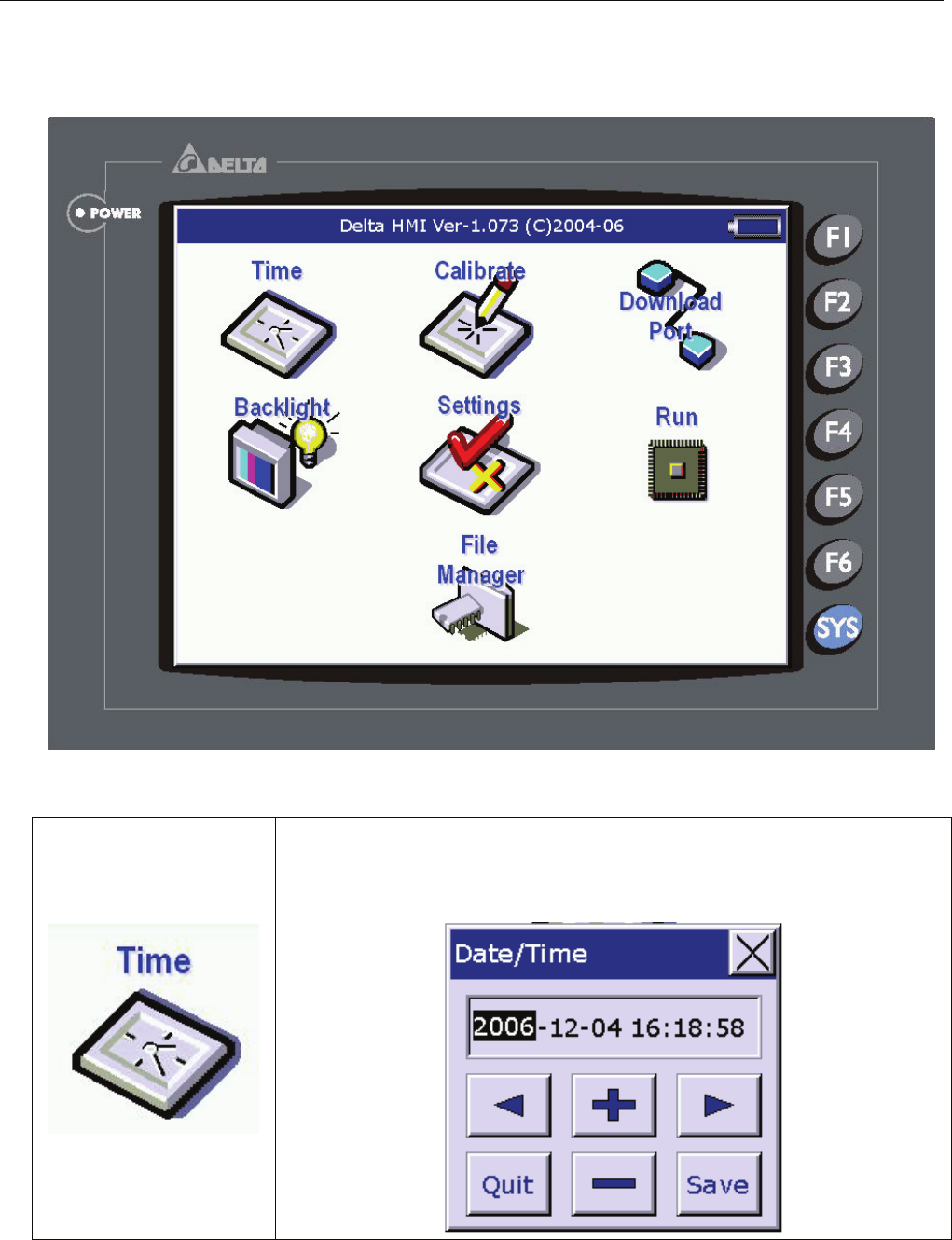

Fig. C.1 Main Menu of HMI System
Date/Time Settings:
The user can touch this icon to change the date and time of Perpetual
Calendar (RTC) of HMI.
