Appendix C Main Menu Operation of HMI System|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 C-3

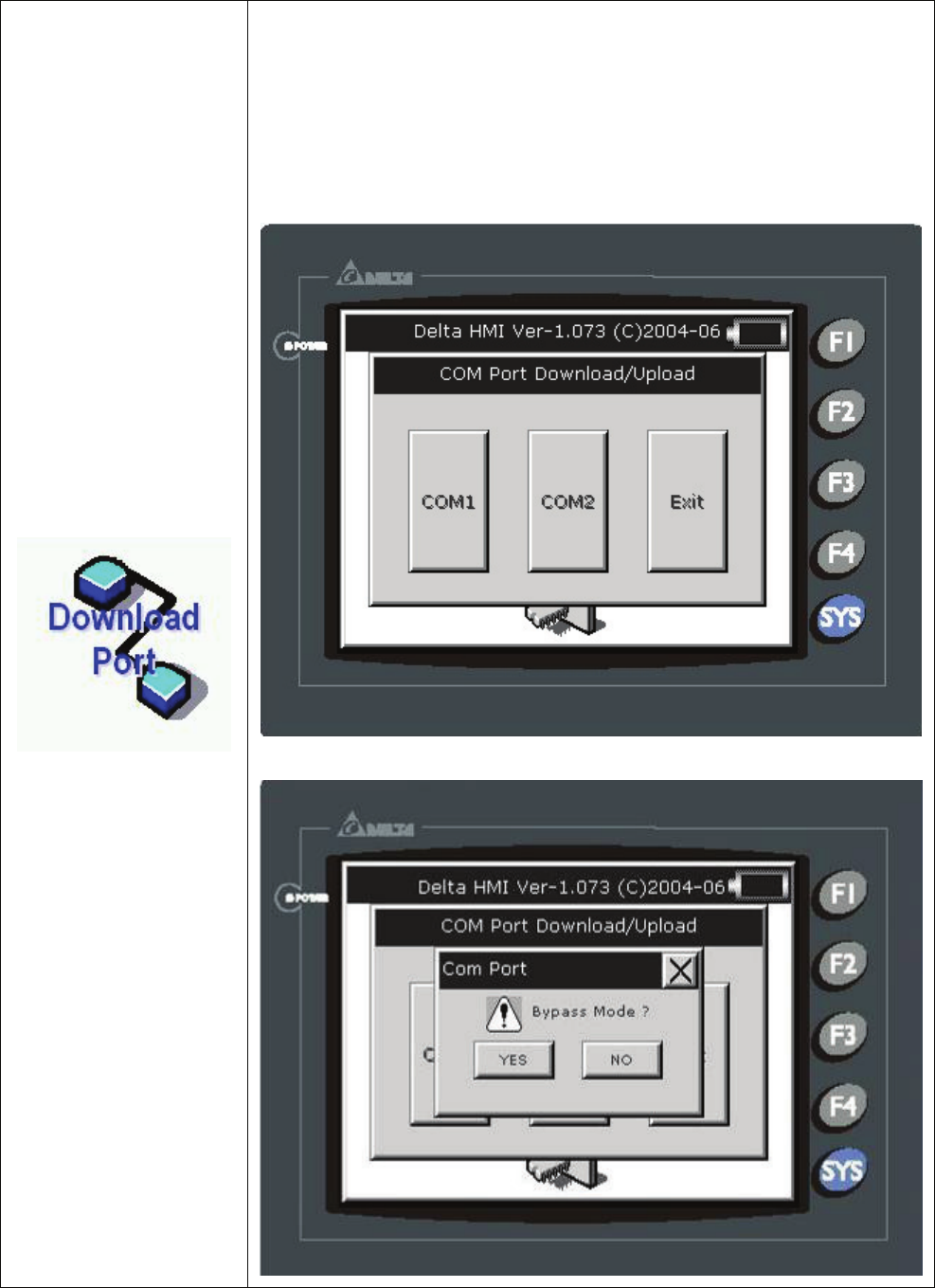

When touching Download Port icon on the screen, COM Port Download/
Upload dialog box will display and ask the user to select the desired COM port.
After the user selects the COM port, HMI system will ask if Bypass mode is
used or not. Please press NO and HMI will start to wait for the screen data
which will be transferred by PC. At this time, the user can click Tools >
Download Screen to download the screen data immediately.
