Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 2-31

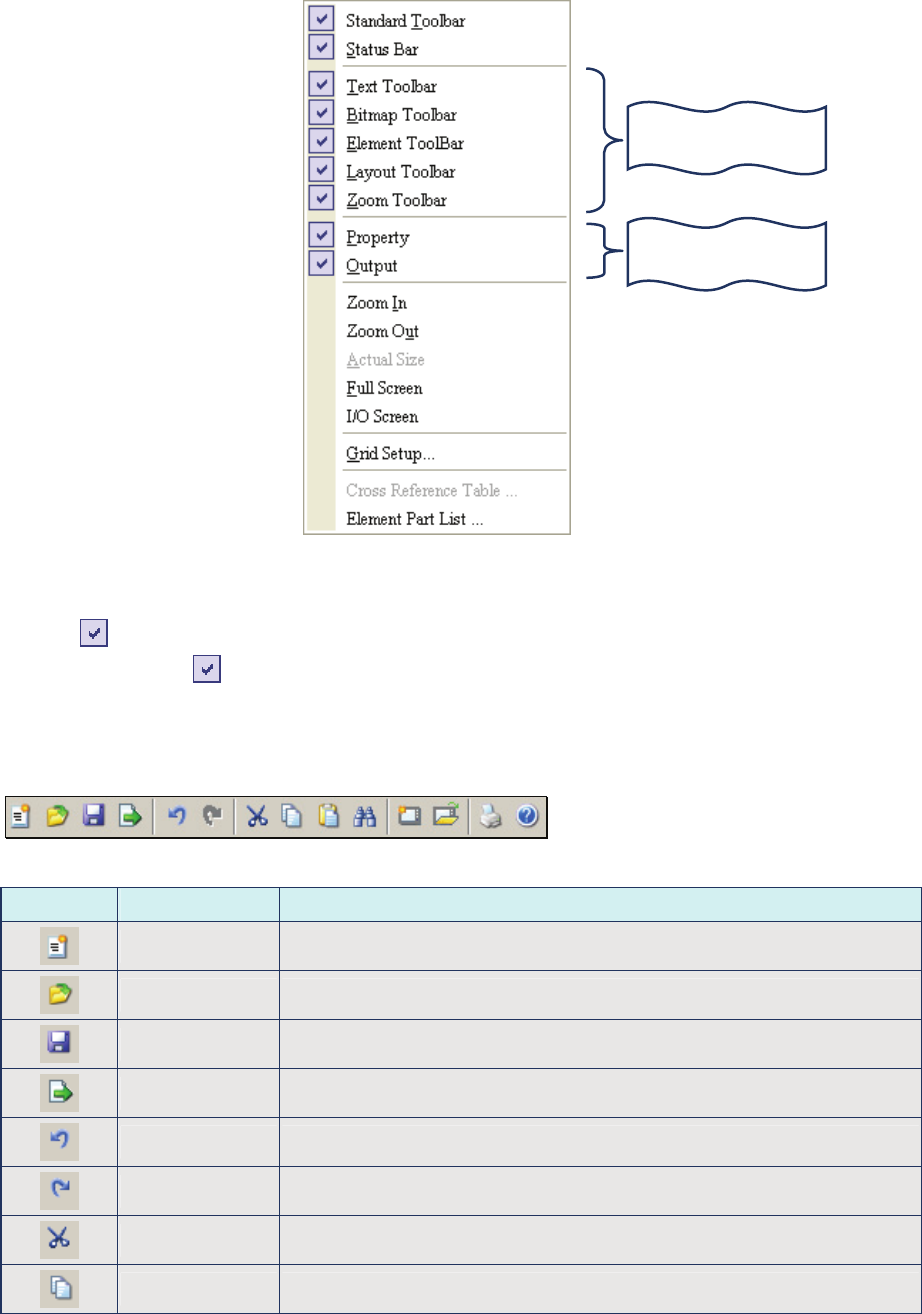

2.5 Menu Bar and Toolbar (View)
๎ View
Fig. 2.5.1 View options
In View option, the user can decide how toolbars and docking windows display. Once the user clicks on it, it
will have icon
in front of it and display on screen. The user can also arrange these toolbars and docking
windows by themselves. If
not show in front of the toolbar, it indicates that the toolbar is hided and not
display on the screen. The description of each toolbar is introduced in the following sections.
๎ Standard Toolbar
Table 2.5.1 Standard toolbar
Icon Function Description
New Create a new project
Open Open an old project
Save Save current edited project
Export Export an project to BMP format
Undo Undo an action (some canโt be undo)
Redo Redo an action
Cut Cut selected elements
Copy Copy selected elements
Toolbars
Docking windows
