Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 2-43
2.6 Menu Bar and Toolbar (Element)
Element

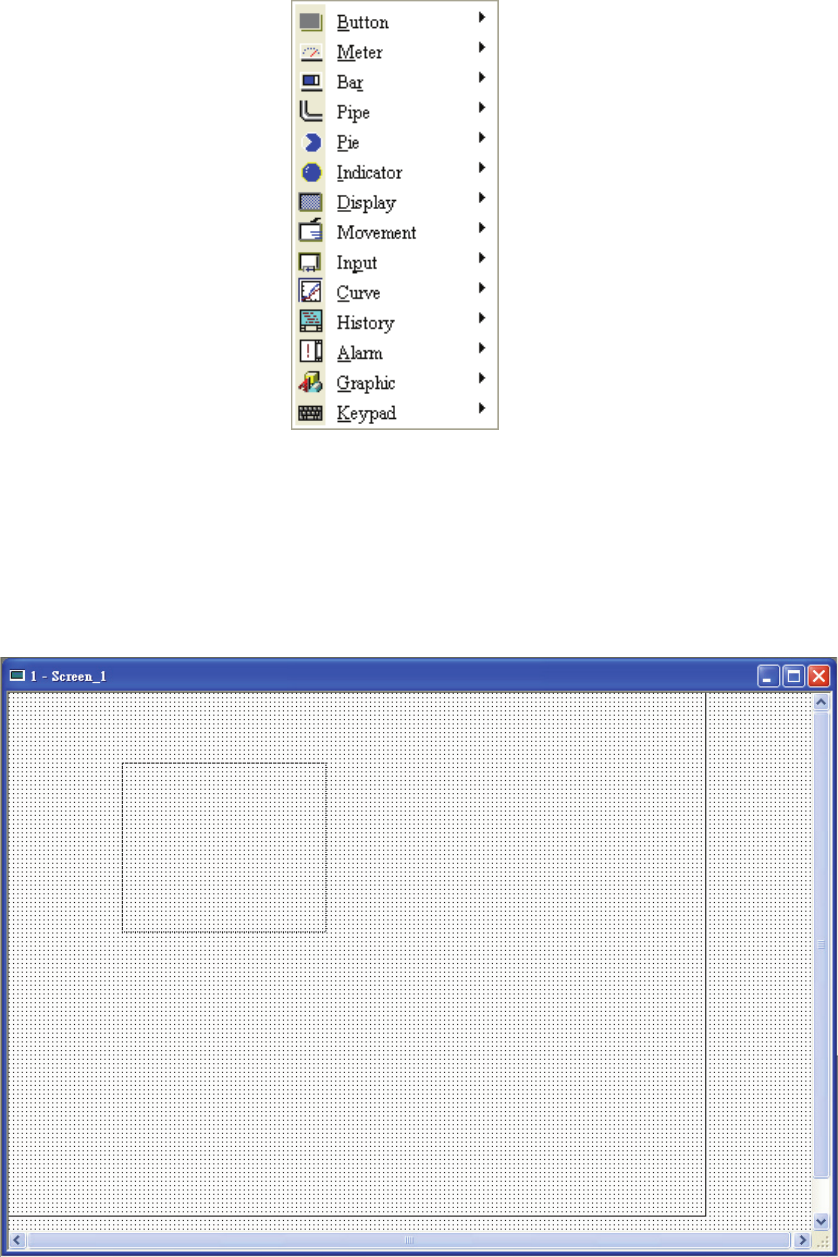

Fig. 2.6.1 Element options
Screen editor provides 14 types of elements and there are many styles for each type. These 14 types
include Button, Meter, Bar, Pipe, Pie, Indicator, Display (data display), Movement (graph display), input,
curve, history (sampling), alarm, graphic and, keypad, etc. The user can select a desired element from the
pull-down menu and drag the size needed on ScrEdit work place (as Fig. 2.6.2 and Fig. 2.6.3).
Fig. 2.6.2 Drag mouse to determine the element size
