Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
2-46 Revision Apr. 30th, 2007, 2007PDD23000002
Fig. 2.6.7 Release left mouse button to create an element
î‚„ Move an Element
The user can use the mouse to move an element. Mouse operation is the same as working in
Windows® operating system. When the mouse cursor changes to a four-arrow icon
, the user can
left-click the mouse and move the element freely (Fig. 2.6.8).

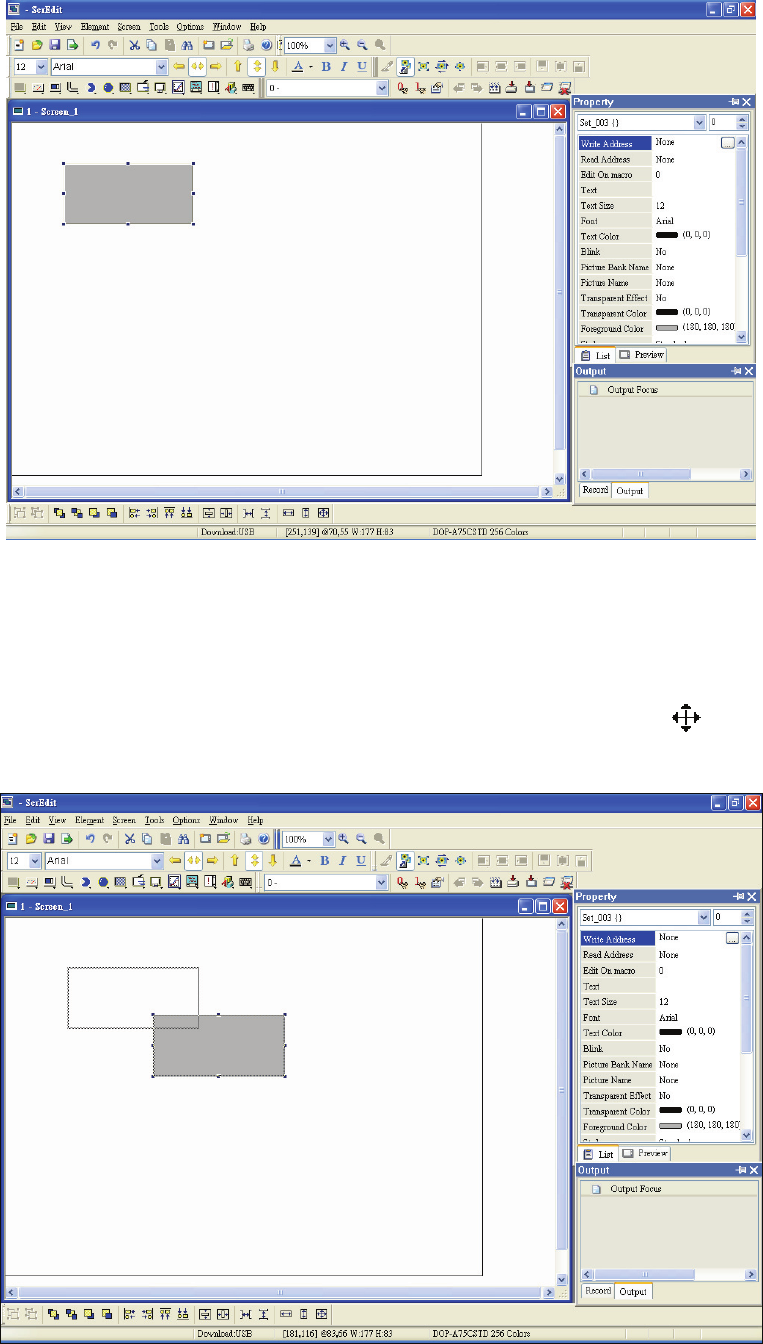

Fig. 2.6.8 Move an Element
