Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
2-48 Revision Apr. 30th, 2007, 2007PDD23000002

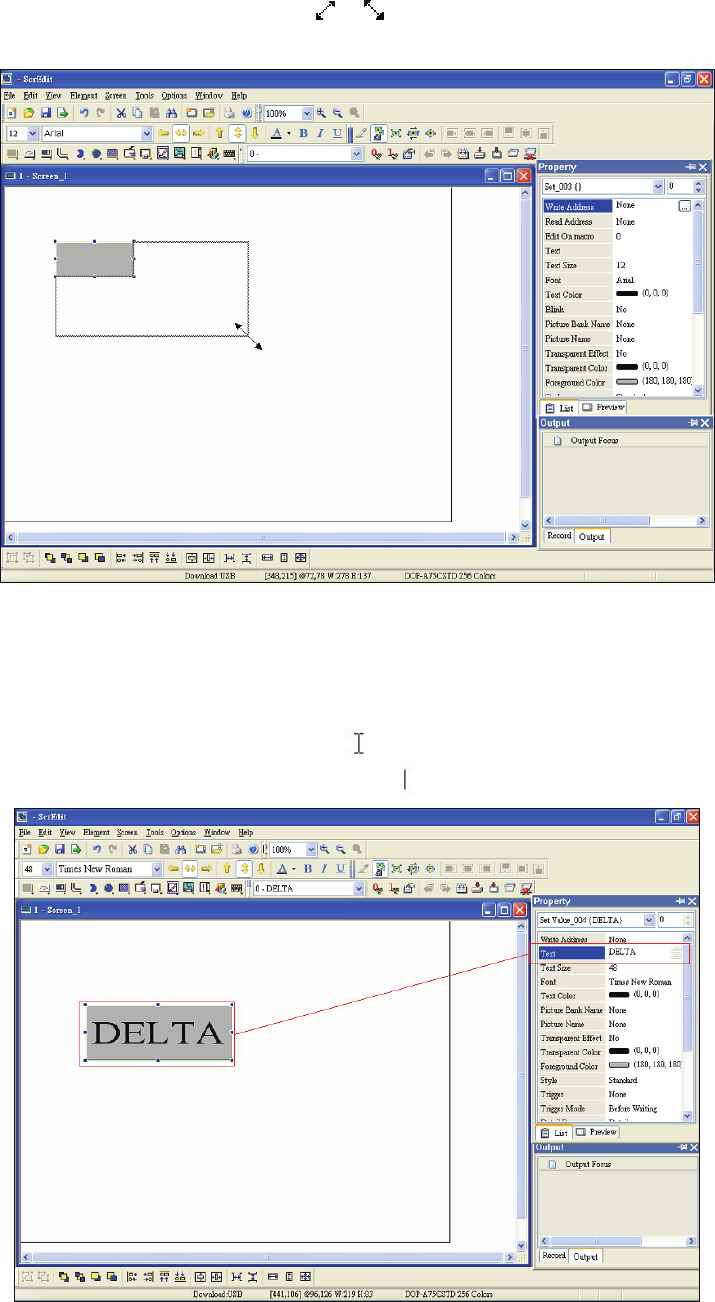

Modify Element Width and Height Simultaneously
The user can also use the mouse to modify the width and height of an element simultaneously. When
the mouse cursor changes to a two-arrow icon
or , the user can left-click the mouse and modify
the element width and height at the same time (Fig. 2.6.11).
Fig. 2.6.11 Modify Element Width and Height Simultaneously
Input Characters
The user can input a string of characters that Windows® operating system accepts in the property
table. When the mouse cursor changes to an icon
, the user can start to input any characters that
Windows® operating system accepts where the cursor
blinks (Fig. 2.6.12).
Fig. 2.6.12 Input Characters
