Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 2-57

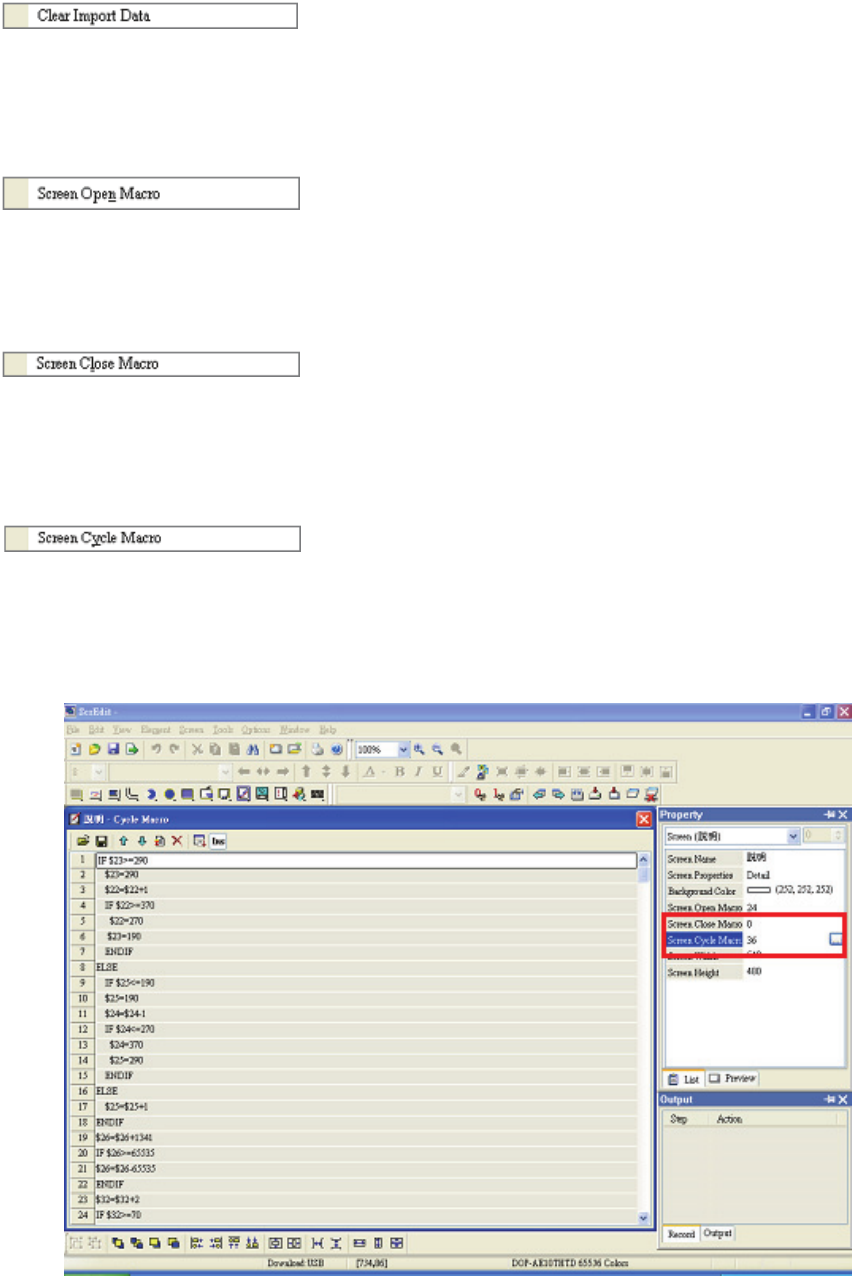

Clear Import Data
The user can free more disk space by clearing the imported data that the user does not want to use.
Execute this function by clicking Screen > Clear Import Data.
Screen Open Macro
When Screen Open Macro function is selected, the Macro will be executed automatically once
opening screen occurs. (Please refer to Chapter 4 for the usage and editing method of Macro.)
Screen Close Macro
When Screen Close Macro function is selected, the Macro will be executed automatically once the
screen is closed. (Please refer to Chapter 4 for the usage and editing method of Macro.)
Screen Cycle Macro
When Screen Cycle Macro function is selected, the Macro will be executed continuously once the
screen is displayed. (Macro will be executed continuously by the cycle time setting) (Please refer to
Chapter 4 for the usage and editing method of Macro.)
The user also can click the Screen Open Macro, Screen Close Macro and Screen Cycle Macro options
from the Property Table to enter intro Screen Open Marco editing environment (Fig. 2.3.10).
Fig. 2.7.10 Screen Open Marco editing environment
