Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
2-78 Revision Apr. 30th, 2007, 2007PDD23000002
Besides, in order to perform simulation operation more conveniently, the Address of Control Block is set to
Internal Memory $0. Your Screen will look like the Fig. 2.8.27 shown below.

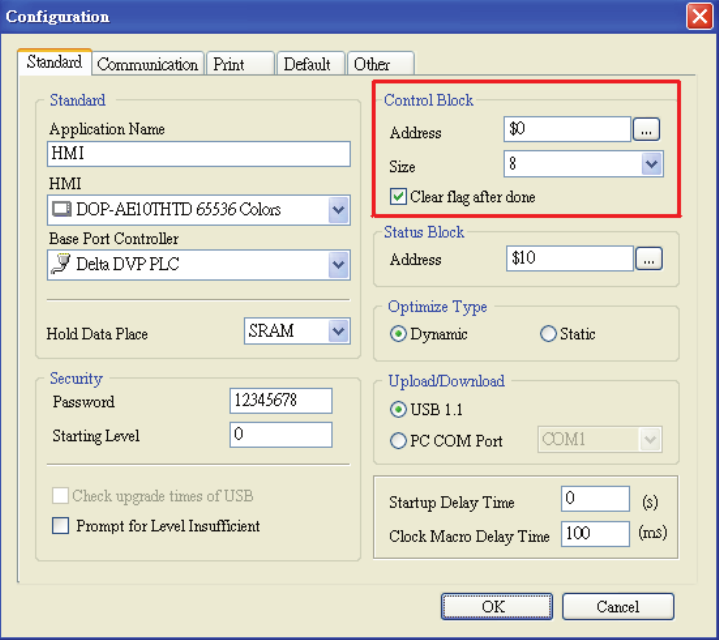

Fig. 2.8.27 Control Block Settings of Configuration dialog box
