Chapter 5 Parameters|VFD-S Series
5-48 Revision August 2008, SE09, SW V2.61
Frequency
60Hz
50Hz
40Hz
30Hz
20Hz
15Hz
10Hz
0Hz
5-09
5-10
5-11
5-12
5-13
5-14
5-15
Pr.5-00
Pr.5-01
Pr.5-02
Pr.5-03
Pr.5-04
Pr.5-05
Pr.5-06
Master
Freq.
Program operation
command
Program operation
output indication
Program step
complete
Program operation
completed
Master freq.=5Hz
5-00=10 Hz
5-01=20 Hz
5-02=40 Hz
5-03=60 Hz
5-04=50 Hz
5-05=30 Hz
5-06=15 Hz
4-07=d17
3-05=d10
3-06=d11
5-07=d1
5-08=d0
5-09=10 Sec
5-10=10 Sec
5-11=12 Sec
5-12=15 Sec
5-13=15 Sec
5-14=8 Sec
5-15=17 Sec
5-16=17 Sec
5Hz
5-16
Time
(Sec)
NOTE
The above diagram shows one complete PLC cycle. To restart the cycle, turn the PLC program off
and then back on.

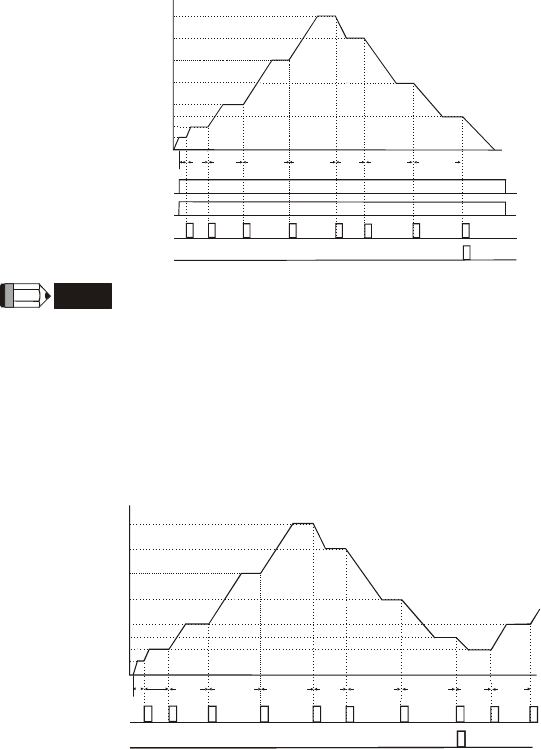

Example 2 (Pr.5-07 = d2): Continuously executes program cycles
The diagram below shows the PLC program stepping through each speed and the automatically
starting again. To stop the PLC program, one must either pause the program or turn it off (Refer to
Pr.4-05 to 4-08 value d17 and d18).
Frequency
60Hz
50Hz
40Hz
30Hz
20Hz
15Hz
10Hz
0Hz
5-09
5-11
5-12 5-13
5-14
5-15 5-16
5-00
5-01
5-02
5-03
5-04
5-05
5-06
Program step
complete
Program operation
completed
5-00
5-09
5-10
5Hz
Master freq.=5Hz
5-00=10 Hz
5-01=20 Hz
5-02=40 Hz
5-03=60 Hz
5-04=50 Hz
5-05=30 Hz
5-06=15 Hz
4-07=d17
3-05=d11
3-06=d12
5-07=d2
5-08=d0
5-09=10 Sec
5-10=10
5-11=12
5-12
Sec
Sec
=15 Sec
5-13=15 Sec
5-14=8 Sec
5-15=17 Sec
5-16=17 Sec
5-10
Time
(Sec)
