Chapter 1 Introduction|VFD-S Series
1-2 Revision August 2008, SE09, SW V2.61

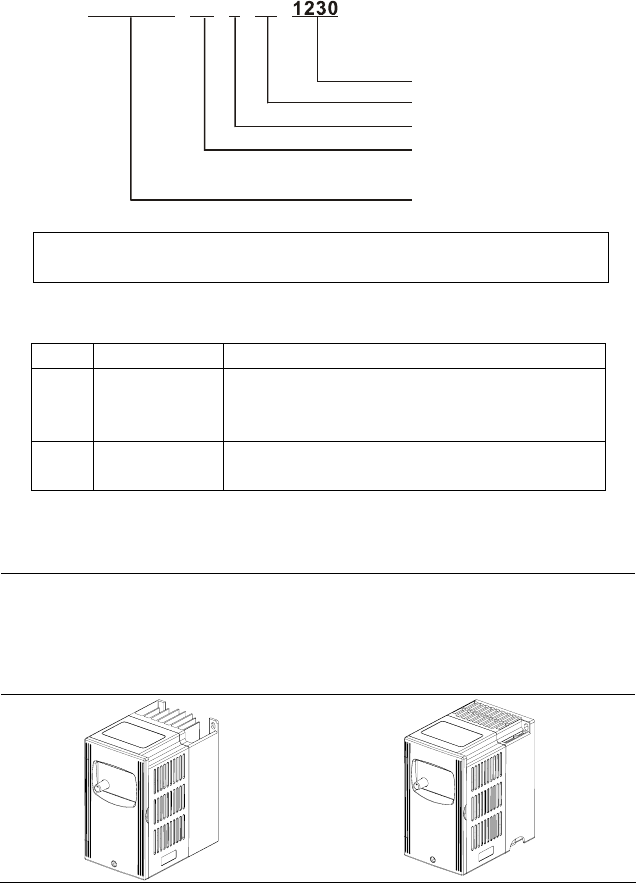

1.1.3 Series Number Explanation
0160T007S23A
Production number
Production year 2006
Production factory
Production week
(Taoyuan)
Model
230V 3-phase 1HP(0.75kW)
If the nameplate information does not correspond to your purchase order or if there are
any problems, please contact your distributor.
1.1.4 Drive Frames
Frame Power range Models
S1
0.25-2hp
(0.2-1.5kW)
VFD002S11A/11B/21A/21B/21E/23A,
VFD004S11A/11B/21A/21B/21E/23A/43A/43B/43E,
VFD007S21A/21B/21E/23A/43A/43B/43E, VFD015S23D
S2
1-5hp
(0.75-3.7kW)
VFD007S11A/11B, VFD015S21D/21E/21U/43D/43E/43U,
VFD022S21D/21E/21U/23D/43D/43E/43U
Please refer to Chapter 2.3 for exact dimensions.
1.2 Appearances
VFD002S11A/11B/21A/21B/23A,
VFD004S11A/11B/21A/21B/23A/43A/43B/43E,
VFD007S21A/21B/23A/43A/43B/43E,
Frame S1: VFD002S21E, VFD004S21E,
VFD007S21E, VFD015S23D,
Frame S2: VFD007S11A/11B,
VFD015S21D/21E/21U/43D/43E/43U,
VFD022S21D/21E/21U/23D/43D/43E/43U
