Chapter 5 Parameters|VFD-S Series
Revision August 2008, SE09, SW V2.61 5-55

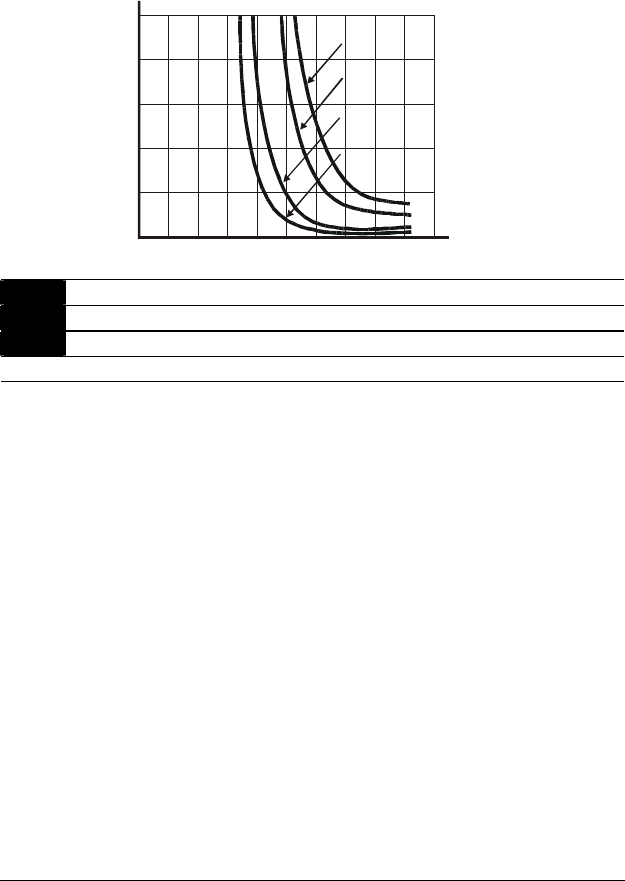

1
2
3
4
5
60Hz or more
50Hz
10Hz
5Hz
0
20
40
60
80
100
120
140
160
180 200
Operation
time(min)
Load
factor (%)
6-08 Present Fault Record
6-09 Second Most Recent Fault Record
6-10 Third Most Recent Fault Record
Factory Setting: d0
Readings d0 No fault
d1 Over-current (oc)
d2 Over-voltage (ov)
d3 Overheat (oH)
d4 Overload (oL)
d5 Overload1 (oL1)
d6 External fault (EF)
d7 Reserved
d8 Reserved
d9 Current exceeds 2 times rated current during accel. (ocA)
d10 Current exceeds 2 times rated current during decel.(ocd)
d11 Current exceeds 2 times rated current during steady state operation
(ocn)
d12 Ground fault (GF)
d13 Reserved
d14 Low voltage (Lv)
d15 CPU failure 1 (cF1)
d16 CPU failure 2 (cF2)
d17 Base block (b.b.)
d18 Overload (oL2)
d19 Auto acceleration/deceleration failure (cFA)
