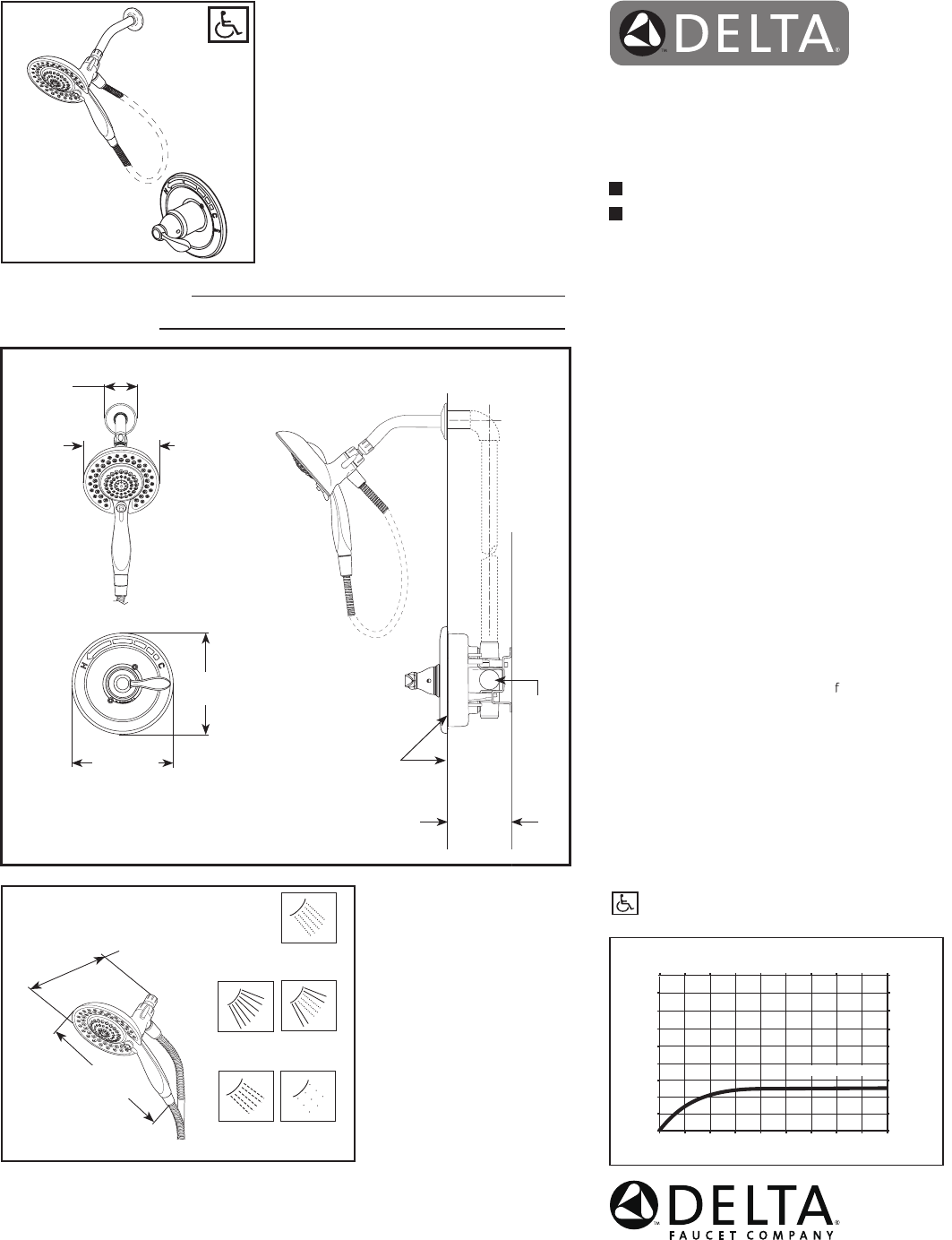

Specification

142984-I
▲
Submitted Model No.:
▲
Designate proper nish sufx
Delta reserves the right (1) to make changes in specications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for nish options and product availability.
DSP-B-142984-I Rev. C
TUB AND SHOWER
FAUCET TRIM
STANDARD SPECIFICATIONS:
WARRANTY
COMPLIES WITH:
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, Ontario Canada N5P 4L1
© 2015 Masco Corporation of Indiana
• Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off elsewhere
in the system
• For use with MultiChoice
®
Universal rough valve body
(R10000 Series)
• Back-to-back installation capability
• Solid brass forged body
• Temperature only controlled with handle
• Field adjustable to limit handle rotation into
hot water zone
• 120≥ maximum handle rotation
• All parts replaceable from the front of the valve
• Integrated handshower docks securely into
showerhead when not in use
Specic Features:
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and inishes; or,
for commercial users, for 5 years from the date
of purchase.
• 5 year limited warranty on electronic parts (other
than batteries); or for commercial users, for 1 year
from the date of purchase. No warranty is provided
on batteries.
• ASME A112.18.1 / CSA B125.1
• ASME 1016
Indicates compliance to
ICC/ANSI A117.1
0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liter
s Per Minute)
Showerhead
7
26.5
30.3
34.1
8
9
Porter
®
Bath Collection
Shower only (142984-I Series)
2 1/2"
(64 mm)
6 7/8"
(174 mm)
7"
(178 mm)
Face of plasterguard should
be ush with nish wall line
7"
(178 mm)
2 3/4"
(70mm)
Supply
In2itions Showerhead & Handshower
RP62088
▲
5 1/2"
(140 mm)
11"
(279 mm)
Full Spray
Slow
Massage
Fast
Massage
Pause
Button
Full Spray
w/Massage
FEATURES:
• Monitor
®
14 Series pressure balanced bath
mixing valve trim with Scald-Guard
®
