Installation Guide

ManualsBrandsDelta ManualsBathPorter 4 in. Centerset Single-Handle Bathroom Faucet in Brushed Nickel

1 86368 Rev. C

SINGLE HANDLE BATHROOM

CENTERSET FAUCETS

LLAVES MONOCONTROL DE

MONTURA DE CENTRO PARA

LAVAMANOS

ROBINETS À ENTRAXE COURT À

UNE POIGNÉE POUR LA CUISINE

86368

Model/Modelo/Modèle

15984LF-ECO

Series/Series/Seria

Write purchased model number here.

Escriba aquí el número del modelo comprado.

Inscrivez le numéro de modèle ici.

Specify Finish/Especifíque el Acabado/Précisez le Fini

You may need:

Usted puede necesitar:

Articles dont vous pouvez avoir besoin :

Failure to read these instructions prior to installation may result in personal

injury, property damage, or product failure. Manufacturer assumes no

responsibility for product failure due to improper installation.

CAUTION

Read all instructions prior to installation.

L’omission de lire les présentes instructions avant l’installation peut

entraîner des blessures, des dommages matériels ou le bris du produit. Le

fabricant se dégage de toute responsabilité à l’égard d’un bris du produit

causé par une mauvaise installation.

AVERTISSEMENT

Veuillez lire toutes les instructions avant l’installation.

El no leer estas instrucciones de instalación puede resultar en lesiones

personales, daños a la propiedad, o falla en el funcionamiento del producto.

El fabricante no asume ninguna responsabilidad por la falla del producto

debido a una instalación incorrecta.

ADVERTENCIA

Lea todas las instrucciones antes de hacer la instalación.

To reference replacement parts and access additional

technical documents and product info,

visit www.deltafaucet.com

Para referencia sobre las piezas de repuesto y acceder

a documentos técnicos adicionales e información del

producto, visite www.deltafaucet.com

Pour obtenir la référence des pièces de rechange ainsi

que pour avoir accès à d’autres documents techniques et

renseignements sur le produit, allez à www.deltafaucet.com

Regístrese en línea

S’enregistrer en ligne

www.deltafaucet.com/registerme

1-800-345-DELTA (3358)

customerservice@deltafaucet.com

07/06/2020

Summary of content (6 pages)

PAGE 1

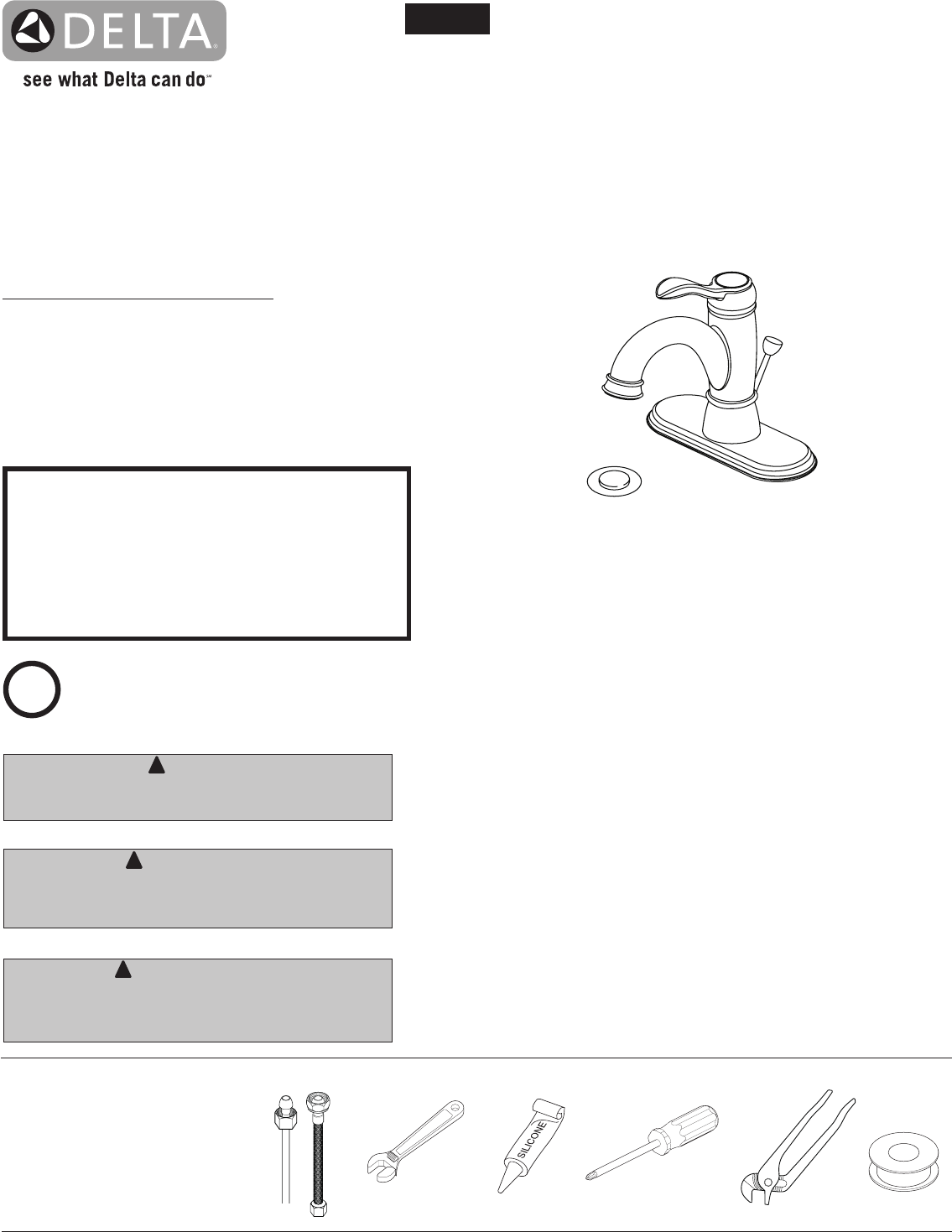

86368 SINGLE HANDLE BATHROOM CENTERSET FAUCETS LLAVES MONOCONTROL DE MONTURA DE CENTRO PARA LAVAMANOS Model/Modelo/Modèle 15984LF-ECO Series/Series/Seria ROBINETS À ENTRAXE COURT À UNE POIGNÉE POUR LA CUISINE Write purchased model number here. Escriba aquí el número del modelo comprado. Inscrivez le numéro de modèle ici. p Specify Finish/Especifíque el Acabado/Précisez le Fini Register Online Regístrese en línea S’enregistrer en ligne www.deltafaucet.
PAGE 2
Cleaning and Care Care should be given to the cleaning of this product. Although its finish is extremely durable, it can be damaged by harsh abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel. Limpieza y Cuidado de su Llave Tenga cuidado al limpiar este producto. Aunque su acabado es sumamente durable, puede ser afectado por agentes de limpieza o para pulir abrasivos.
PAGE 3
2 1 1 2 3 5 4 6 1/2" (12.70mm) IPS 1/2 po (12.70mm) IPS 1 2 3 3 5 1 2 4 6 Faucet Installation Position faucet (1) with single or three hole escutcheon (2) and baseplate or gasket (3) on sink. Option: If surface of sink is uneven, use silicone under the baseplate or gasket. Place metal bracket (4) over mounting stud (5) under sink. Secure with mounting nut & wrench (6).
PAGE 4
3 A. B. 1 1 2 2 4 3 3 C. 3 4 D. 5 6 1 7 1 3 1 2 2 4 Install Pop-Up Assembly A. Remove stopper (1) and flange (2). Screw nut (3) all the way down. Push black gasket (4) down. B. Apply silicone to underside of flange (1). Insert body (2) into sink. Screw flange onto body. Pivot hole (3) must face back of sink. Tighten nut/gasket, clean excess silicone. C. Remove pivot nut (1). Install horizontal rod (2) and stopper (3) as removable (4) or non-removable (5). Hand tighten pivot nut (1).
PAGE 5
4 3 1 2 1 2 4 3 4 FLUSH SYSTEM/CHECK FOR LEAKS. Remove aerator (1) using supplied wrench (2) and turn faucet handles (3) to the full on mixed position. Turn on hot and cold water supplies (4) and flush water lines for one minute. Important: This flushes away any debris that could cause damage to internal parts. Check all connections at arrows for leaks. Replace aerator. Re-tighten if necessary, but do not overtighten.
PAGE 6
Limited Warranty on Delta® Faucets Parts and Finish. All parts (other than electronic parts and batteries) and finishes of Delta® faucets purchased from authorized Delta sellers are warranted to the original consumer purchaser to be free from defects in material and workmanship for as long as the original consumer purchaser owns the home in which the faucet was first installed.
