Dimensions Guide

COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.6
Indicates compliance to
ICC/ANSI A117.1
• Verified compliant with .25% weighted
average Pb content regulations.
KITCHEN
FAUCETS
■ Lewiston
®
Series
■ Single Handle Deck Mount
■ 1, 2, 3 or 4 Hole Sink Applications
■ Optional Soap Dispenser
■ DIAMOND Seal
®
Technology
■ Integrated Supply Tubes
■ 2-Function Pull-Out
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
STANDARD SPECIFICATIONS:
• Single handle kitchen faucets for exposed
mounting on 1, 2, 3 and 4 hole sinks.
• Centermount or 8" (203 mm) centers with optional
10 1/2 (267 mm) long escutcheon included.
• 8" (203 mm) high, 9 25/32" (248 mm) long
spout nestled in metal hub assembly, swings 120.
• Spout is connected to valve body with a 53''
(1346 mm) long hose.
• Pull-out spout operates in an aerated or spray
mode via an easy push button.
• Lever handle shall return to neutral position
when valve is turned off.
• Control mechanism shall be the diamond coated
ceramic cartridge.
• Red/blue graphics on handle button to indicate
hot/cold temperature.
• Touch-Clean® sprayhead.
• 3/8" O.D. straight, staggered pex supply
tubes - 35" (889 mm) and 36" (914 mm) long.
• Standard 3/8" (10 mm) compression gasket fittings.
• Integral double check valves in spout.
• Soap dispenser bottle holds up to 8 oz.
• Maximum 1.80 gpm @ 60 psi, 6.8 L/min @ 414 kPa
16926-▲SD-DST
DSP-K-16926-SD-DST Rev. C
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.

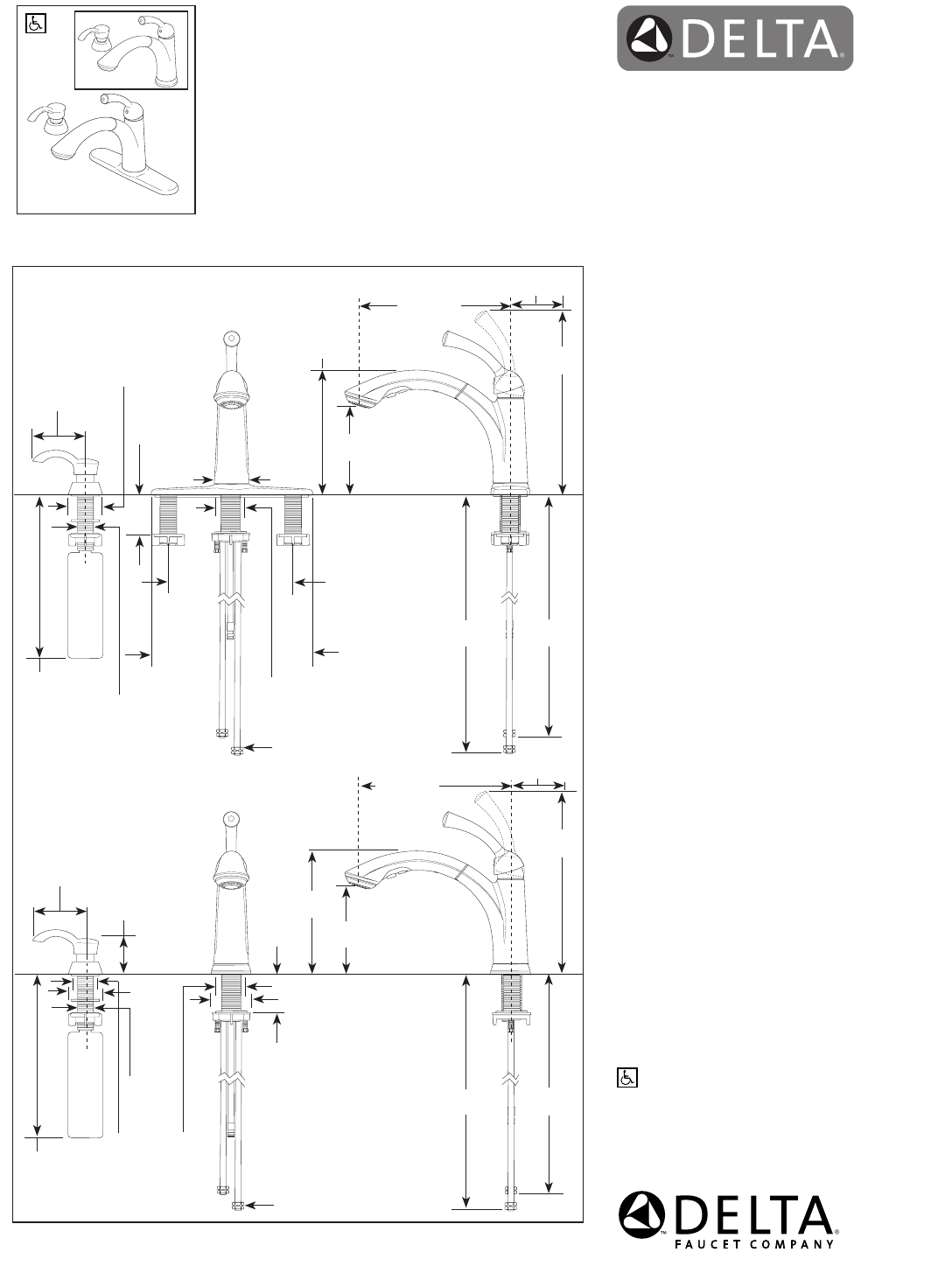

8"
(203 mm)
Centers
35"
(889 mm)
36"
(914 mm)
9 25/32"
(248 mm)
10 27/64"
(265 mm)
12 3/16"
(309 mm)
1 11/16"
(43 mm)
3/8" Compression Fitting
8"
(203 mm)
5 7/8"
(149 mm)
10 1/2"
(267 mm)
2 1/2"
(64 mm)
Max. Deck
Thickness
1 1/16"
(27 mm)
3 1/2"
(89 mm)
35"
(889 mm)
36"
(914 mm)
3/8" Compression Fitting
9 25/32"
(248 mm)
12 3/16"
(309 mm)
8"
(203 mm)
5 7/8"
(149 mm)
2 1/2"
(64 mm)
Dia.
2 1/2"
(64 mm)
Max. Deck
Thickness
10 27/64"
(265 mm)
1 1/16"
(27 mm)
3 1/2"
(89 mm)
2 1/4"
(57 mm)
2 1/4"
(57 mm)
2 7/8"
(73 mm)
▲ Designate Proper Finish Suffix
Min. 2 1/2" (64 mm)
Clearance to Back Splash
Min. 2 1/2" (64 mm)
Clearance to Back Splash
3x 1 5/16" - 1 1/2"
(33-38 mm)
Hole Size
1 5/16" - 1 1/2"
(33-38 mm)
Hole Size
