Specification

COMPLIES WITH:
• ASME A112.18.1 / CSA B125.
• Verified compliant with .25% weighted
average Pb content regulations.
specialty
FaUcets
■ Single Handle Deck Mount
■ Basin Faucet
■ Single Hole Sink Applications
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
STANDARD SPECIFICATIONS:
• Solid fabricated brass body.
• Can be used as hot or cold faucet.
• 4" (102 mm) long rigid spout.
• 1/4 turn handle stop.
• Control mechanism is the rotating cylinder type
with stainless steel plate and 90˚ rotation, with
replaceable non-metallic seats operating in stainless
steel lined sockets.
• All operating parts shall be replaceable from the top.
• 1/2"-14 NPSM threaded male inlet shanks.
• 2" (51 mm) diameter escutcheon.
• 1.5 gpm @ 60 psi.
DSP-S-2302LF Rev. B
1 1/8"
(29 mm)
Max. Deck
Thickness
0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
®
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.

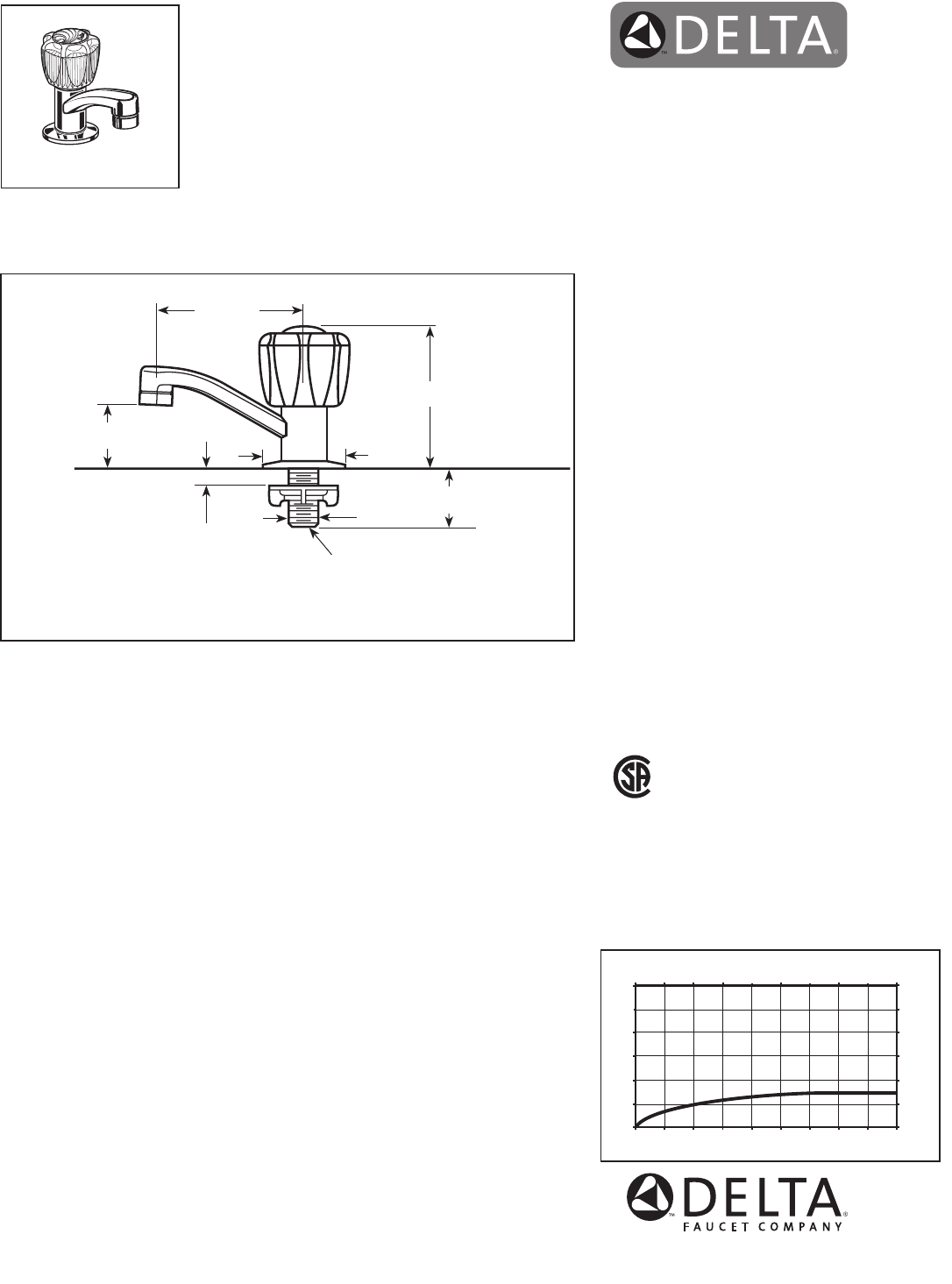

1 1/2"
(38 mm)
3 5/8"
(46 mm)
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
2"
(51 mm)
2302LF
4"
(102 mm)
1/2"-14 NPSM
WARRANTy
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
• 5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
13/16"
(21 mm)
Dia.
2"
(51 mm)
