Installation Instructions

ManualsBrandsDelta ManualsBathLahara Chrome 1-Handle Single Hole/4-in Centerset WaterSense Bathroom Sink Faucet (Drain Included)

2/2/12 Rev. D

SILICONE

Model/Modelo/Modèle

538-MPU-DST

Series/Series/Seria

Para instalación fácil de su llave Delta

usted necesitará:

sLEER TODAS las instrucciones completamente

antes de empezar.

sLEER TODOS los avisos, cuidados, e

información de mantenimiento.

For easy installation of your Delta

faucet you will need:

s4OREAD ALL the instructions completely

before beginning.

s4OREAD ALL warnings, care, and

maintenance information.

Write purchased model number here.

Escriba aquí el número del modelo comprado.

Inscrivez le numéro de modèle ici.

You may need/Usted puede necesitar/

Articles dont vous pouvez avoir besoin:

SILICONE

Pour installer votre robinet Delta

facilement, vous devez:

sLIRE TOUTES les instructions avant de débuter;

sLIRE TOUS les avertissements ainsi que toutes

les instructions de nettoyage et d’entretien;

SILIC

SINGLE HANDLE LAVATORY

CENTERSET FAUCETS

LLAVES MONOCONTROL DE MONTURA

DE CENTRO PARA LAVAMANOS

ROBINETS À ENTRAXE COURT À

UNE POIGNÉE

1/8"

60119

www.deltafaucet.com

Summary of content (12 pages)

PAGE 1
SINGLE HANDLE LAVATORY CENTERSET FAUCETS 60119 LLAVES MONOCONTROL DE MONTURA DE CENTRO PARA LAVAMANOS ROBINETS À ENTRAXE COURT À UNE POIGNÉE Model/Modelo/Modèle 538-MPU-DST Series/Series/Seria Write purchased model number here. Escriba aquí el número del modelo comprado. Inscrivez le numéro de modèle ici. You may need/Usted puede necesitar/ Articles dont vous pouvez avoir besoin: For easy installation of your Delta faucet you will need: s 4O READ ALL the instructions completely before beginning.
PAGE 2
LIFETIME FAUCET AND FINISH LIMITED WARRANTY All parts and finishes of the Delta® faucet are warranted to the original consumer purchaser to be free from defects in material & workmanship for as long as the original consumer purchaser owns their home. Delta Faucet Company recommends using a professional plumber for all installation & repair.
PAGE 3

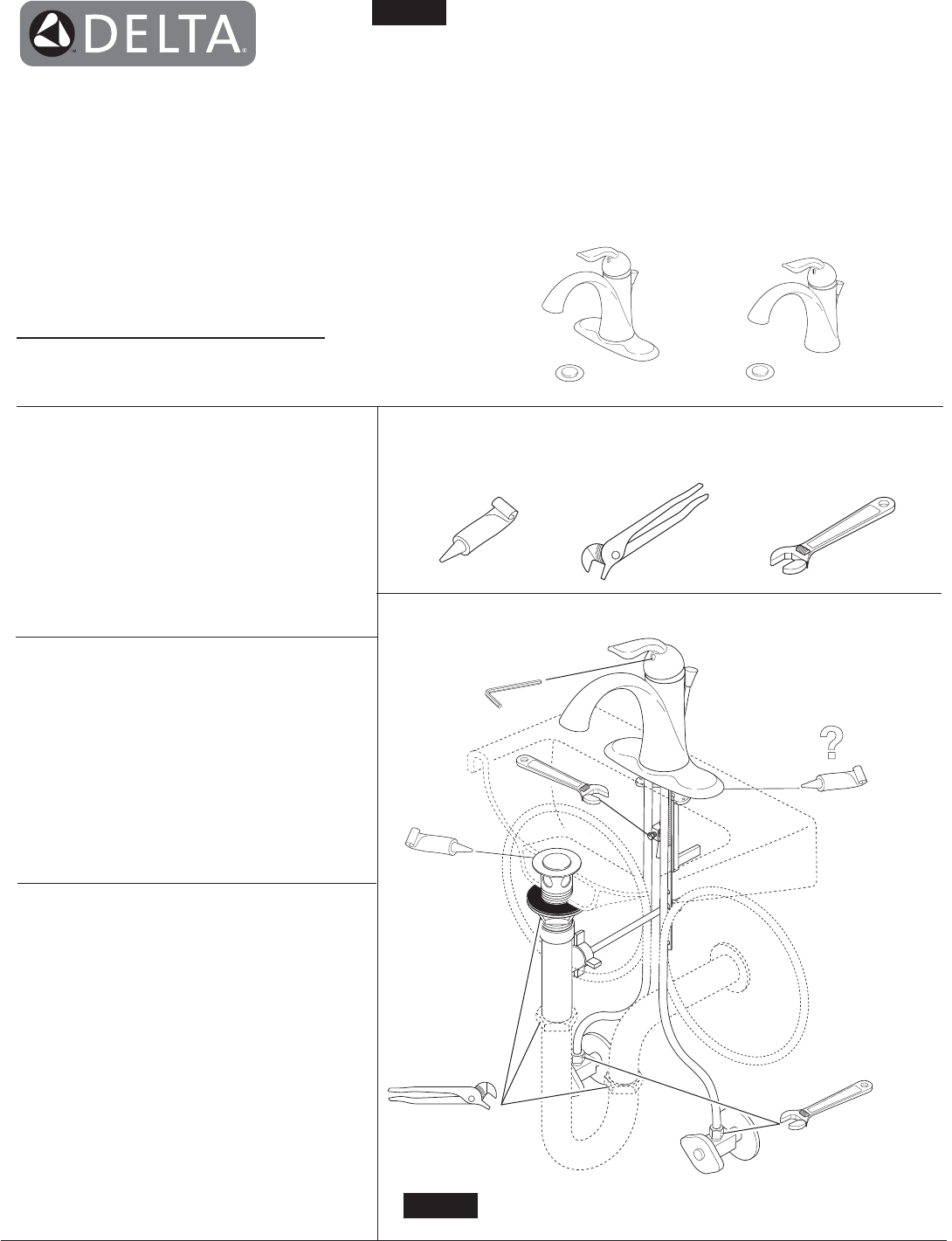

1 For Three Hole Mount Para Las Instalaciones De Tres Agujeros 1 Montage Sur Trois Trous For Single Hole Mount Para Las Instalaciones De Un Agujero Montage sur un trou A. A. 2 3 1 1 2 B. B. 4 5 3 4 5 6 For single hole mount: A. Slide single hole gasket (1) up over tubes and mounting stud. Position faucet (2) and gasket on sink. Option: If sink is uneven, use silicone under the gasket. For three hole mount: A. Slide escutcheon (1) and 3 hole gasket (2) up over tubes and mounting stud.
PAGE 4
2 A. B. OR 2 1 O 2 3 4 OU 3 2 1 1 2 4 A. Water Line Connections Ensure all fittings and end connections are free of debris. Faucet fittings (1) are 3/8" compression, with ends colored red for hot and blue for cold. Loop tubing (2) if it is too long. Note: Recommended tubing minimum bend diameter is 8". Secure metal nut (3) on faucet tube to supply valve connection (4) and hand tighten, then tighten one additional turn with wrench. DO NOT OVERTIGHTEN. Repeat for other tube.
PAGE 5
Incorrect Installation Instalación Incorrecta Installation Incorrecte Correct method Método Correcto Bonne méthode 2 3 1 4 Custom Fit Connections - Plastic Sleeve Installation Instructions 1. Identify desired length of tube (1). Leave 1" - 2" of extra length to allow for easier installation and cut tube. Ensure cut is straight and burr free. 2. Slide nut (2) and plastic sleeve (3) onto cut tube. Ensure sleeve is oriented as shown. 3. Insert tube into outlet ﬁtting (4).
PAGE 6
B. E. D. C. 1 SIL NE I CO 3 A. 1 2 3 2 3 2 1 1 1 F. G. 4 2 5 2 H. 4 3 2 5 1 2 1 3 2 1 6 Metal Pop-Up (Follow the instructions for the type of pop-up included with your model.) A. Remove stopper (1) and flange (2). B. Screw nut (1) all the way down. Push washer (2) and gasket (3) down. C. Remove tailpiece (1) from body (2), add plumber tape (3), replace tailpiece. D. Apply silicone to underside of flange (1). Insert body (2) into sink. Screw flange (1) into body (2). E.
PAGE 7
4 3 1 2 2 4 4 Remove aerator (1) using supplied wrench (2) and turn faucet handle (3) to the full on mixed position. Turn on hot and cold water supplies (4) and flush water lines for one minute. Important: This flushes away any debris that could cause damage to internal parts. Reinstall aerator with wrench. Note: For future use, aerator wrench (2) can be clipped to the supply line after flushing faucet. Check all connections at arrows for leaks. Retighten if necessary, but do not overtighten.
PAGE 8
5 1 2 Setting The Handle Limit Stop (Optional) This faucet includes an integrated handle limit stop that has two positions. Position 1, to the left, allows full handle motion (the full range between “all cold” to “all hot”). The faucet is set in position 1 in the factory. Position 2, to the right, allows half of the normal handle motion (“all cold” to “mixed hot/cold”). The handle limit stop can be adjusted by the homeowner once the faucet is installed.
PAGE 9
5 4 3 1 2 Cleaning and Care Maintenance If faucet exhibits very low flow: A. Remove and clean aerator (1) with supplied wrench (2), or B. SHUT OFF WATER SUPPLIES. Replace valve cartridge (3). When reinstalling parts, make sure bonnet nut (4) is tightened securely with a wrench.* If faucet leaks from under handle: Remove handle and unthread trim cap (5). Using a wrench, ensure bonnet nut (4) is tight. If leak persists–SHUT OFF WATER SUPPLIES. Replace valve cartridge (3).
PAGE 10
RP40650 Set Screw Tornillo de Ajuste Vis de calage RP51343 Red/Blue Button Botón–Rojo/Azul Bouton–Rouge/Bleu RP51342▲ Handle, Red/Blue Button & Set Screw Manija, Botón Rojo/Azul y Tornillo de Ajuste Manette, Bouton Rouge/Bleu et Vis de Calage RP51502▲ Cap Casquillo Embase RP51503 Bonnet Bonete Chapeau ▲Specify Finish Especifíque el Acabado Précisez le Fini RP50587 Valve Assembly Ensamble de la válvula Soupape RP54971▲ Lift Rod & Finial Barra de Alzar y Pomo Tige de Manoeuvre et Grain de la Tirette RP52
PAGE 11
RP26533▲ Metal Pop-Up Assembly Less Lift Rod Ensamble de Metal del Desagüe Automático Menos la Barra de Alzar Renvoi Mécanique en Métal Sans la Tige de Manoeuvre RP5648▲ Stopper Tapón Bonde RP12516 Strap & Screw Barra Chata y Tornillo Feuillard et Vis RP23060▲ Flange Reborde Collerette RP6142 Gasket Empaque Joint RP6140 Nut & Washer Tuerca y Arandela/ Roldana Écrou et Rondelle RP6132 Nut Tuerca Écrou RP12517 Horizontal Rod & Clip Barra Horizontal y Gancho Tige Horizontale et Agrafe RP6130 Pivot Seat & Gas
PAGE 12
60119 Rev.
