Electronic Lavatory Faucets
n Innovations
®
Electronic Faucet
n Deck Mount
n Single and 3 Hole Sink Applications
n Electronic Battery Operated
n Convertible to Hardwire Operation
Submitted Model No.: ______________________________________________
Specific Features: _________________________________________________
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.2 / CSA/B125.2
•
Indicates compliance to
ICC/ANSI A117.1
• Patented
• Verified compliant with .25% weighted average
Pb content regulations.
0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
OPTIONAL
STANDARD
2 3/8"
(61 mm)
1 5/8"
to 2 3/8"
(42 mm
to
61 mm)
5 1/4"
(134 mm)
1" Dia. (26 mm)
2 1/16"
(53 mm)
Dia.
1 1/4"
(32 mm)
Dia.
590LF Series
591LF Series
2 1/2"
(64 mm)
2 13/16"
(72 mm)
7"
(178 mm)
4"
(102 mm)
Centers
10"
(254 mm)
Max.
1 3/8"
(35 mm)
Dia.
3 1/4"
(83 mm)
2 7/8"
(73 mm)
1" (26 mm)
Max. Deck
Thickness
1" Dia. (26 mm)
1 1/2"
(38 mm)
Max. Deck
Thickness
2"
(51 mm)
4"
(102 mm)
Max.
5 3/4"
(146 mm)
5 1/2"
(139 mm)
5 1/2"
(139 mm)
590LF-
HGMHDF
591LF-
HGMHDF
590LF-
LGHGMHDF
591LF-
LGHGMHDF
8"
(204 mm)
060683A
061047A
061298A

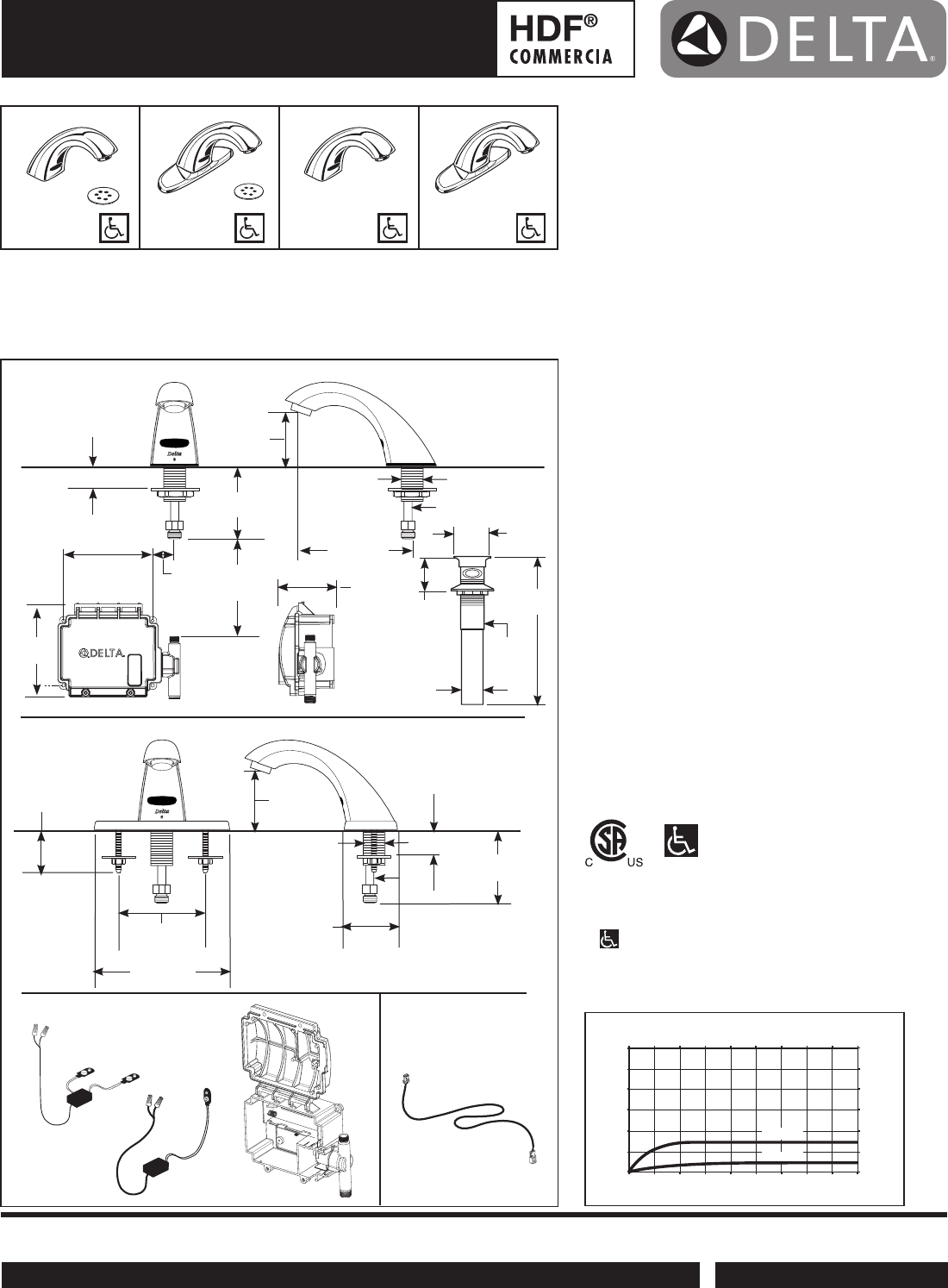

STANDARD SPECIFICATIONS:
• Hands free (touchless) on/off activation.
• H
2
Optics
®
technology. No external adjustments required.
• All metal faucet construction.
• No lift rod hole.
• 0.5 gpm (1.9 L/min) vandal resistant laminar outlet.
• 1.5 gpm (5.94 L/min) vandal resistant spray outlet
available (RP31705).
• Powered by 4 “C” batteries.
• Low battery audible beep will activate after faucet shuts
off when approximately 1500 cycles remain.
• Operates with a 45 second maximum run time.
Will reset once obstruction is removed.
• Serviceable filter screen upstream of the valve.
• Model 591LF Series – 4" (102 mm) centers.
2 1/2" x 7" (64 mm x 178 mm) forged coverplate
with locking mechanism (anti-rotation).
• Model 590LF Series – Center mount. Single hole
installation.
• Convertible to Hardwire using standard transformer
(120VAC to 24VAC) and Delta converter (24VAC to
6.4VDC) (060683A).
• Convertible to Hardwire with Battery Backup using
standard transformer (120VAC to 24VAC) and
Delta converter (24VAC to 6.4VDC) (061047A).
(See DSP-BB for detailed specification).
• Optional 24" Extension Cable (061298A).
• Optional 8" Coverplate for field conversion (RP34280).
NOTE 1: For optimum performance of this product, we
recommend a system pressure between 20 and 80 PSI static.
This product will operate up to a maximum of 125 PSI static per
ANSI and CSA requirements. However, we do not recommend
pressures above 80 PSI. Thermal expansion or leaking pressure
reducing valves may require use of expansion tanks or relief
valves to ensure your system never exceeds its maximum
intended pressure setting.
NOTE 2: Designed for routine 171º F (77ºC) disinfection cycles
up to 30 minutes.
®
3 1/2"
(89 mm)
