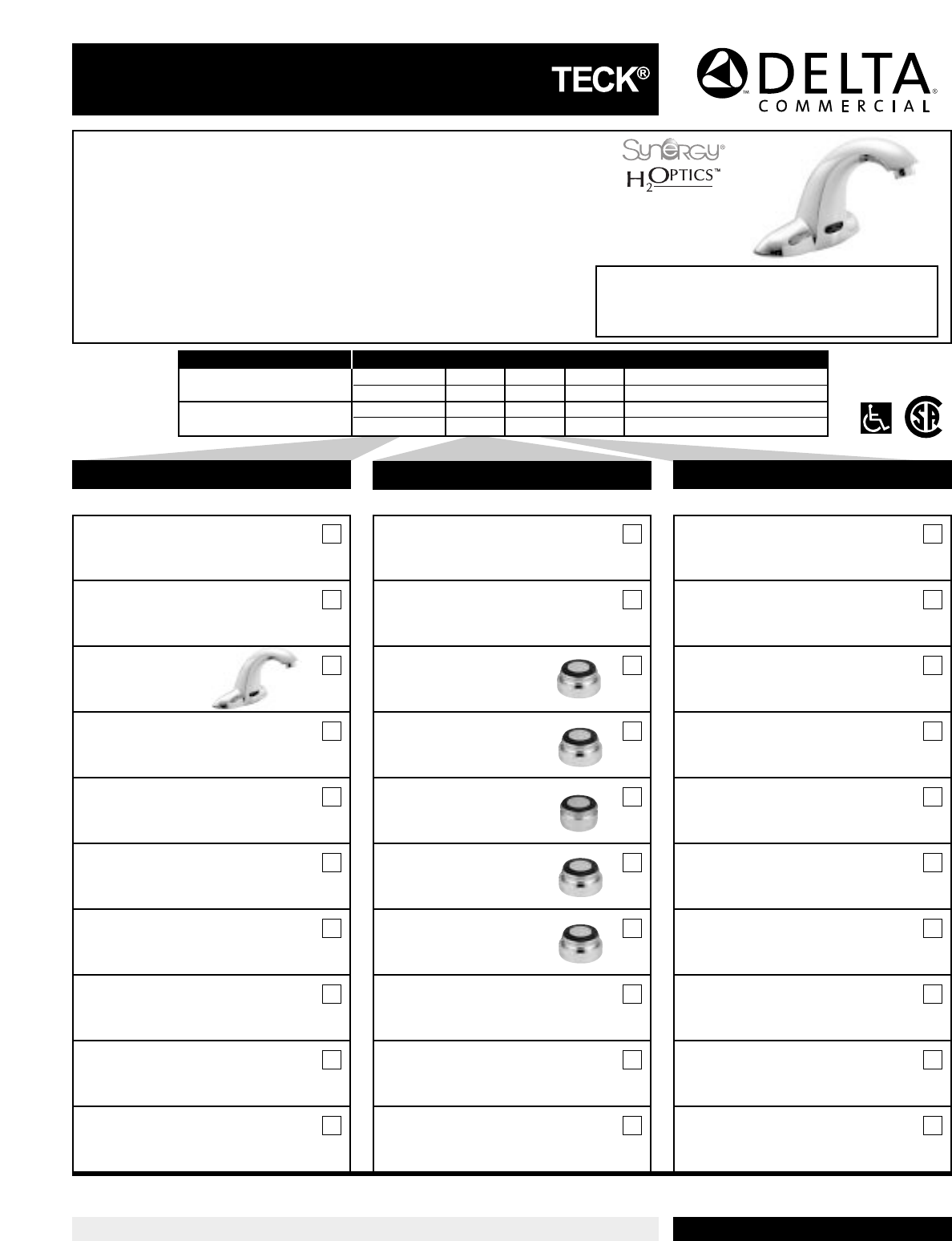

Electronic Faucet - 591T Series

4" Cast Lavatory

Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation.

Dimensions are for reference only

. See current full-line price book or www

.specselect.com for finish options and product availability

Page 5.C.3

* Mixing Valve supplied by others. Flowrates are at 60 PSI.

(1) With Thermostatic Limit Stop.

Refer to www.specselect.com for individual models. Note: Use this page front and back, with specification drawing page referenced above, as product submittal sheets.

Engineer/Architect Approval

Model Specified:

Approval: Date:

pecification: (example)

• 102mm (4") electronic faucet

•

CAST one-piece body with integral

aterproof sensor and connector

• Polished chrome plated trim

•

Battery (4 ‘C’ cell) or Hardwire

(24VAC) infrared electronic handwash

•

OPTICS

™

technology – no external

adjustments required

• Adjustable sensing range and timeout

• Audible low battery indicator

91T1250

000

222

111

333

555

777

999

444

666

888

Base Model with

Surface Mount Housing*

SEE Specification Drawing #1

For RECESSED MOUNTING

Components ASSEMBLED

in 10" Box w/S/S Cover. *

SEE Specification Drawing #2

4" CAST

Lavatory Spout

Vandal Resistant

0.5 USGPM (1.9 L/min)

Flow Control Non-

Aerating Spray Outlet

Vandal Resistant

1.0 USGPM (3.8 L/min)

Flow Control Non-

Aerating Spray Outlet

For RECESSED MOUNTING

Components & Thermostatic Mixing Valve

ASSEMBLED in 10" Box w/S/S Cover.

SEE Specification Drawing #4

For RECESSED MOUNTING

Components & Mechanical Mixing Valve (1)

ASSEMBLED in 10" Box w/S/S Cover.

SEE Specification Drawing #3

✔✔✔

• Serviceable filter screen upstream of

the valve

• Metal hold-down package

• Tempered water supplied to solenoid

valve, (except control box options

o. 0 and 1)

and...

with... (specify battery or hardwire)

with... (add outlet required)

with... (add control box required)

with... (transformer - specify separately

- See Back Page)

SPOUT & SENSOR

OUTLET

CONTROL BOX

Hardwire 591T02 For Chrome

591T02

–

SS For Brilliance

Stainless Steel

Battery Operated 591T12 For Chrome

591T12

–

SS For Brilliance

Stainless Steel

ESCRIPTION PRODUCT NO.

✔

Vandal Resistant

1.5 USGPM (5.7 L/min.)

Laminar w/Agion

Antimicrobial

Vandal Resistant

1.5 USGPM (5.7 L/min.)

Flow Control Aerator

Standard

1.5 USGPM (5.7 L/min.)

Flow Control Aerator

Summary of content (6 pages)

PAGE 1
Electronic Faucet - 591T Series 4" Cast Lavatory Specification: (example) • 102mm (4") electronic faucet • CAST one-piece body with integral waterproof sensor and connector • Polished chrome plated trim • Battery (4 ‘C’ cell) or Hardwire (24VAC) infrared electronic handwash • H2OPTICS™ technology – no external adjustments required • Adjustable sensing range and timeout • Audible low battery indicator • Serviceable filter screen upstream of the valve • Metal hold-down package • Tempered water supplied to s
PAGE 2
Electronic Faucet - 591T Series 4" Cast Lavatory Approvals: • CSA certified • Complies to ASME A112.18.1 • ADA Compliant and meets Handicapped Accessibility Standard ASME A117.1 of less than 5 lbs. handle operating force. • IAPMO listed • Control Box Option 6 Mechanical Mixing Valve CSA certified • Control Box Option 8 Thermostatic Mixing Valve CSA certified and meets ASSE 1016 and ASSE 1017 (Contact Delta Representative for State and/or Local Approvals.) U.S.
PAGE 3
Specification Drawing #1 BASE MODEL – SURFACE MOUNT 591T SERIES ✔ PRODUCT NO. 591T 591T 0 1 2 2 VALVE TYPE 0 0 Deckmount Cast Lavatory Hardwire Deckmount Cast Lavatory Battery COVER Surface Mounted Surface Mounted 591T SERIES 36mm (1.43") Battery Operated box shown. Hardwire Version comes complete with Watertight Connector and Hardwire Converter 24VAC to 6VDC. VANDAL PROOF SURFACE MOUNT CONTROL HOUSING 146mm (5.73") Recommended 381mm (15" max.) to top of counter 1/8" Allen Screw 139mm (5.
PAGE 4
Specification Drawing #2 TEMPERED WATER - ASSEMBLED CONTROL BOX 591T SERIES ✔ PRODUCT NO. FAUCET TYPE MOUNT TYPE *591T 0 2 1 Deckmount Cast Lavatory Hardwire Recessed Mount *591T 1 2 1 Deckmount Cast Lavatory Battery Recessed Mount *This product is supplied with Flexible Sensor Cord Conduit on Recessed Mount Installations. COVER 305mm (12") 305mm (12") Stainless Steel Stainless Steel 591T SERIES Battery Operated box shown.
PAGE 5
Specification Drawing #3 MECHANICAL MIXING VALVE ASSEMBLED CONTROL BOX 591T SERIES ✔ PRODUCT NO. FAUCET TYPE MOUNT TYPE *591T 0 2 6 Deckmount Handwash Hardwire Recessed Mount *591T 1 2 6 Deckmount Handwash Battery Recessed Mount *This product is supplied with Flexible Sensor Cord Conduit on Recessed Mount Installations. COVER 305mm (12") 305mm (12") Stainless Steel Stainless Steel 591T SERIES Battery Operated box shown.
PAGE 6
Specification Drawing #4 THERMOSTATIC MIXING VALVE ASSEMBLED CONTROL BOX 591T SERIES ✔ PRODUCT NO. FAUCET TYPE MOUNT TYPE *591T 0 2 8 Deckmount Handwash Hardwire Recessed Mount *591T 1 2 8 Deckmount Handwash Battery Recessed Mount *This product is supplied with Flexible Sensor Cord Conduit on Recessed Mount Installations. COVER 305mm (12") 305mm (12") Stainless Steel Stainless Steel 591T SERIES Battery Operated box shown.
