Use and Care Guide

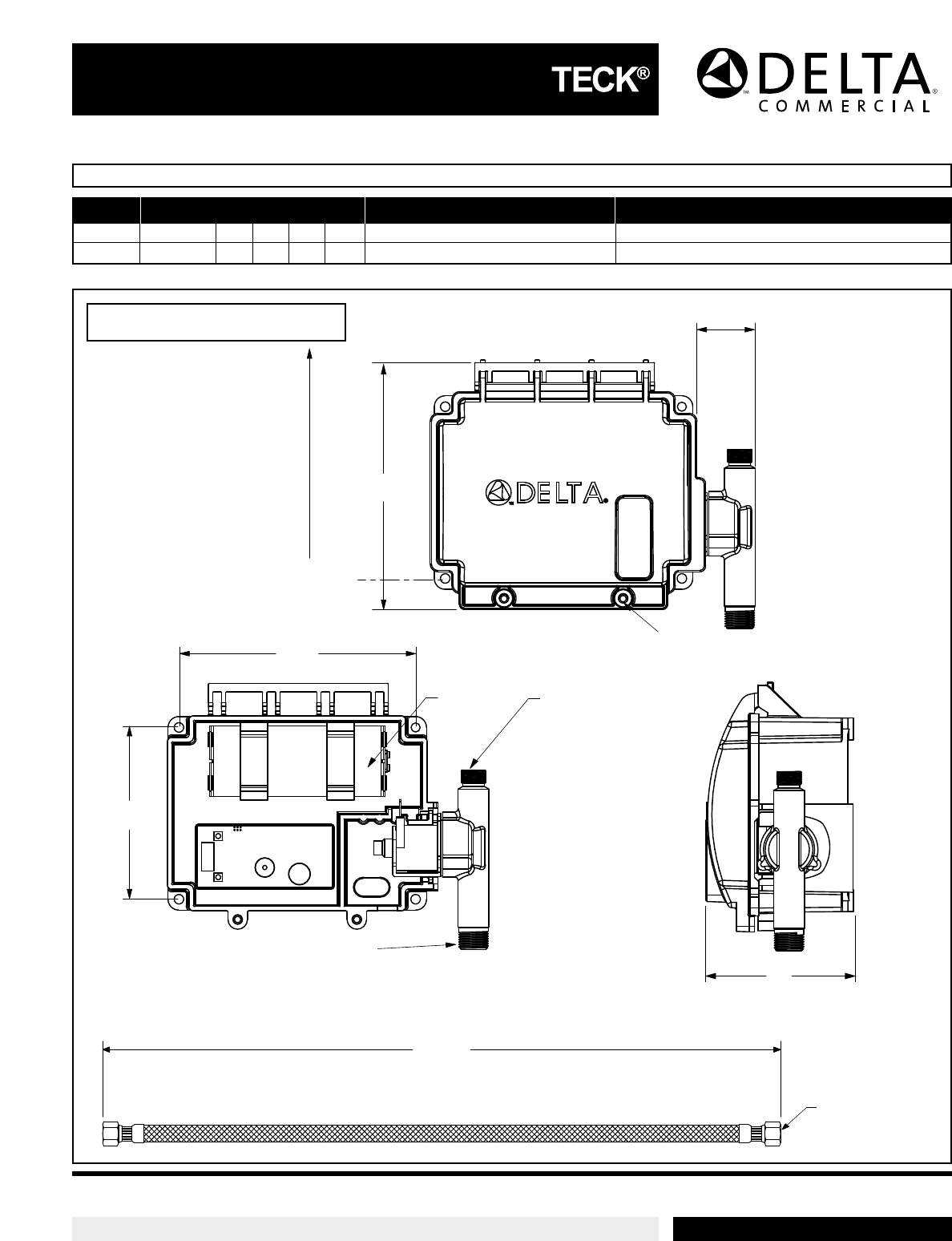

Specification Drawing #1
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation.
Dimensions are for reference only
. See current full-line price book or www
.specselect.com for finish options and product availability
.
Page 5.C.9
Note: Measurements may vary ± 6mm (0.25'')
146mm
(5.73")
Recommended
381mm (15" max.)
to top of counter
36mm
(1.43")
1/8" Allen Screw
89mm
(3.5") MAX.
591T SERIES
BASE MODEL – SURFACE MOUNT
591T SERIES
✔
PRODUCT NO. VALVE TYPE COVER
591T 0 2 0 Deckmount Cast Lavatory Hardwire Surface Mounted
591T 1 2 0 Deckmount Cast Lavatory Battery Surface Mounted
508mm
(20")
3/8" COMPRESSION
FITTING BOTH ENDS
P
S/S HOSE
Note:
Stainless Steel hose connection supplied
between Solenoid Valve and Spout
139mm
(5.47")
100mm
(3.96")
Inlet 3/8" NPT
or 3/8" Compression
Adaptor (Supplied)
Battery
Pack
3/8" Compression
Connection
Outlet
V
ANDAL PROOF
SURFACE MOUNT
CONTROL HOUSING
Battery Operated box shown.
Hardwire Version comes
complete with Watertight
Connector and Hardwire
Converter 24VAC to 6VDC.
