Specification Drawing #3
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation.
Dimensions are for reference only
. See current full-line price book or www
.specselect.com for finish options and product availability
.
Page 5.C.10
Note: Measurements may vary ± 6mm (0.25'')

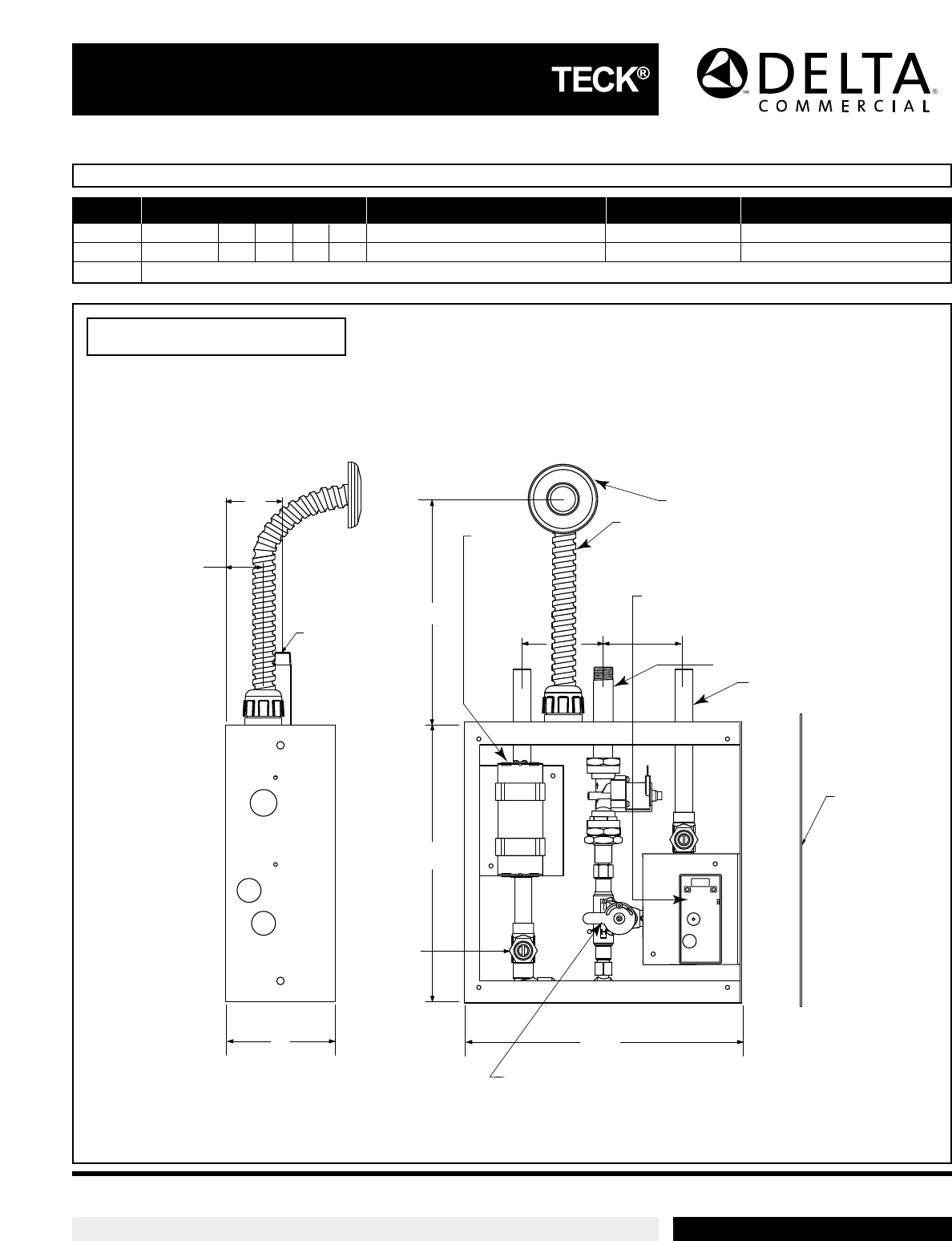

MECHANICAL MIXING VALVE ASSEMBLED CONTROL BOX
203mm
(8.0")
53mm
(2.07")
257mm
(10.13")
Outlet 3/8" M.I.P.
Outlet: 3/8" M.I.P.
70mm (2.75") Diameter
102mm
(4.0")
35mm
(1.38")
M
Driver board
to be located
on this bracket
Bracket
and
battery
holder not
required
for
hardwire
models
F
lexible Sensor
C
ord Conduit
(
Supplied
o
n recessed
m
ount box)
254mm
(10.0")
74mm
(2.9")
74mm
(2.9")
Inlets
1/2" Copper
Mechanical Mixing Valve
with Checks and Thermostatic Limit Stop
Screwdriver
Stop
305mm
(12.0")
Stainless
Steel
Cover
591T SERIES
591T SERIES
✔
PRODUCT NO. FAUCET TYPE MOUNT TYPE COVER
*591T 0 2 6 Deckmount Handwash Hardwire Recessed Mount 305mm (12") Stainless Steel
*591T 1 2 6 Deckmount Handwash Battery Recessed Mount 305mm (12") Stainless Steel
*
This product is supplied with Flexible Sensor Cord Conduit on Recessed Mount Installations.
Battery Operated box shown.
Hardwire Version comes
complete with Watertight
Connector and Hardwire
Converter 24VAC to 6VDC.
