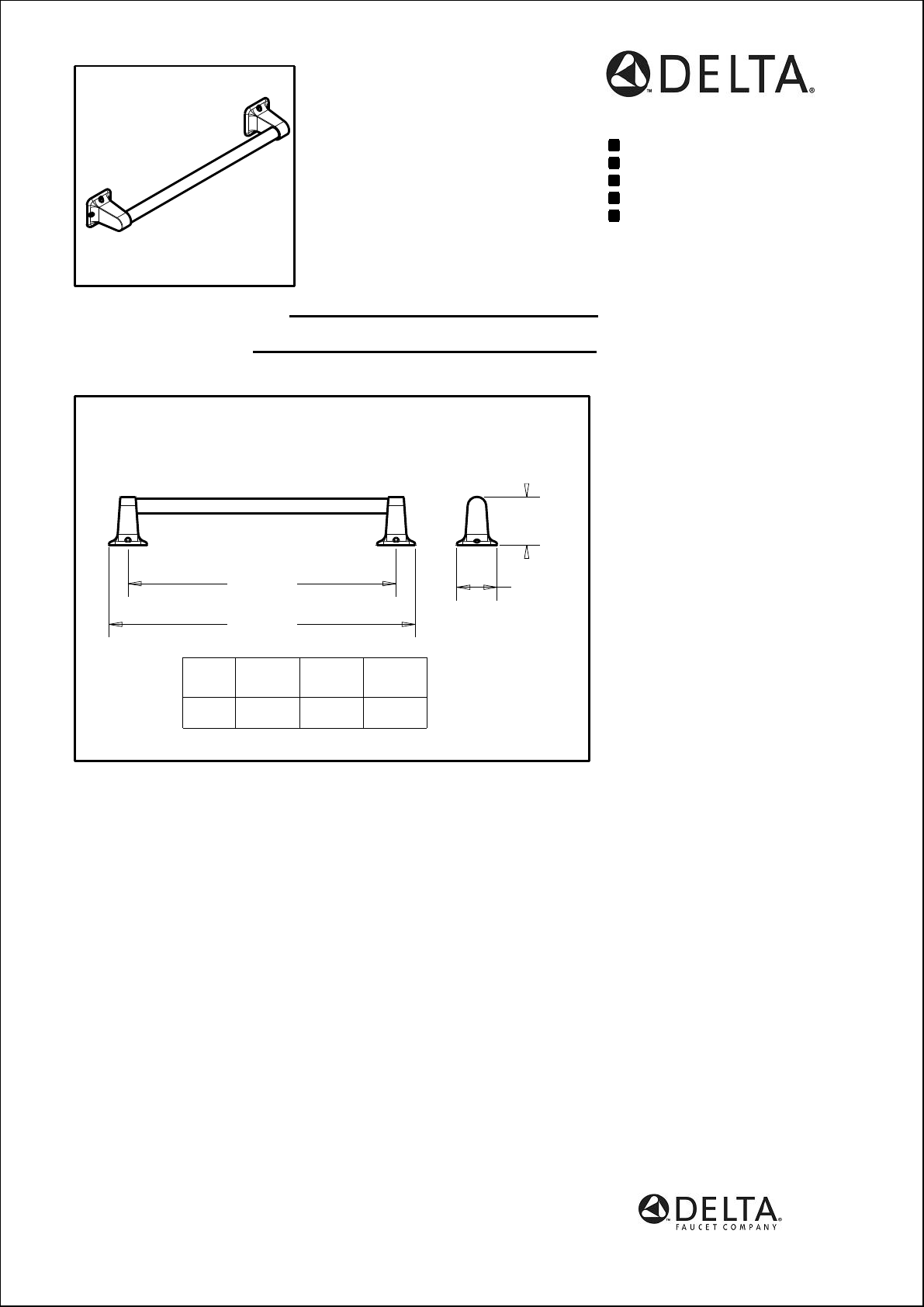

Technical Specifications

ManualsBrandsDelta ManualsBath9" x 7/8" White Exposed Screw Grab Bar

Submitted Model No.:

Specific Features:

Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue

models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or

www.deltafaucet.com for finish options and product availability.

55 E. 111th Street, Indianapolis, Indiana 46280

350 South Edgeware Road, St. Thomas, ON N5P 4L1

18 5/16"

(465 mm)

(406 mm)

2 3/8"

(61 mm)

2 7/8"

(73 mm)

From wall

SERIES

NO.

(229 mm)

16"

(406 mm)

24"

(610 mm)

500 DF509 DF516 DF524

ACCESSORIES

500 Series™ Bath Safety Collection

Meets ADA Standards

9" Assist Bar

16" Assist Bar

24" Assist Bar

STANDARD SPECIFICATIONS:

•Wood blocking is preferable behind all wall

surfaces. If wood blocking is not available, the

supplied fasteners are recommended.

• Mounting hardware and mounting template

included with product.

• 7/8" diameter assist bar.

• Meets ADA load requirement when properly

installed.

• Maximum 300 lbs. as an assist bar on

indicated surface.

WARRANTY

• Lifetime Faucet and Finish Limited Warranty to the

original consumer purchaser to be free from defects

in material and workmanship.

• 5 Year Limited Warranty for usage in all industrial,

commercial and business applications.

TDS 14181 - Rev. A
