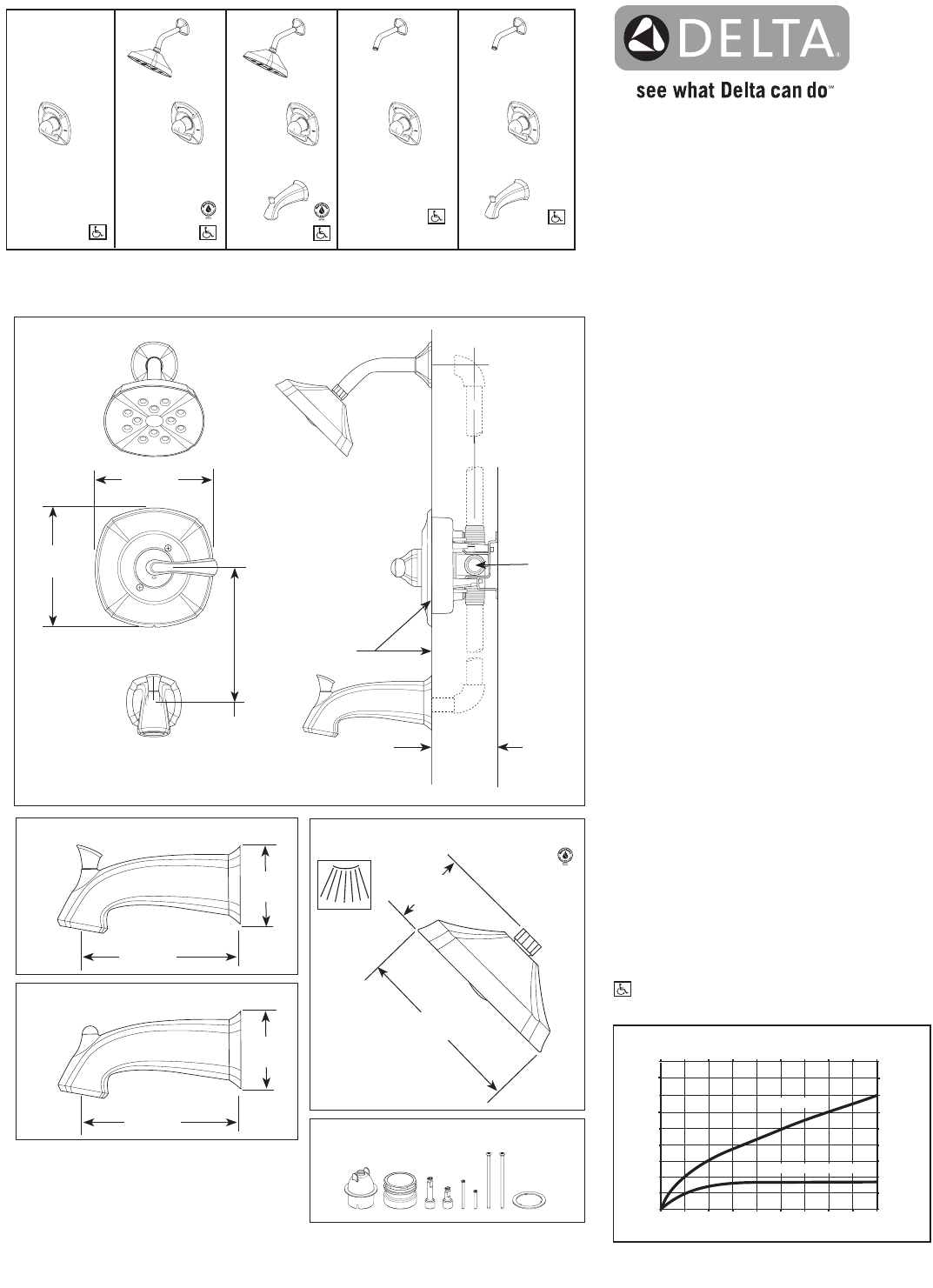

Dimensions Guide

Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
T14092▲ T14292▲
T14492▲
7"
(178 mm)
2 3/4"
(70 mm)
Face of plasterguard
should be flush with
finish wall line
Supply
8" (203 mm)
min.
18" (457 mm)
max.
TUB AND SHOWER
FAUCET TRIM
■ Addison™ Bath Collection
■ Valve Only (T14092)
■ Shower Only (T14292)
■ Tub/Shower (T14492)
STANDARD SPECIFICATIONS:
• Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
• For use with MultiChoice
®
Universal rough
valve body. (R10000 Series)
• Back-to-back installation capability.
• Solid brass forged body.
• Temperature only controlled with handle.
• Field adjustable to limit handle rotation into
hot water zone.
• 120° maximum handle rotation.
• All parts replaceable from the front of the valve.
• Maximum1.75 gpm max @ 80 psi,
6.6 L/min @ 550 kPa.
• "-LHD" models have pad printed red/blue
temperature indication less showerhead.
• Stem extension kit RP77991 can be ordered to
allow for an additional 1 3/4" wall thickness.
RP77991 ships with chrome escutcheon screws.
For special finishes also order RP12630 escutcheon
screws in desired finish.
Delta Faucet Company
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2017 Delta Faucet Company
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T14092 Rev. F
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• ASSE 1016
Indicates compliance to
ICC/ANSI A117.1 - Valve control only
• EPA WaterSense
®
▲ Designate Proper Finish Suffix
3 1/4"
(83 mm)
6 1/2"
(165 mm)
RP61269▲ (Pull-Up Diverter)
RP61265▲ H
2
O Kinetic Technology
®
Raincan
Showerhead
2 5/8"
(67 mm)
6"
(152 mm)
Full Spray
3 1/4"
(83 mm)
6 1/2"
(165 mm)
RP54863▲ (Non Diverter)
7"
(178 mm)
T14492-LHD
T14292-LHD
WARRANTY
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
• 5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
FEATURES:
• Monitor
®
14 Series pressure balanced single handle
bath mixing valve trim
• H
2
Okinetic
®
Technology showerhead
RP77991 Available Extension Kit
0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
1.75 GPM Showerhead
7
26.5
Tub Filler
30.3
34.1
8
9
