Operating Guide

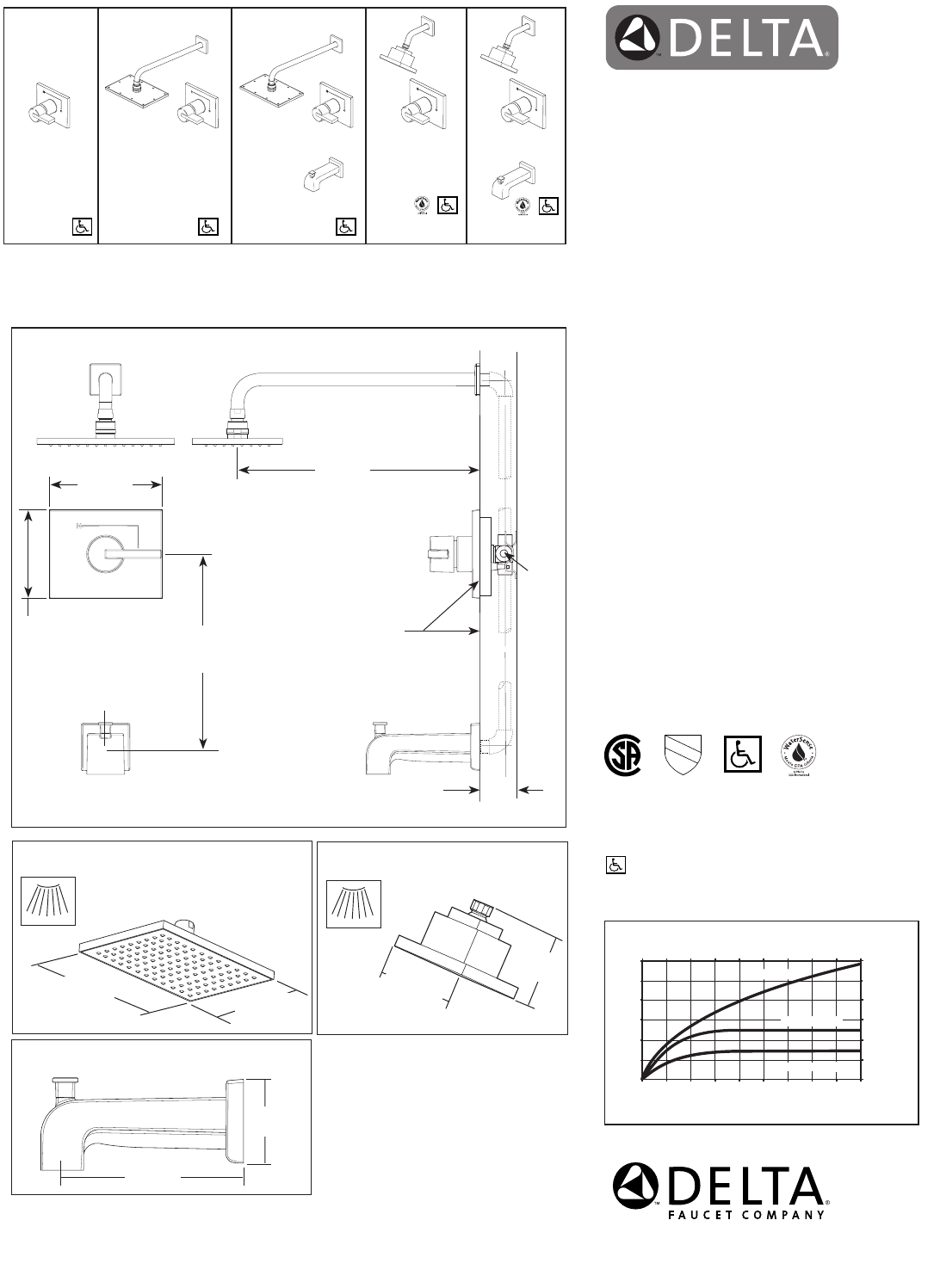

Dimensions
I.P.S. or C.W.T. 2 3/8" 5/8"
I.P.S. or C.W.T. with stops 5 5/16" 3/8"
A
B
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
T14053s
T14253s
T14453s
Tub AND SHOWER
FAuCET TRIM
■ Vero Series
■ Valve Only Trim (T14053)
■ Shower Only Trim (T14253)
■ Tub/Shower Trim - Pull-Up Tub Spout
(T14453)
■ Single Handle
0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
)etuniM reP snollaG .S.U( wolF
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
)et
uniM reP sretiL(
w
olF
Showerhead
Tub Filler
H2O Showerhead
®
®
U
P
C
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• ASSE 1016
Indicates compliance to
ICC/ANSI A117.1
• EPA WaterSense (H
2
O models only)
WARRANTY
• Lifetime Faucet and Finish Limited Warranty
to the original consumer purchaser to be free
from defects in material and workmanship.
• 5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
DSP-B-T14053 Re v . B
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
55 E. 111th Street, Indianapolis, IN 46280
395 Matheson Blvd. E., Mississauga, ON L4Z 2H2
© 2010 Masco Corporation of Indiana
RP62955s Touch-Clean
®
Raincan
Full Spray
s Designate Proper Finish Suffix
5 19/32"
(142 mm)
2 3/4"
(70 mm)
Face of plasterguard
should be flush with
finish wall line
Supply
8" (203 mm)
min.
18" (457 mm)
max.
15 9/32"
(388 mm)
7 3/32"
(180 mm)
5 45/64"
(145 mm)
8 21/32"
(220 mm)
3"
(76 mm)
6 1/2"
(165 mm)
RP53419s (Pull-Up Diverter)
T14253-sH2O
T14453-sH2O
STANDARD SPECIFICATIONS:
• Monitor
®
14 Series pressure balanced bath
mixing valve with Scald-Guard
®
.
• Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
• For use with MultiChoice
®
Universal rough
valve body. (R10000 Series)
• Lever handle.
• Field adjustable to limit handle rotation into
hot water zone.
• 120° maximum handle rotation.
• All parts replaceable from the front of the valve.
• Note: Product will be marked with flow rate of
specific showerhead.
RP51032s 1.5 GPM H
2
O Showerhead
Full Spray
3 1/4"
(83 mm)
4 1/16"
(104 mm)
Sq.
