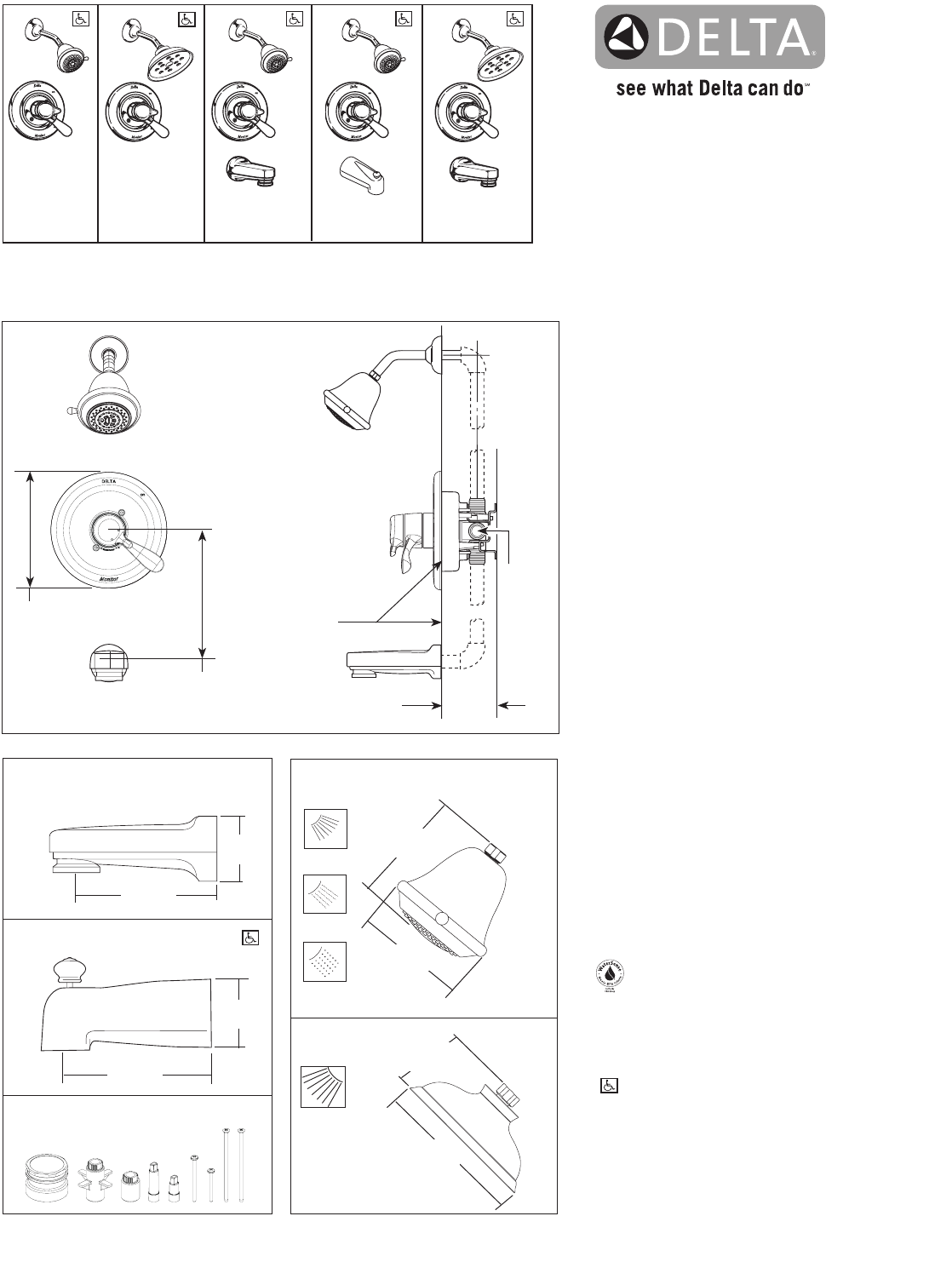

Specification

Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
STANDARD SPECIFICATIONS:
• Maintains a balanced pressure of hot and cold water even
when a valve is turned on or off elsewhere in the system
• For use with MultiChoice
®
Universal rough valve body
(R10000 Series)
• Back-to-back installation capability
• Solid brass forged body
• Red/Blue indicators on handle
• Lever volume control handle; temperature adjustment dial
• Field adjustable to limit handle rotation into hot water zone
• Maximum dial rotation adjustable between 90° and 180°
• All parts replaceable from the front of the valve
• Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• Tub port maximum flow rate 6.2 gpm @ 60 psi with
R10000-UNBX
• Shower arm overall horizontal length = 5 1/2" (138 mm),
including threaded end
• Models with "SOS" suffix supplied with slip-on spout for
1/2" C.W.T.
• MTS = Metal slip-on spout for 1/2" C.W.T.
• Note: Product will be marked with flow rate of specific
shower head
• Stem extension kit RP77992 can be ordered to allow for
an additional 1 3/4" wall thickness. RP77992 ships with
chrome escutcheon screws. For special finishes also
order RP12630 escutcheon screws in desired finish.
T17230▲
Face of plasterguard
should be flush with
finish wall line
Supply
TUB AND SHOWER
FAUCET TRIM
■ Classic Collection
■ Shower Only (T17230 Series)
■ Tub/Shower (T17430 Series)
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
8" (203 mm)
min.
18" (457 mm)
max.
Pull-Down Diverters
RP5836 (Non-Metal Slip-On)
RP17454▲ (Metal)
RP17453▲ (Non-Metal)
DSP-B-T17030 Rev. J
2 3/4" (70mm)
2 1/2"
(64 mm)
5 1/4"
(133 mm)
T17430▲
T17430-▲SOS
▲ Designate Proper Finish Suffix
T17230-▲H
2
O
T17430-▲H
2
O
Full Spray
6 13/32"
(162 mm)
3"
(76 mm)
RP70173▲ 1.75 GPM
H
2
O Shower Head
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• ASSE 1016
Indicates compliance to
ICC/ANSI A117.1 - Valve control only
• EPA WaterSense
®
RP43381▲ Touch-Clean
®
Raincan Shower Head
1.75 GPM
4 3/4"
(121 mm)
4 7/8"
(124 mm)
Full Body
Spray
Massaging
Spray
Soft Drench
Spray
7 1/2"
(191 mm)
2 5/8"
(67 mm)
5 1/8"
(130 mm)
RP41591▲ (Metal Slip-On Pull-Up
Diverter)
T17430-▲MTS
FEATURES:
• Monitor
®
17 Series pressure balanced bath mixing
valve trim
•
"-H2O" models include H
2
Okinetic
®
Technology shower head
RP77992 Available Extension Kit
Delta Faucet Company
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2018 Delta Faucet Company
SHOWER HEAD(S)
POMME(S) DE DOUCHE
CABEZA(S) DE REGADERA
WARRANTY
• Parts and Finish - Lifetime limited warranty; or for
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and
5 years for all other commercial uses, in each case
from the date of purchase.
• Electronic Parts and Batteries (if applicable) - 5
years from the date of purchase; or for commercial
purchasers, 1 year from the date of purchase. No
warranty is provided on batteries.
