Installation Sheet

Installation

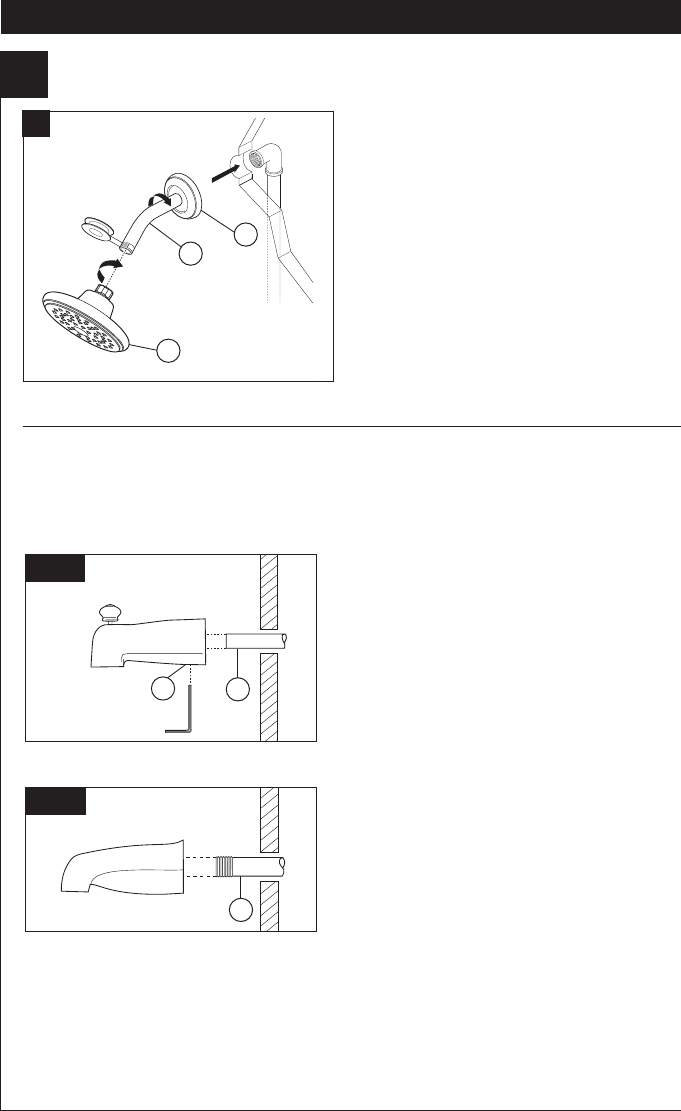

Showerhead and Tub Spout Installation

FOR TUB SPOUT INSTALLATION:

Refer to the installation instructions supplied with your spout. Do not connect deck mount spouts to in-wall

valves. Do not use hand showers connected in lieu of a tub spout to a tub/shower valve. Do not use PEX

tubing for tub spout drop.

Slip-On Installation

The copper tube (1) must be 1/2” nominal copper.

Important: If it is necessary to cut the copper tube,

the end must be chamfered free of burrs to prevent

cutting or nicking O-ring inside the spout. Slide

spout over copper tube ush with the nished tub

or wall surface. Tighten set screw (2), but do not

overtighten.

Iron Pipe Installation

Install threaded pipe nipple (1) to extend past

nished wall. Apply plumber tape to threads on

pipe nipple and screw on tub spout.

B-2

B-1

FOR SHOWERHEAD INSTALLATION:

Apply plumber tape to pipe threads on both ends

of the shower arm (1). To prevent damage to nish

on shower arm, insert wall end of shower arm into

shower ange (2) before screwing arm into riser

connection.

Thread showerhead (3) onto shower arm. Do not

overtighten showerhead.

68883 Rev. I
