Technical data

25
FITTING CLEARANCE

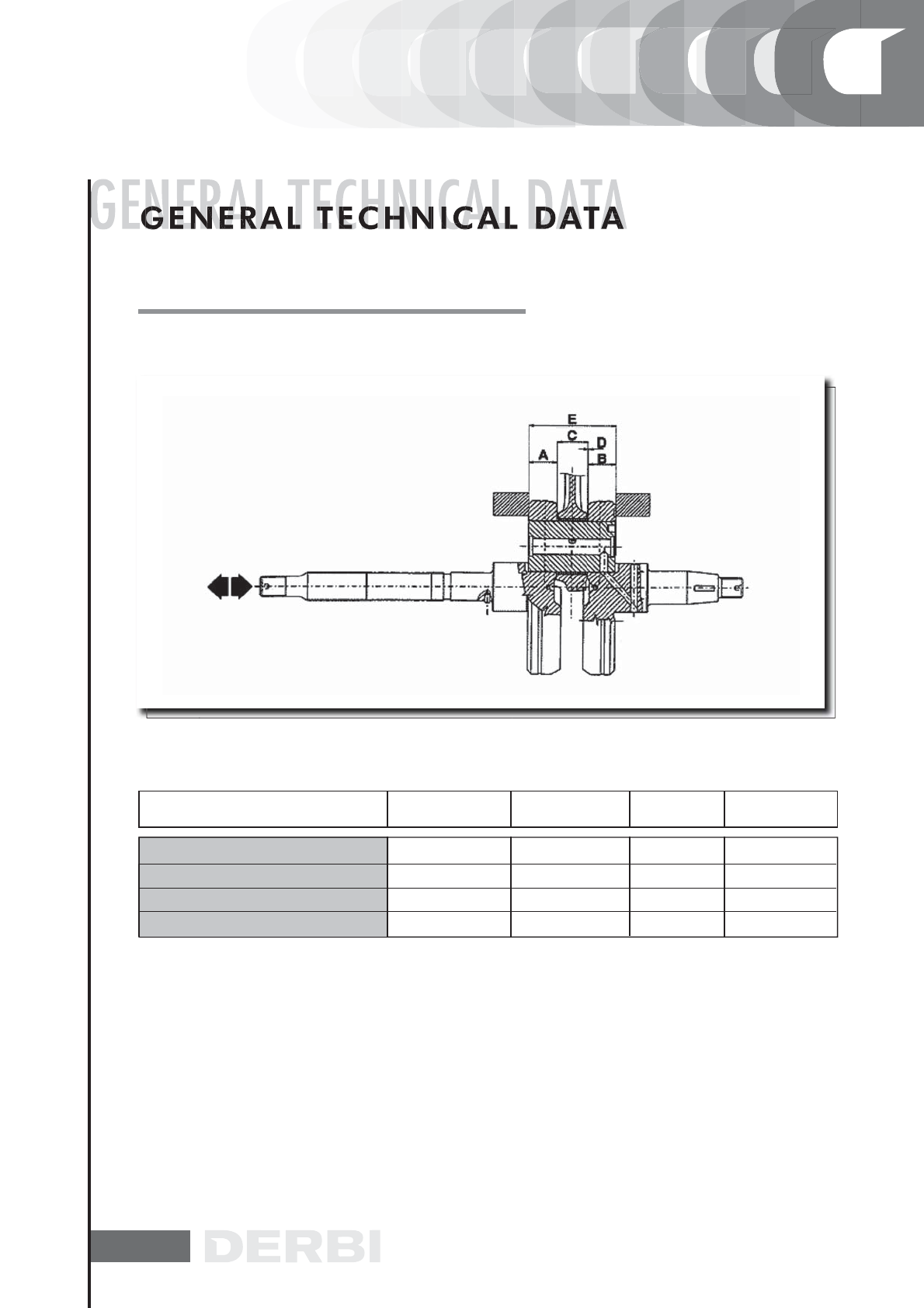

Driving shaft/case axial clearance: Standard clearance 0,15 ÷ 0,40mm (cold engine).
CARNCSHAFT - CRANKCASE AXIAL CLEARANCE/CARTER
NAME
DESCRIPTION DIMENSIONS INITIALS
A
B
C
D
D = 0,20 ÷ 0,50
D = 0,20 ÷ 0,50
D = 0,20 ÷ 0,50
D = 0,20 ÷ 0,50
QUANTITY
Half shaft transmission side
Half shaft flywheel side
Conecting rod
Spacing tool
16,6+0-0,05
16,6+0-0,05
18-0,10-0,15
51,4+0,05
