Technical data

SISTEMA DE MONTAJE DE ESPESORES

Características Técnicas

Relación de compresión versión 250

Re: 10,5-11,5

N.B.

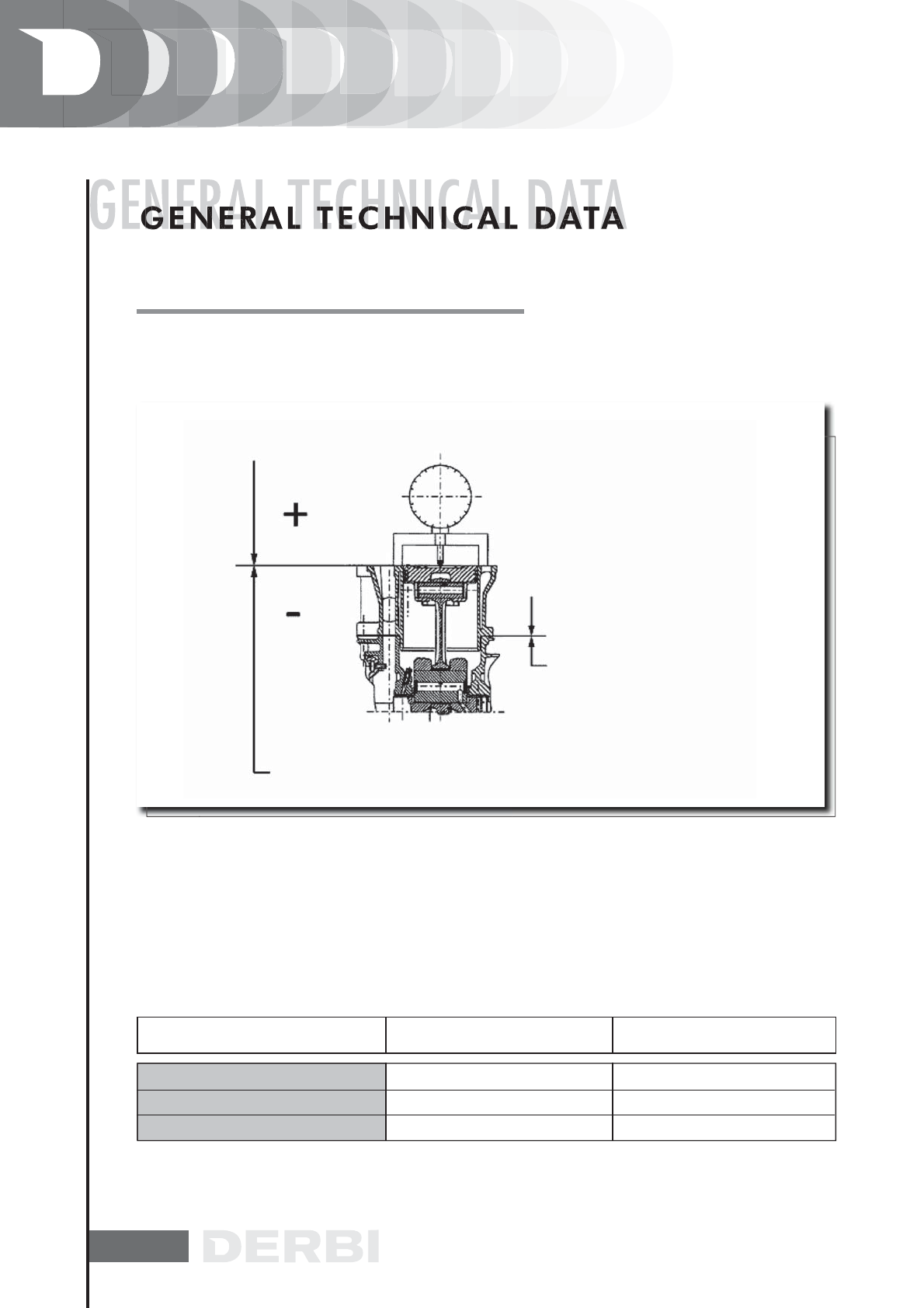

THE MEASURE «A» TO TAKE IS A PISTÓN PROTRUSION VALUÉ THAT INDICATES HOW MUCH THE PLAÑE

FORMED BY THE PISTÓN TOP PROTRUDES FROM THE PLAÑE FORMED BY THE TOP OF THE CYLINDER.

THE MORE THE PISTÓN PROTRUDES FROM THE CYLINDER, THE MORE THE BASE GASKET TO APPLY (TO

RECOVER THE COMPRESSION RATIO) AND VICE VERSA.

SHIMMING 250

NAME

MEASURE A THICKNESS

Shimming 250

0,4 ±0,05

0,6 ± 0,05

0,8 ± 0,05

2,60÷2,50

2,50÷2,30

2,30÷2,20

NOTE

MEASUREMENT (A) MUST BE TAKEN WITHOUT TRIM MOUNTED BETWEEN THE

CASING AND THE CYLINDER, AFTER HAVING PUT THE COMPARATOR TO ZERO,

WITH ITS SUPPORT, ON A FLAT PLANE.

NOTE

MOUNT ACCORDING TO THE

MEASUREMENT (A) OBTAINED

MEASUREMENT (A)

(WITH PISTON AT T.D.C.)
