Data Sheet

RB-Dfr-490

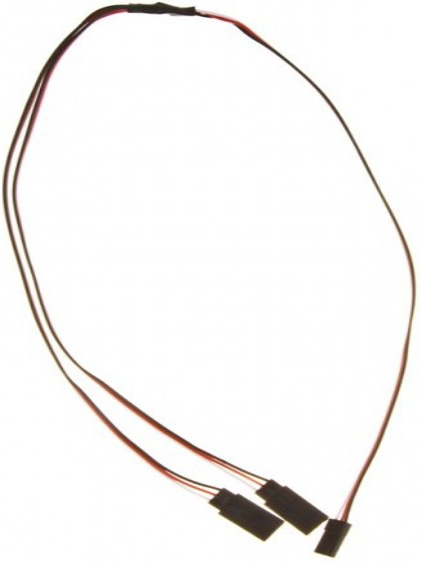

Servo Y Extension Cable - 500mm
This 500 mm Y-cable is typically used to connect two servos to a single servo port on an RC receiver or
servo controller. It has a single female JR connector connected to two male JR connectors, which
means it is compatible with almost all of the RC servos.The connectors have gold-flashed contacts on a
0.1" spacing.The split occurs near the midpoint of the cable,so the two male ends can be separated by
up to approximately 500mm.
• Black: GND
• Red: Servo power
• White: Signal
Application
• RC car, plane and helicopter servo connection or receiver connection
